Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP3T1B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
300 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B4VS2RESWITCH TOGGLE SPDT 0.4VA 20V |
240 |
|
Datasheet |
100 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS447G101HRSWITCH TOGGLE SPDT 16A 277V |
7,823 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 16A (AC) | 277 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
200USP9T1A1M2RESWITCH TOGGLE SPST 0.4VA 20V |
2,594 |
|
Datasheet |
200U | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.80mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B4M7QESWITCH TOGGLE SPDT 5A 120V |
314 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B1M6QESWITCH TOGGLE DPDT 5A 120V |
493 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS1T3B1M1QESWITCH TOGGLE SPDT 3A 120V |
383 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.37mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Process Sealed | -30°C ~ 85°C |
|
200MSP1T2B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
243 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B1M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
872 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T1-3A-D-K2SWITCH TOGGLE DPST 15A 125V |
112 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
100SP3T8B13M1QESWITCH TOGGLE SPDT 5A 120V |
291 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MDP3T1B1M1QEHSWITCH TOGGLE DPDT 3A 120V |
860 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP4T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
657 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
.jpg)
|
ST144D00SWITCH TOGGLE SPST-NO 20A 125V |
440 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPST-NO | 20A (AC) | 125 V | - | Off-Mom | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|

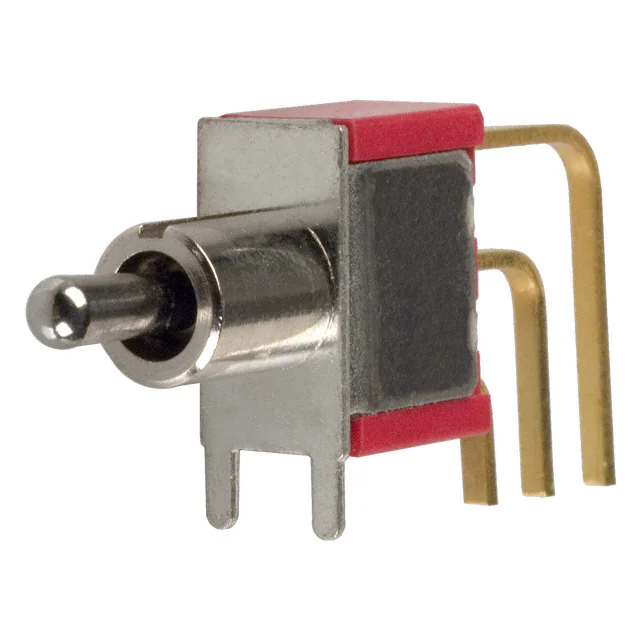

100SP3T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
357 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825138-7SWITCH TOGGLE DPDT 0.4VA 20V |
492 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MDP3T2B4M6QESWITCH TOGGLE DPDT 3A 120V |
1,717 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP5T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
597 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T6B11M1QEHSWITCH TOGGLE DPDT 5A 120V |
1,214 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T1-4B-B-K2ASWITCH TOGGLE DPDT 15A 125V |
130 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
