Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2M1-DP1-T6-B1-M1QESWITCH TOGGLE DPDT 5A 125V |
1,022 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Flatted | 12.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B23APSWITCH TOGGLE DPDT 0.4VA 28V |
1,067 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

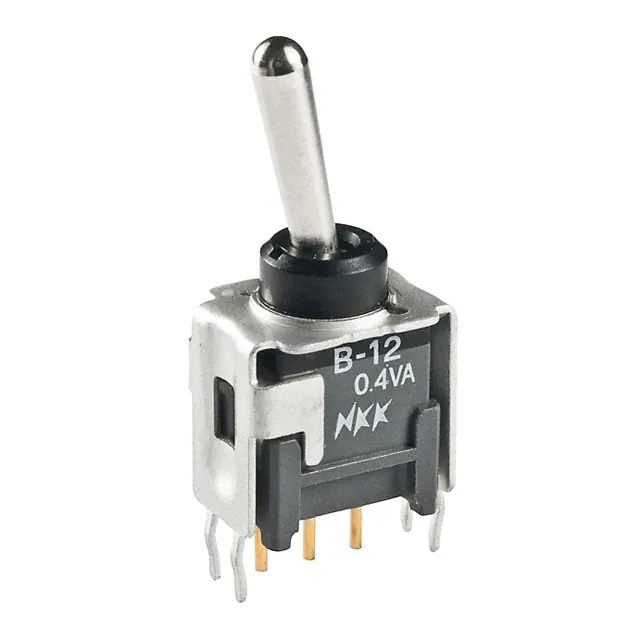

B12ABSWITCH TOGGLE SPDT 0.4VA 28V |
1,724 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

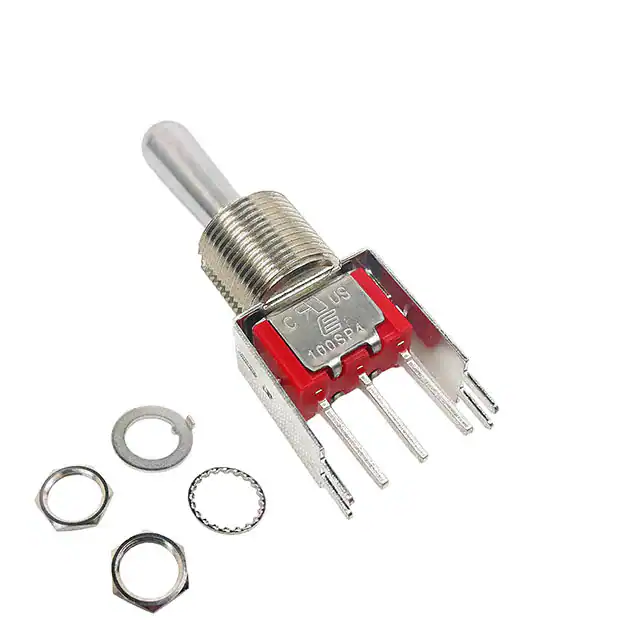

100SP4T8B13VS3QEHSWITCH TOGGLE SPDT 5A 120V |
1,682 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS448F301AHRSWITCH TOGGLE DPST 16A 250V |
1,058 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST | 16A (AC) | 250 V | - | On-Off | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
B12AHSWITCH TOGGLE SPDT 0.4VA 28V |
934 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP6T1B1M6QEHSWITCH TOGGLE SP3T 5A 120V |
433 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
B13ABSWITCH TOGGLE SPDT 0.4VA 28V |
1,347 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1-1825139-8SWITCH TOGGLE DPDT 5A 120V |
156 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A11APSWITCH TOGGLE SPST 0.4VA 28V |
286 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
100DP6K2B25M1QESWITCH TOGGLE SP3T 5A 120V |
398 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Locking Lever | 14.73mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
GTS448E101AHRSWITCH TOGGLE DPDT 12A 250V |
374 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448B101A1HRSWITCH TOGGLE DPDT 12A 250V |
871 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|

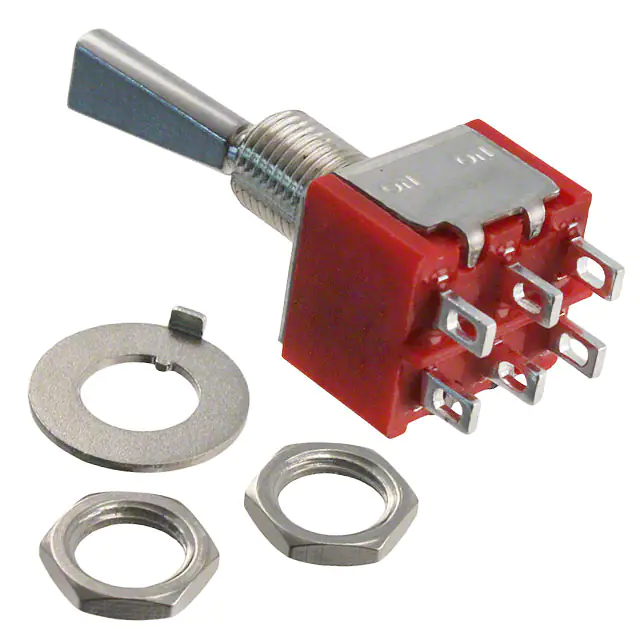

1-1825138-5SWITCH TOGGLE DPDT 5A 120V |
228 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B18ABSWITCH TOGGLE SPDT 0.4VA 28V |
550 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

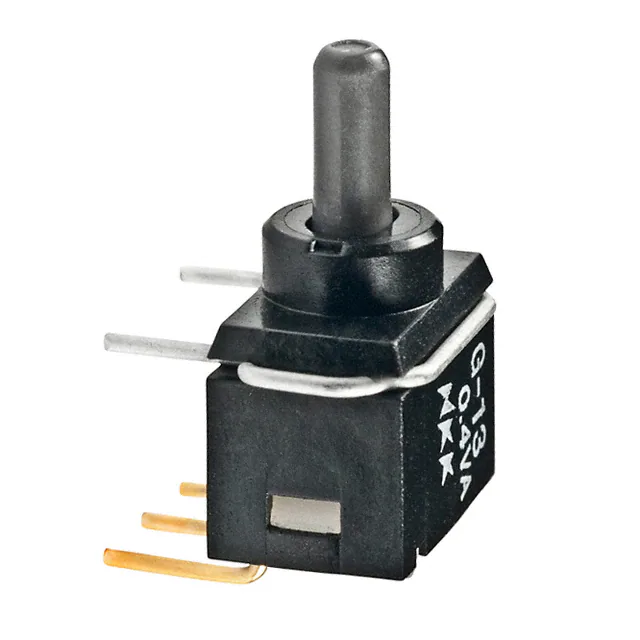

G13AHSWITCH TOGGLE SPDT 0.4VA 28V |
133 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
A11ABSWITCH TOGGLE SPST 0.4VA 28V |
381 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
7105DSWITCH TOGGLE SPST 6A 125V |
256 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPST | 6A (AC) | 125 V | - | On-Off | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | -10°C ~ 65°C |
|
GTS448B301AHRSWITCH TOGGLE DPDT 12A 250V |
815 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | On-On | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|

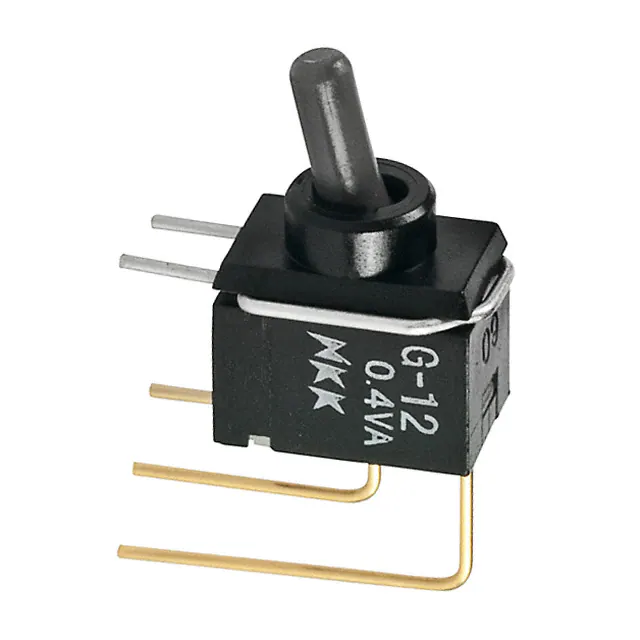

G12AVSWITCH TOGGLE SPDT 0.4VA 28V |
653 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
