Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11AHSWITCH TOGGLE SPST 0.4VA 28V |
399 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

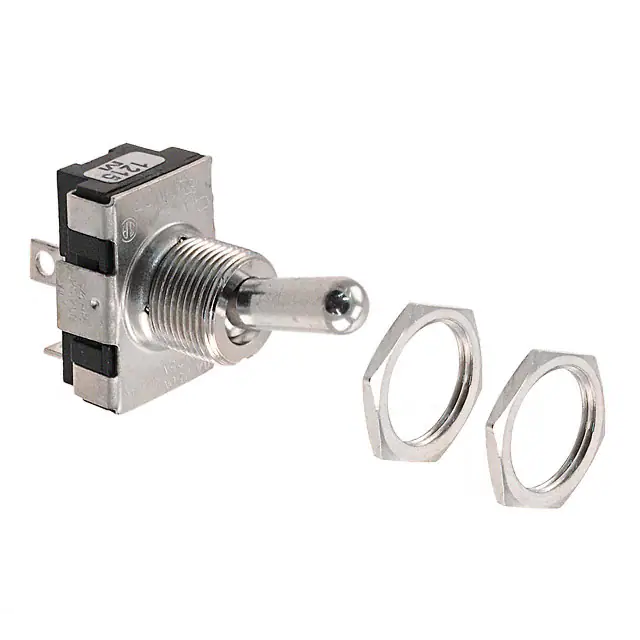

7205DSWITCH TOGGLE SPST 20A 125V |
884 |
|
Datasheet |
7200 | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | -10°C ~ 65°C |
|
8A1022-ZSWITCH TOGGLE SPDT 6A 125V |
135 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|

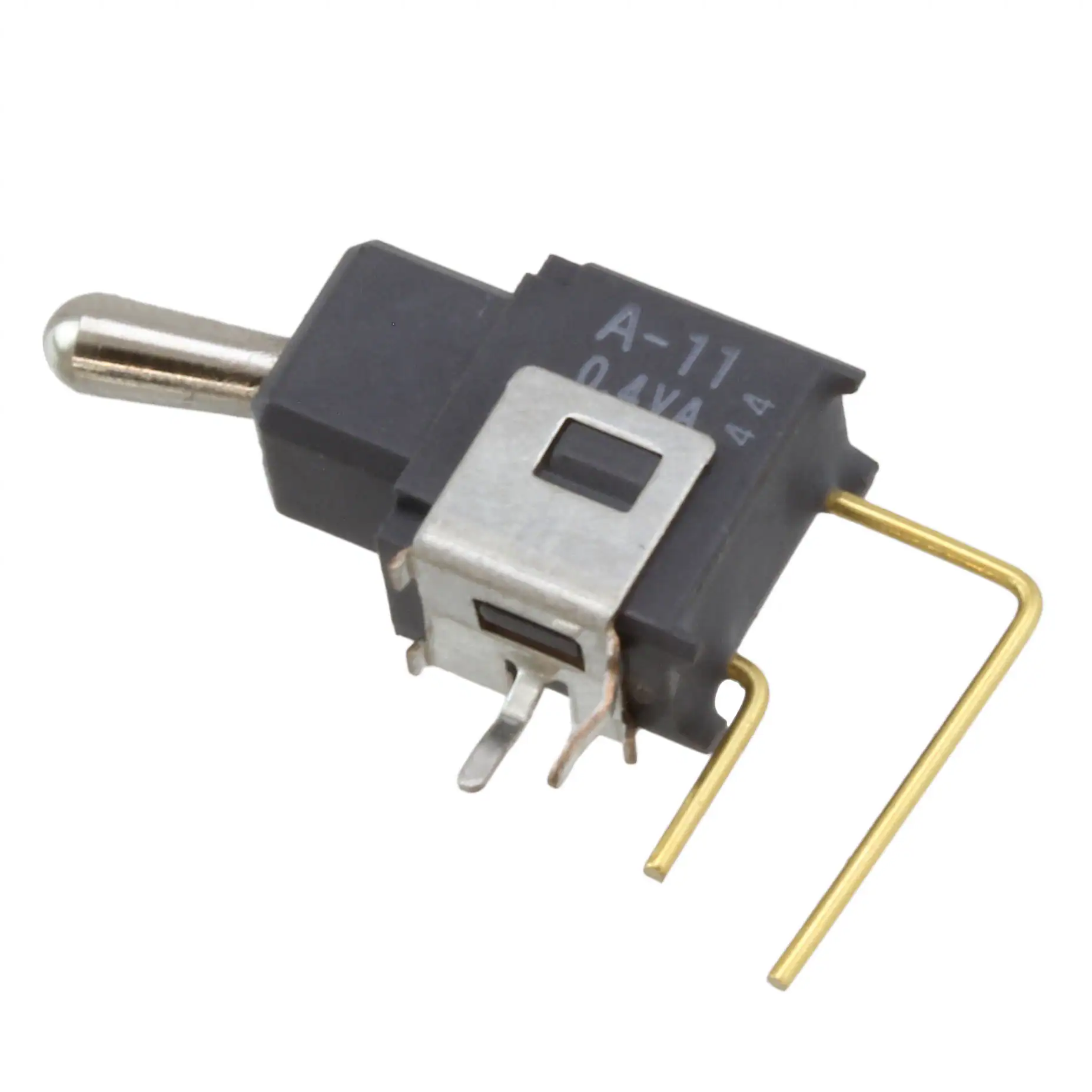

A11JVSWITCH TOGGLE SPST 0.4VA 28V |
354 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
ST143D00SWITCH TOGGLE SPDT 20A 125V |
368 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
1003P1T2B1M1QESWITCH TOGGLE 3PDT 5A 120V |
269 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1003P1T1B1M1QEHSWITCH TOGGLE 3PDT 5A 120V |
528 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

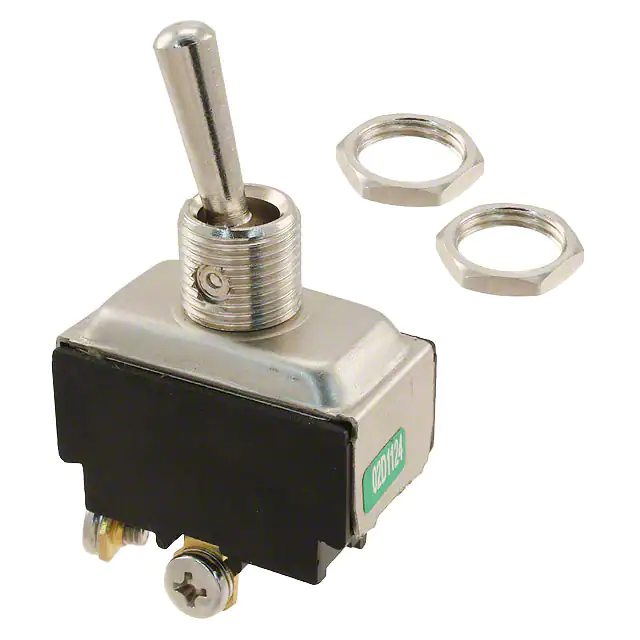

ST262D00SWITCH TOGGLE DPST 20A 125V |
937 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|

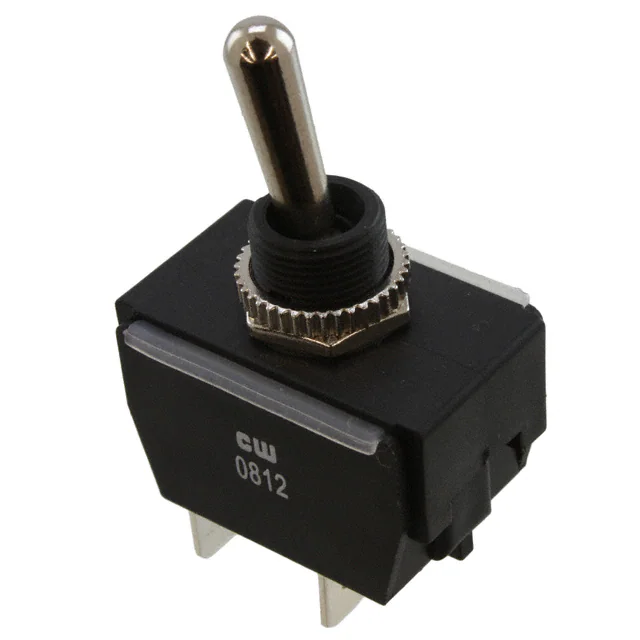

GTS448F101AHRSWITCH TOGGLE DPST 16A 250V |
1,254 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST | 16A (AC) | 250 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|

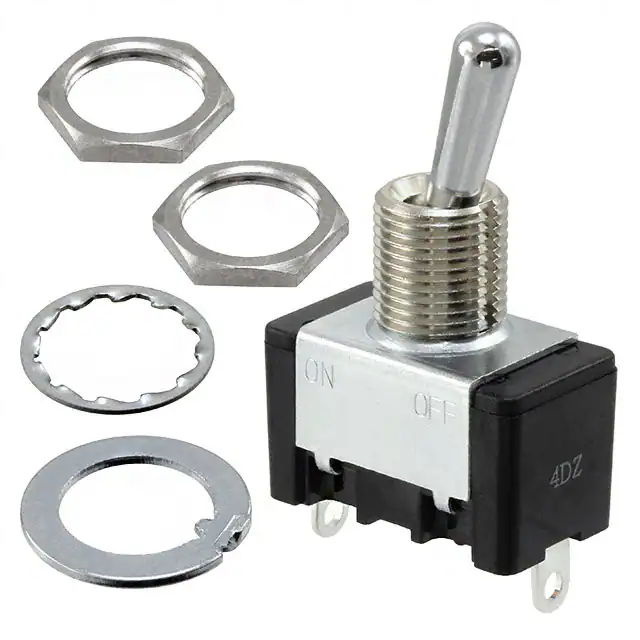

ET115C12-ZSWITCH TOGGLE SPST-NO 15A 125V |
656 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
G3T12APSWITCH TOGGLE SPDT 0.4VA 28V |
499 |
|
Datasheet |
G3T | Tray | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
A11HPSWITCH TOGGLE SPST 0.4VA 28V |
204 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

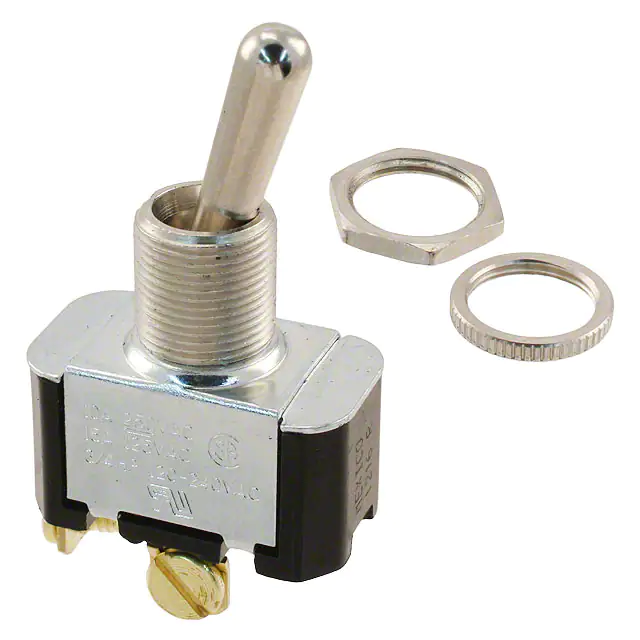

2FA54-73SWITCH TOGGLE SPST 15A 125V |
611 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|

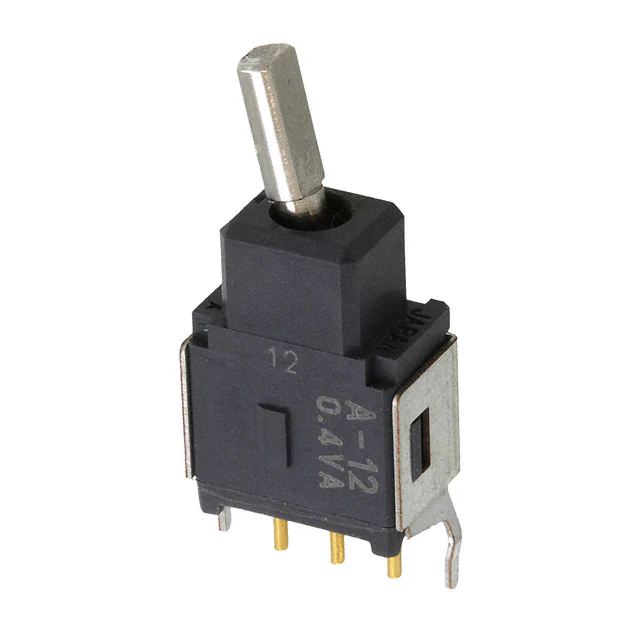

A12HBSWITCH TOGGLE SPDT 0.4VA 28V |
632 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
D22012PSWITCH TOGGLE SPDT 0.4VA 48V |
111 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
TMS6T3B1M1QESWITCH TOGGLE SPST 3A 120V |
2,805 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 3A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 7.37mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Process Sealed | -30°C ~ 85°C |
|
5236CDBSWITCH TOGGLE SPDT 0.4VA 20V |
140 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

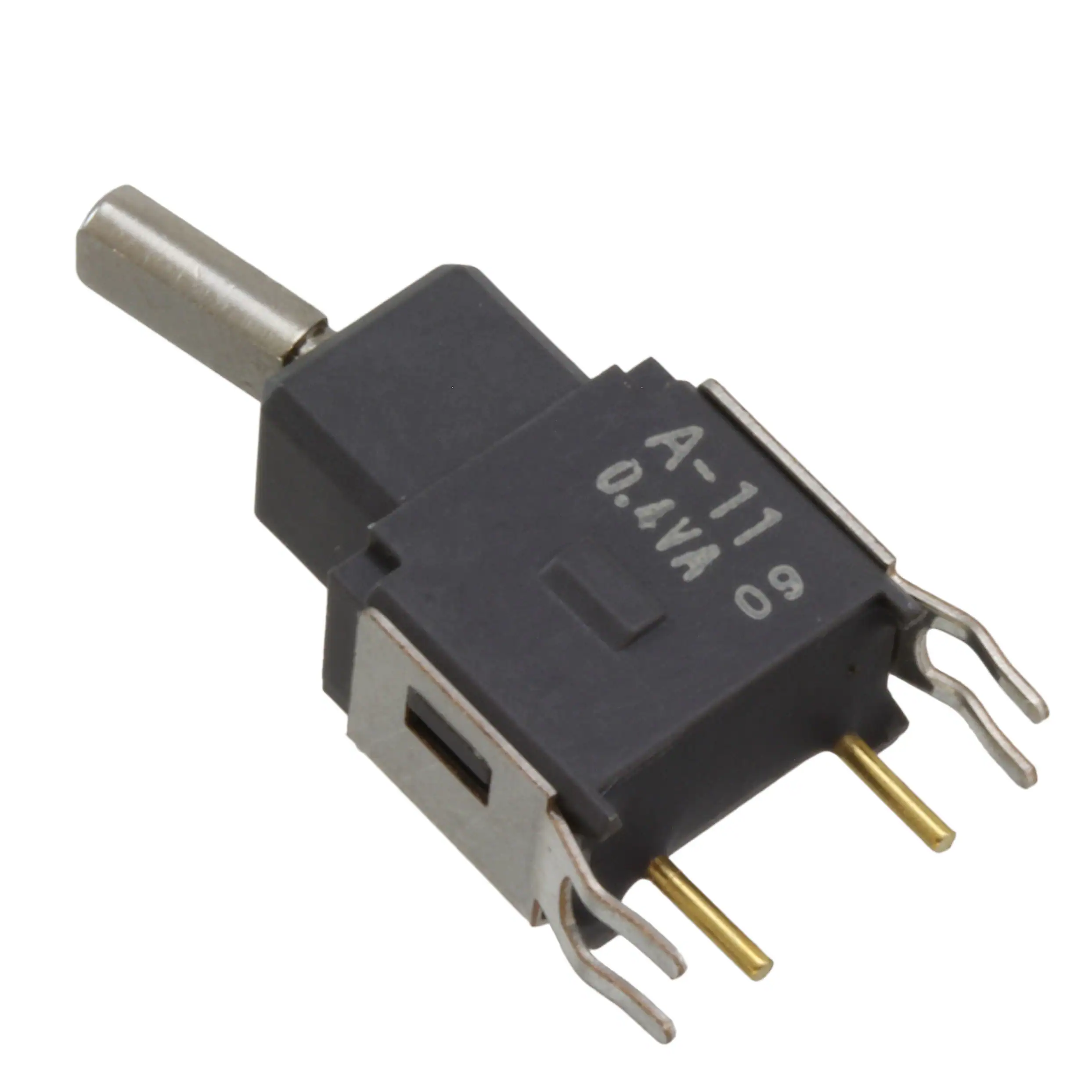

A11HBSWITCH TOGGLE SPST 0.4VA 28V |
533 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
B22APSWITCH TOGGLE DPDT 0.4VA 28V |
449 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1825139-4SWITCH TOGGLE DPDT 5A 120V |
498 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
