Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN12SS1W01SWITCH TOGGLE |
193 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
.jpg)
|
ST24KD00SWITCH TOGGLE DPDT 20A 125V |
7,903 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|

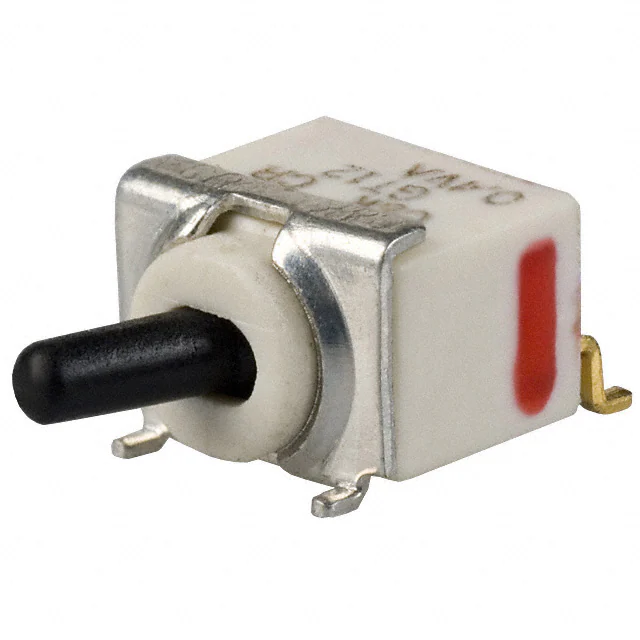

GT11MSABESWITCH TOGGLE SPDT 0.4VA 20V |
5,969 |
|
Datasheet |
GT | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST26GD00SWITCH TOGGLE DPDT 20A 125V |
1,611 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
E101SYZQESWITCH TOGGLE SPDT 7.5A 125V |
2,752 |
|
Datasheet |
E | Tray | Active | Panel Mount | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

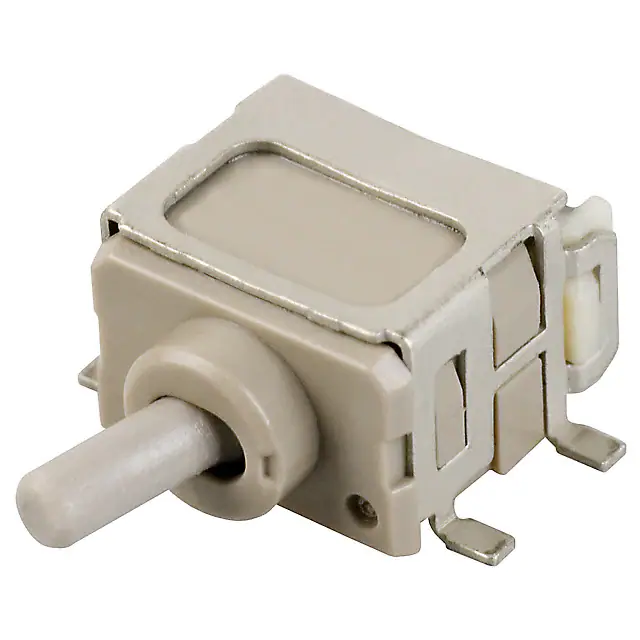

G3T12AH-RSWITCH TOGGLE SPDT 0.4VA 28V |
945 |
|
Datasheet |
G3T | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
6601-100SWITCH TOGGLE SPST 10A 125V |
678 |
|
Datasheet |
6600 | Bulk | Active | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | - | - | -10°C ~ 65°C |
|

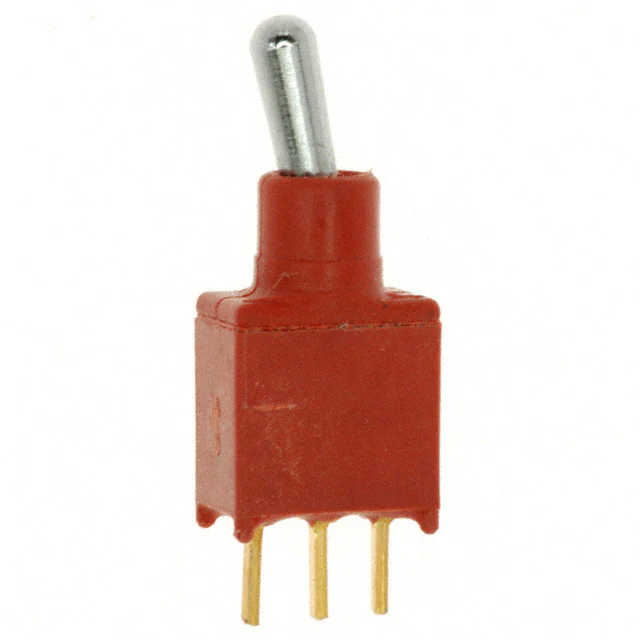

ET01MD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
1,789 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2FB53-73/TABSSWITCH TOGGLE SPDT 15A 125V |
315 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
ET01SD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,308 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

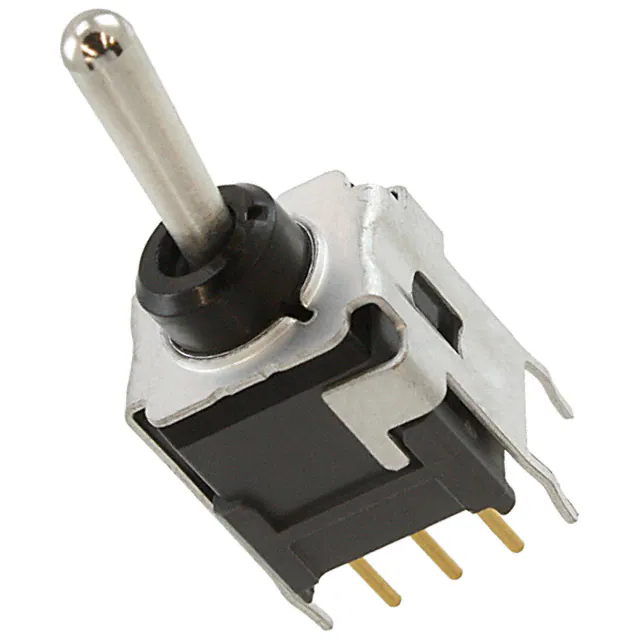

B22ABSWITCH TOGGLE DPDT 0.4VA 28V |
190 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3950BBAAASWITCH TOGGLE DPST 20A 250V |
823 |
|
Datasheet |
3900 | - | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
B22JHSWITCH TOGGLE DPDT 0.4VA 28V |
155 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7102BSWITCH TOGGLE SPDT 6A 125V |
119 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | -10°C ~ 65°C |
|

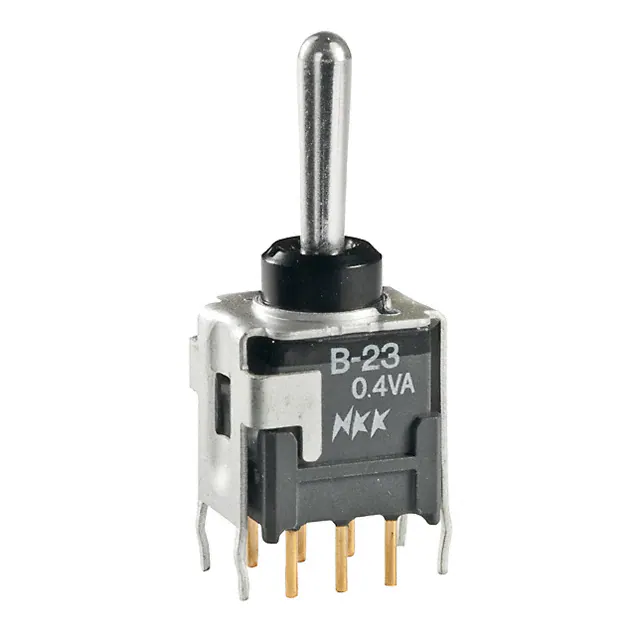

B23ABSWITCH TOGGLE DPDT 0.4VA 28V |
311 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C1700HSWITCH TOGGLE SPST 20A 250V |
307 |
|
Datasheet |
1700 | Bulk | Active | Panel Mount | SPST | 20A (AC) | 250 V | - | On-Off | Flatted | 16.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|

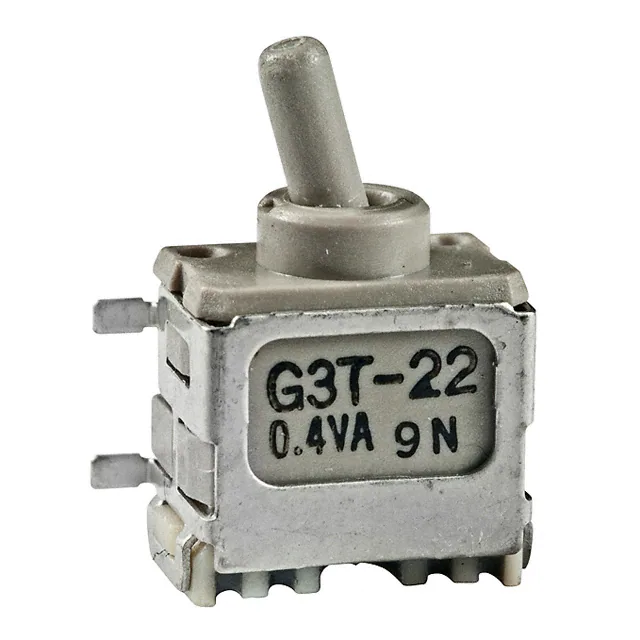

G3T22AHSWITCH TOGGLE DPDT 0.4VA 28V |
7,394 |
|
Datasheet |
G3T | Tray | Active | Surface Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
TL39P005000SWITCH TOGGLE SPDT 0.4VA 20V |
146 |
|
Datasheet |
TL | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

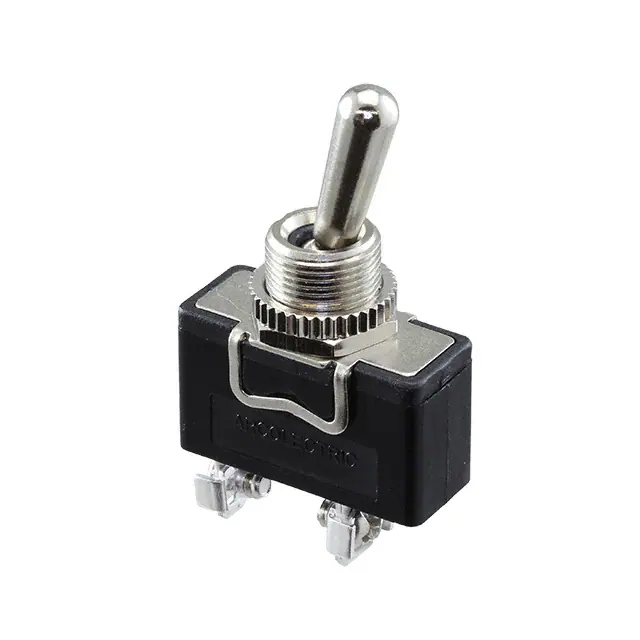

S3900BASWITCH TOGGLE SPST 20A 125V |
1,203 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
MN12SD3W01SWITCH TOGGLE |
1,125 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
