Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3900BASWITCH TOGGLE SPST 20A 125V |
309 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
7103SD9V3QESWITCH TOGGLE SPDT 5A 120V |
637 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825136-7SWITCH TOGGLE SPDT 5A 120V |
297 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S3ASWITCH TOGGLE SPDT 15A 125V |
110 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
GT11MV3BESWITCH TOGGLE SPDT 0.4VA 20V |
234 |
|
Datasheet |
GT | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MTA 106 HSWITCH TOGGLE 1-POLE MOM OFF ON |
467 |
|
Datasheet |
MTA | Box | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -45°C ~ 140°C |
|
ST2W6D00SWITCH TOGGLE DPDT 20A 125V |
195 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 17.80mm | Non-Illuminated | - | - | - | Wire Leads | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|

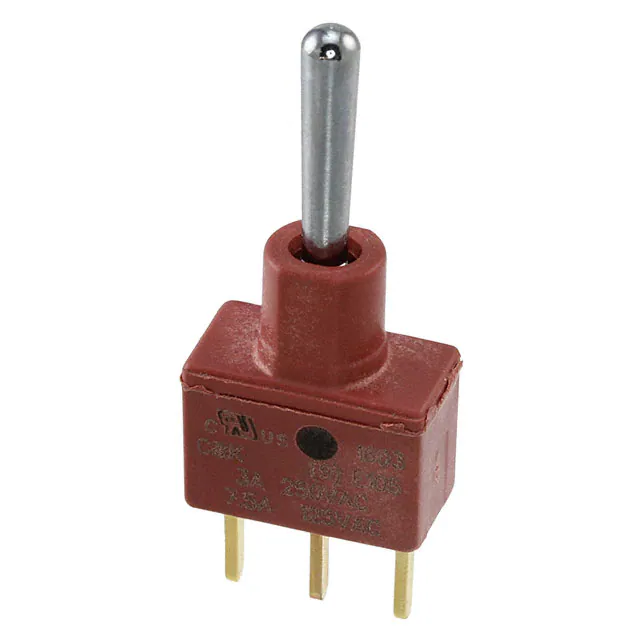

E101SD1CQESWITCH TOGGLE SPDT 7.5A 125V |
113 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105MD9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,386 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

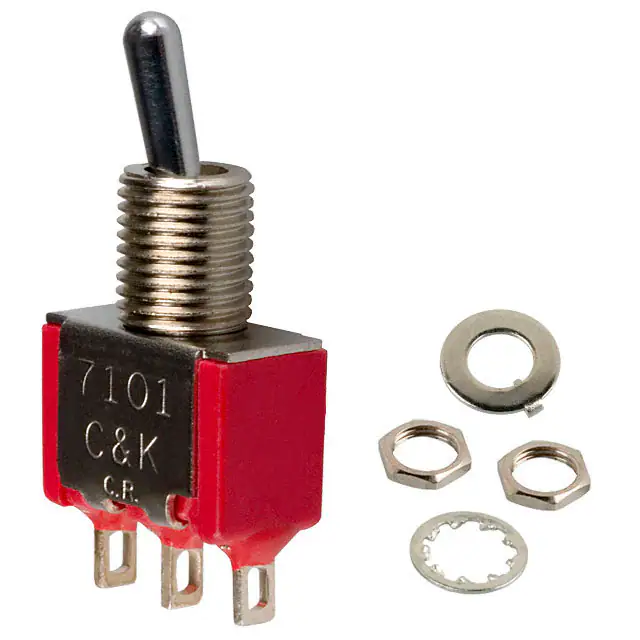

7101MDZQESWITCH TOGGLE SPDT 5A 120V |
135 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105P3YCQESWITCH TOGGLE SPDT 5A 120V |
114 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SYZBESWITCH TOGGLE SPDT 0.4VA 20V |
126 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
.jpg)
|
S305SWITCH TOGGLE SPDT 15A 125V |
324 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
5582SWITCH TOGGLE SPST 25A 12V |
169 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 25A (DC) | - | 12 V | On-Off | Standard Round | 17.52mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
S302TSWITCH TOGGLE SPDT 15A 125V |
146 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
C3972BBAAASWITCH TOGGLE DPST 20A 250V |
605 |
|
Datasheet |
3900 | - | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|

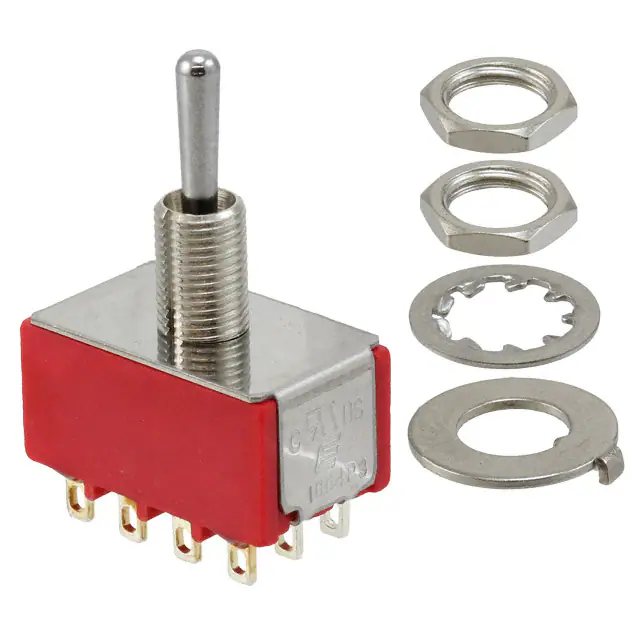

1004P3T1B1M1QEHSWITCH TOGGLE 4PDT 5A 120V |
668 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1004P3T1B1M1QESWITCH TOGGLE 4PDT 5A 120V |
221 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

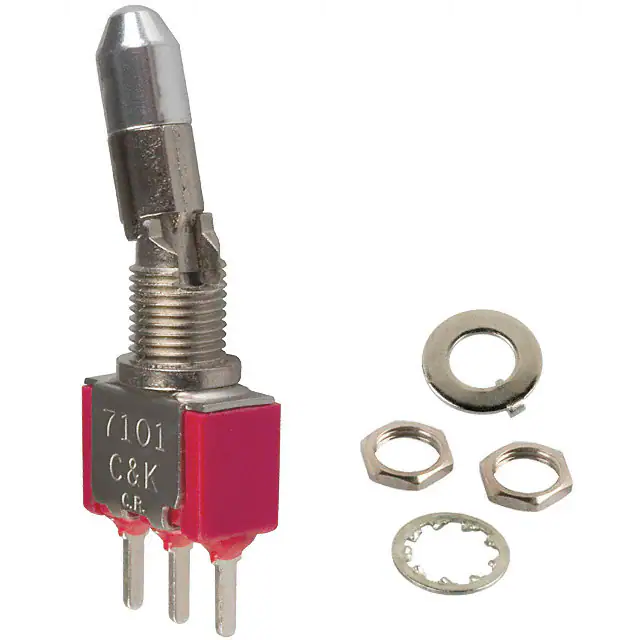

7101K2CQESWITCH TOGGLE SPDT 5A 120V |
173 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
631NH/2SWITCH TOGGLE SPST 15A 250V |
643 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
