Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

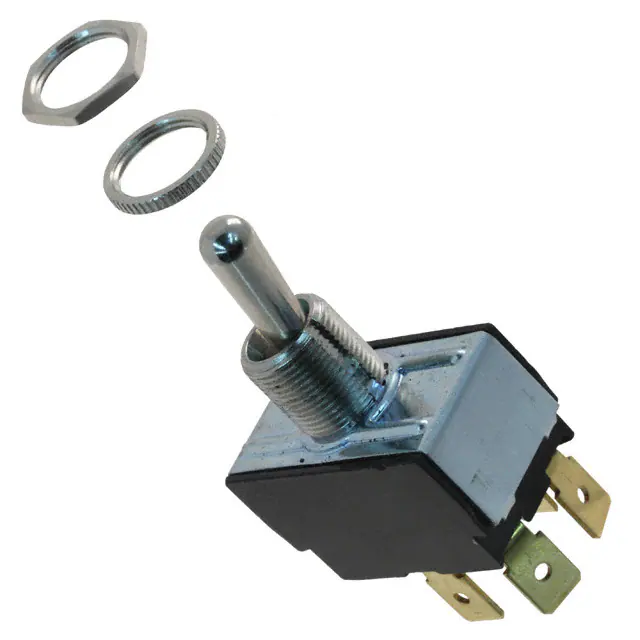

2GK51-73SWITCH TOGGLE DPST 15A 125V |
2,059 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
631H/2SWITCH TOGGLE SPST 15A 250V |
280 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

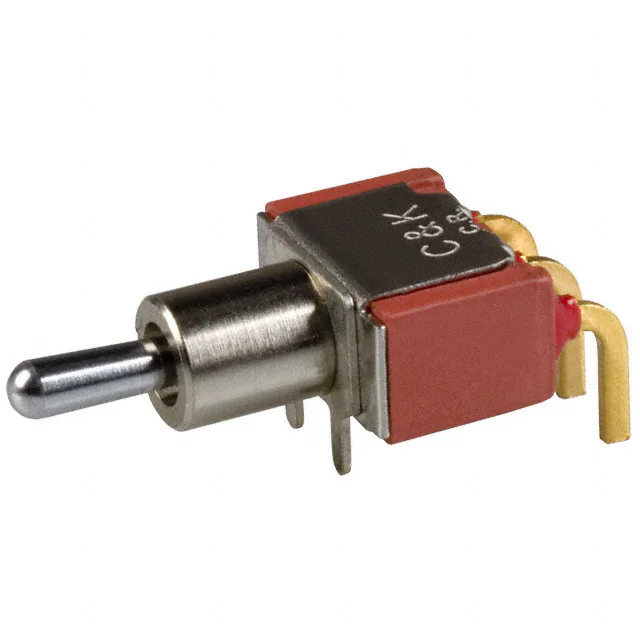

7103MD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
243 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MD9V3QESWITCH TOGGLE SPDT 5A 120V |
106 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3950BASWITCH TOGGLE DPST 20A 125V |
1,861 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
7101SCWZQESWITCH TOGGLE SPDT 5A 120V |
142 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MCWCQESWITCH TOGGLE SPDT 5A 120V |
111 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2GM50-73SWITCH TOGGLE DPDT 15A 125V |
261 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
C3901BASWITCH TOGGLE SPST-NO 16A 125V |
841 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST-NO | 16A (AC), 14A (DC) | 125 V | 36 V | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
7107SYZQESWITCH TOGGLE SPDT 5A 120V |
1,132 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MD9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
152 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101MH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
703 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MN11LL3W03SWITCH TOGGLE |
216 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
7107SYCQESWITCH TOGGLE SPDT 5A 120V |
180 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
636H/2SWITCH TOGGLE SPDT 15A 250V |
166 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
E105MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
160 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S32SWITCH TOGGLE 3PDT 20A 125V |
2,041 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

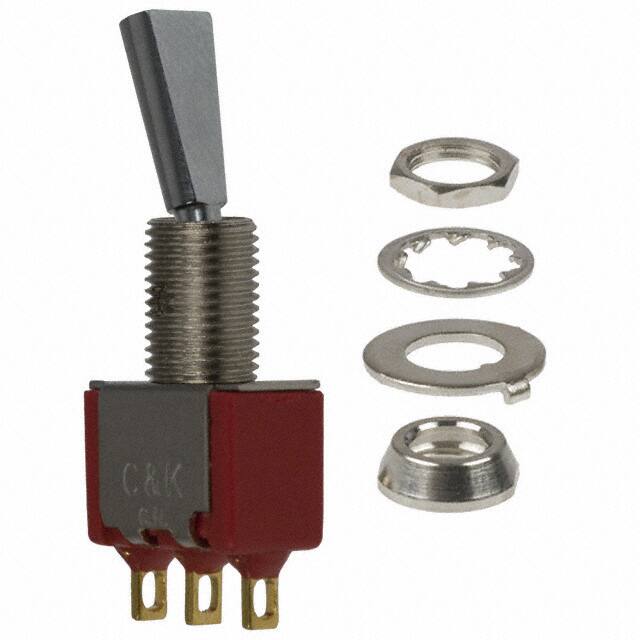

7101P3YZBESWITCH TOGGLE SPDT 0.4VA 20V |
209 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S331SWITCH TOGGLE DPST 20A 125V |
569 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

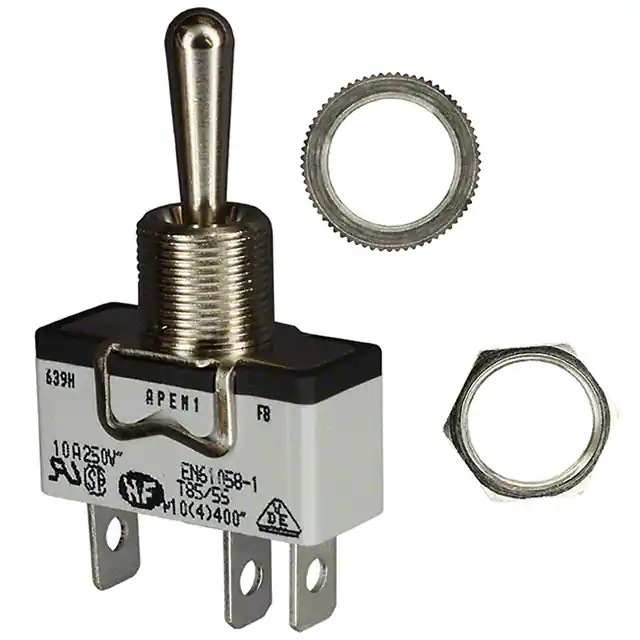

639H/2SWITCH TOGGLE SPDT 10A 250V |
290 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
