Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1AWFSWITCH TOGGLE SPST 15A 125V |
145 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
MN22LL4W01SWITCH TOGGLE |
136 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
B12JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
293 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|

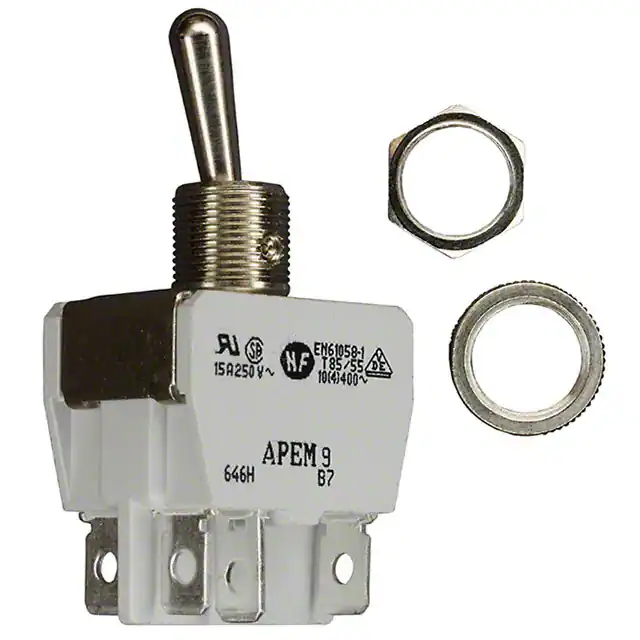

646H/2SWITCH TOGGLE DPDT 15A 250V |
1,158 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
2GL54-73SWITCH TOGGLE DPDT 15A 125V |
462 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7101TCWCQESWITCH TOGGLE SPDT 5A 120V |
207 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2GK54-73SWITCH TOGGLE DPST 15A 125V |
191 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7101TCWZQESWITCH TOGGLE SPDT 5A 120V |
277 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3YZQESWITCH TOGGLE DPDT 5A 120V |
119 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S332TSWITCH TOGGLE DPDT 15A 125V |
129 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
641NH/2SWITCH TOGGLE DPST 15A 250V |
363 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPST | 15A (AC) | 250 V | - | On-Off | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
641H/2SWITCH TOGGLE DPST 15A 250V |
211 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPST | 15A (AC) | 250 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
MTE106DSWITCH TOGGLE SPDT 6A 125V |
105 |
|
Datasheet |
MTE Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1825222-2SWITCH TOGGLE SPST 3A 125V |
849 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | SPST | 3A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 7.52mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.83mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

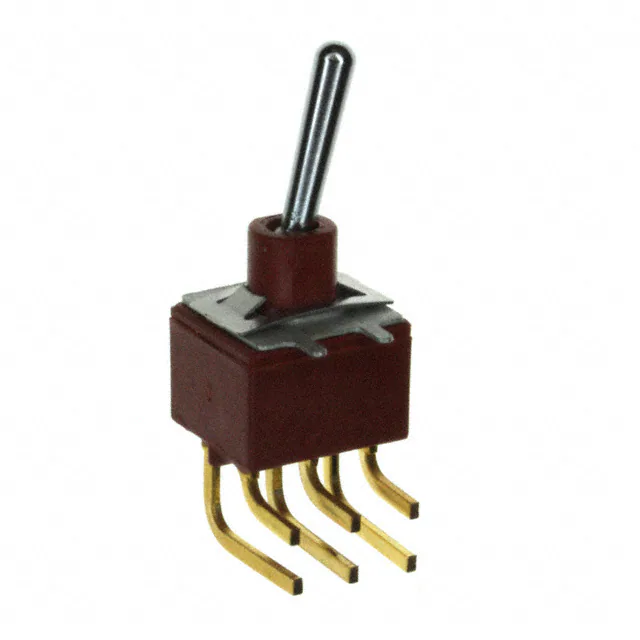

E208SD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
200 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S8AWFSWITCH TOGGLE SPDT 15A 125V |
292 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
8E4011-ZSWITCH TOGGLE 4PDT 6A 125V |
346 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
7203SCWZQESWITCH TOGGLE DPDT 5A 120V |
113 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
LT-1511-610-012SWITCH TOGGLE SPST 15A 125V |
2,181 |
|
Datasheet |
LT | Box | Active | Panel Mount | SPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
55033-01SWITCH TOGGLE SPDT 15A 24V |
193 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
