Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

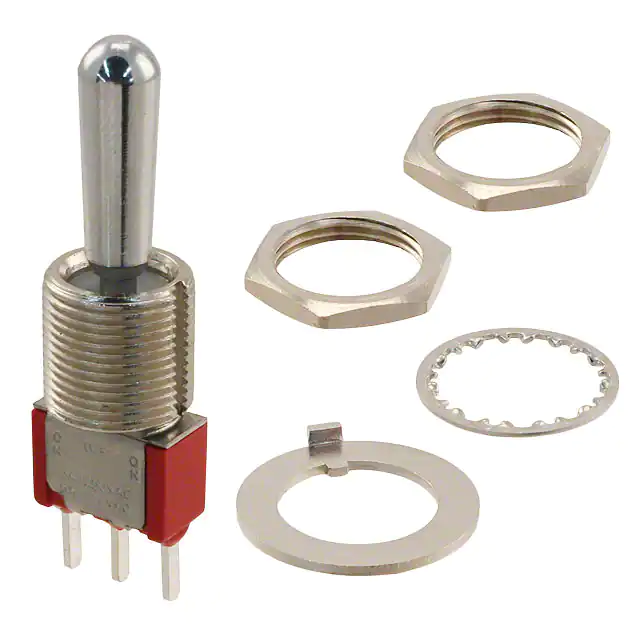

7105TCWZ3QESWITCH TOGGLE SPDT 5A 120V |
2,079 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.062" (1.5mm) | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
6FC54-73SWITCH TOGGLE SPDT 15A 125V |
1,246 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
S7FSWITCH TOGGLE DPDT 20A 125V |
674 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
.jpg)
|
7201SYAQESWITCH TOGGLE DPDT 5A 120V |
483 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ILT06SWITCH TOGGLE SPST 20A 12V |
680 |
|
Datasheet |
ILT | Tray | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 19.90mm | Illuminated | LED, Purple | 2.8 ~ 3.6 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|

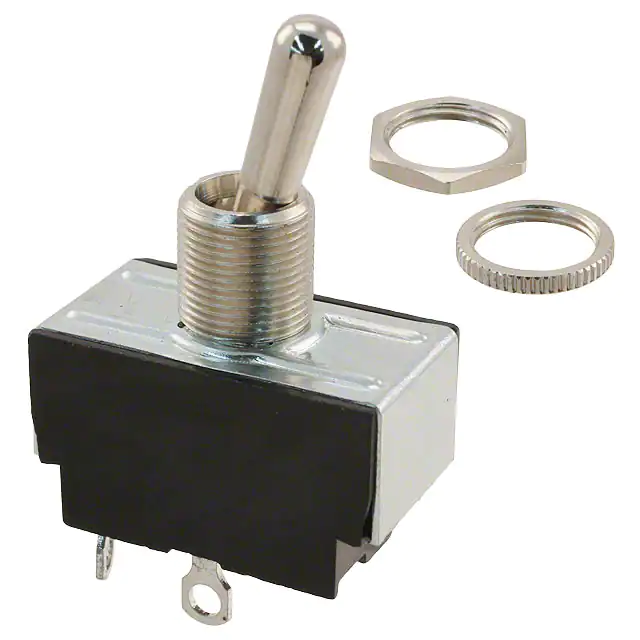

2GK50-73SWITCH TOGGLE DPST 15A 125V |
295 |
|
Datasheet |
G | Box | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7205P3YZQESWITCH TOGGLE DPDT 5A 120V |
2,077 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203SYCQESWITCH TOGGLE DPDT 5A 120V |
121 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3960BBAAASWITCH TOGGLE DPST 20A 250V |
566 |
|
Datasheet |
3900 | - | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
S309TSWITCH TOGGLE SPDT 15A 125V |
132 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S308TSWITCH TOGGLE SPDT 15A 125V |
196 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7205P3Y9CQESWITCH TOGGLE DPDT 5A 120V |
1,998 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S1AWSWITCH TOGGLE SPST 15A 125V |
218 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
4-6437630-8SWITCH TOGGLE SPDT 6A 250V |
400 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 250 V | - | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
MTA106DPCSWITCH TOGGLE SPDT 6A 125V |
409 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
C3922BASWITCH TOGGLE SPDT 16A 125V |
603 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | 16A (AC), 14A (DC) | 125 V | 36 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
7203SYZQESWITCH TOGGLE DPDT 5A 120V |
103 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

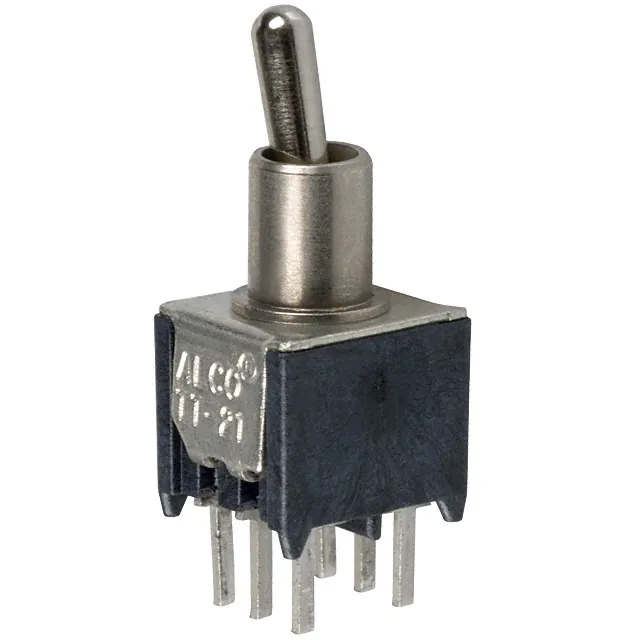

TT21NGPC1SWITCH TOGGLE DPDT 0.4VA 20V |
280 |
|
Datasheet |
TT | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.61mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

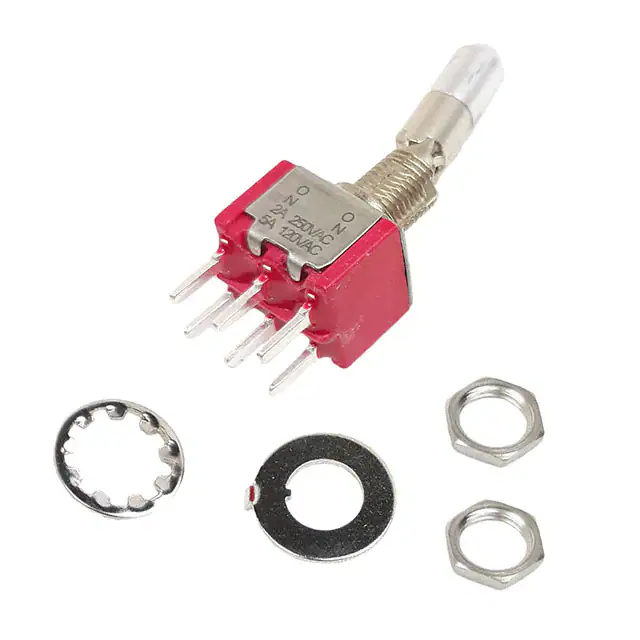

7201K12CQESWITCH TOGGLE DPDT 5A 120V |
1,689 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

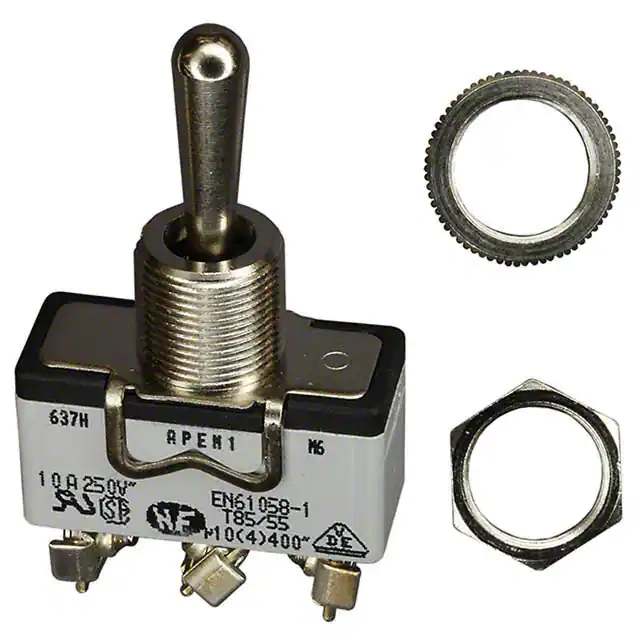

637HSWITCH TOGGLE SPDT 10A 250V |
160 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
