Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S305TSWITCH TOGGLE SPDT 15A 125V |
281 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
.jpg)
|
S331TSWITCH TOGGLE DPST 15A 125V |
744 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
5520SWITCH TOGGLE SPST 15A 24V |
172 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 24 V | On-Off | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
7105SYAQESWITCH TOGGLE SPDT 5A 120V |
161 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET02SD1CGESWITCH TOGGLE SPST 2A 120V |
153 |
|
Datasheet |
ET | Bag | Active | Through Hole | SPST | 2A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MN13B2B1W03SWITCH TOGGLE SPDT 6A 125V |
138 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | - | - | - | - | PC Pin | M12 | - | - | -30°C ~ 85°C |
|
5659ABSWITCH TOGGLE 3PDT 6A 125V |
247 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7101P3YCQESWITCH TOGGLE SPDT 5A 120V |
773 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T103SHCQESWITCH TOGGLE SPDT 2A 120V |
1,010 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5586SWITCH TOGGLE SPDT 15A 24V |
134 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | On-Off-On | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
E201MD1AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
2,660 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN22LL1W01-CSWITCH TOGGLE |
148 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|

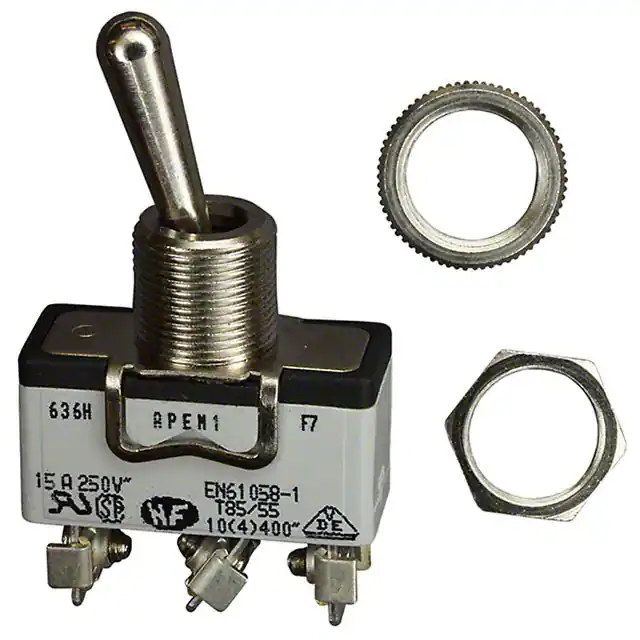

636HSWITCH TOGGLE SPDT 15A 250V |
142 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

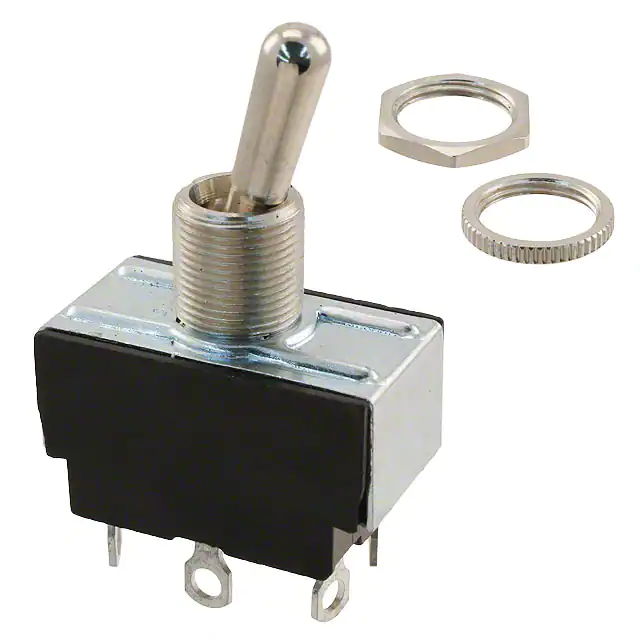

2GL50-73SWITCH TOGGLE DPDT 15A 125V |
534 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
2GM51-73SWITCH TOGGLE DPDT 15A 125V |
522 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
T102STCQESWITCH TOGGLE SPST 2A 120V |
1,010 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPST | 2A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 7.11mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5646ABSWITCH TOGGLE DPDT 6A 125V |
180 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7103P3YZQESWITCH TOGGLE SPDT 5A 120V |
148 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101TZQESWITCH TOGGLE SPDT 5A 120V |
596 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5570SWITCH TOGGLE SPST 10A 12V |
104 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 10A (DC) | - | 12 V | On-Off | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 11.90mm Dia | - | - |
