Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101SYZGESWITCH TOGGLE SPDT 5A 120V |
185 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S3FSWITCH TOGGLE SPDT 15A 125V |
146 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
C3910BASWITCH TOGGLE SPDT 16A 125V |
173 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | 16A (AC), 14A (DC) | 125 V | 36 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
S301FSWITCH TOGGLE SPST 15A 125V |
252 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

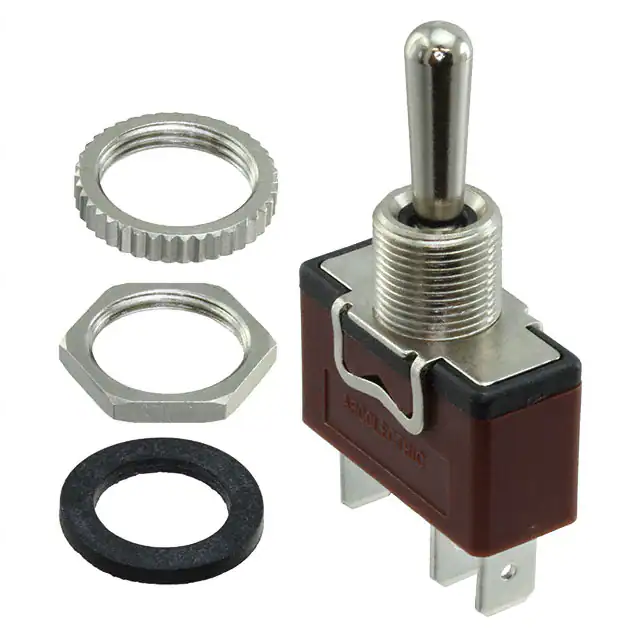

C3920BESWITCH TOGGLE SPDT 16A 125V |
1,156 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | 16A (AC), 14A (DC) | 125 V | 36 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
ET01MD1CGESWITCH TOGGLE SPDT 3A 120V |
195 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1825138-3SWITCH TOGGLE DPDT 5A 120V |
4,939 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MDZQESWITCH TOGGLE SPDT 5A 120V |
191 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET210N12-ZSWITCH TOGGLE DPDT 10A 125V |
125 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

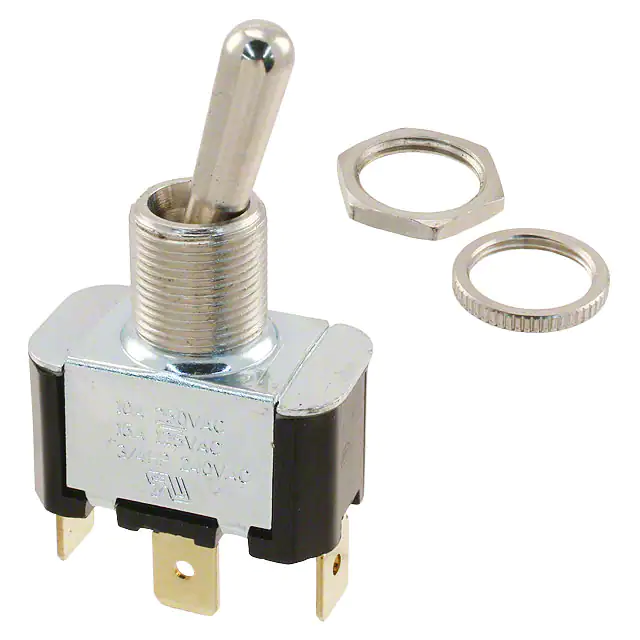

2FC53-73/TABSSWITCH TOGGLE SPDT 15A 125V |
1,242 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
ET01MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
276 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22022PSWITCH TOGGLE DPDT 0.4VA 48V |
225 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|

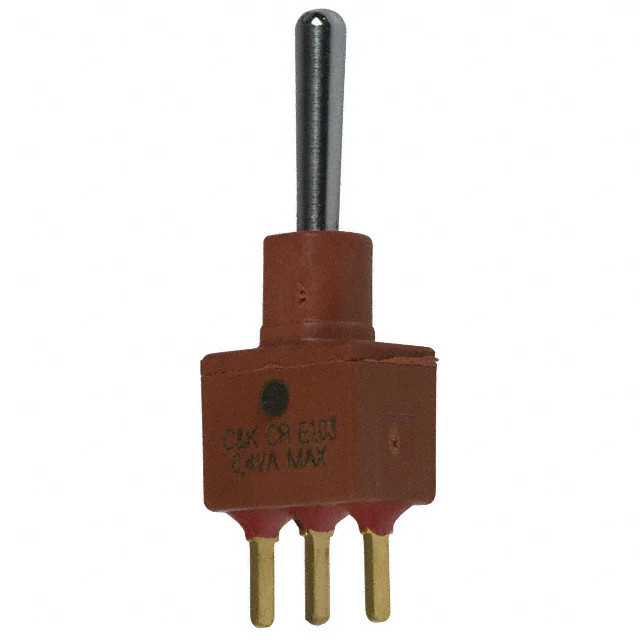

E103SD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
134 |
|
Datasheet |
E | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

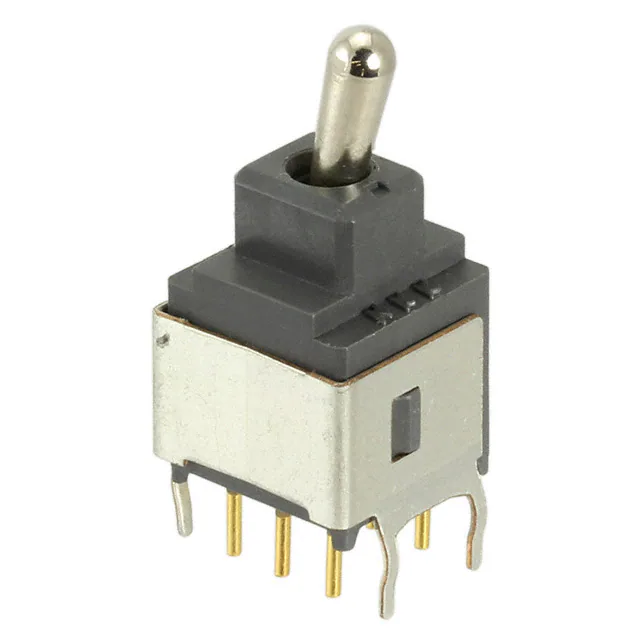

A24JBSWITCH TOGGLE SP3T 0.4VA 28V |
217 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

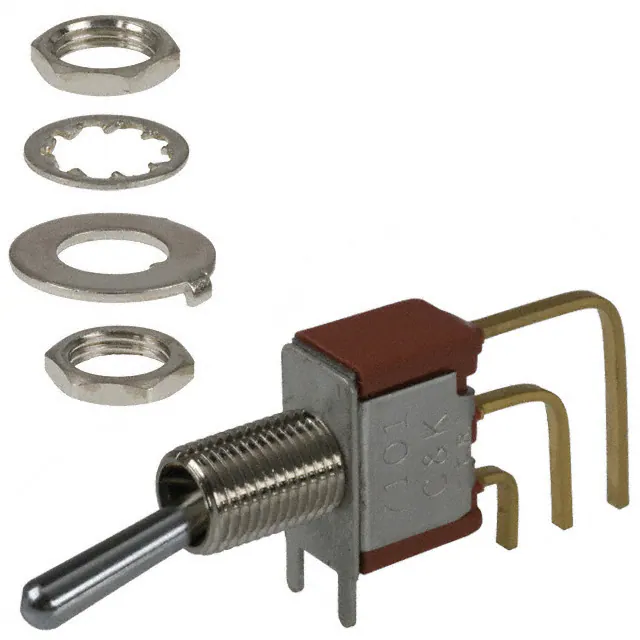

7101SYAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
496 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01MD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
109 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT22MCBESWITCH TOGGLE DPST 0.4VA 20V |
348 |
|
Datasheet |
GT | Bulk | Active | Through Hole | DPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01MD1AGESWITCH TOGGLE SPDT 3A 120V |
303 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G12JVCFSWITCH TOGGLE SPDT 0.4VA 28V |
766 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
G12JHCFSWITCH TOGGLE SPDT 0.4VA 28V |
319 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
