Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

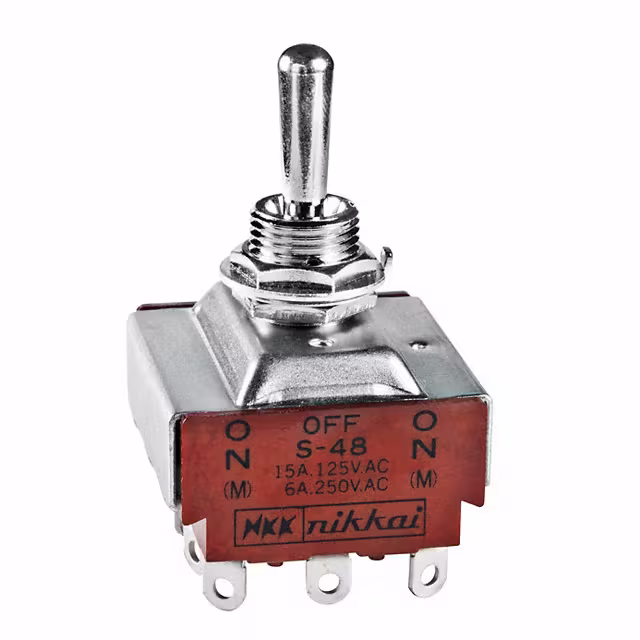

S48SWITCH TOGGLE 4PDT 15A 125V |
1,511 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7401SYZQESWITCH TOGGLE 4PDT 5A 120V |
157 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MTA306DSWITCH TOGGLE 3PDT 6A 125V |
111 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

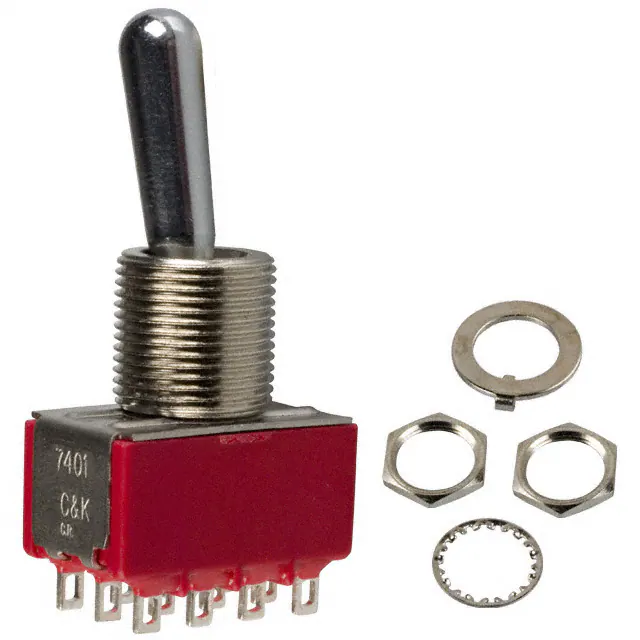

7401TZQESWITCH TOGGLE 4PDT 5A 120V |
207 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

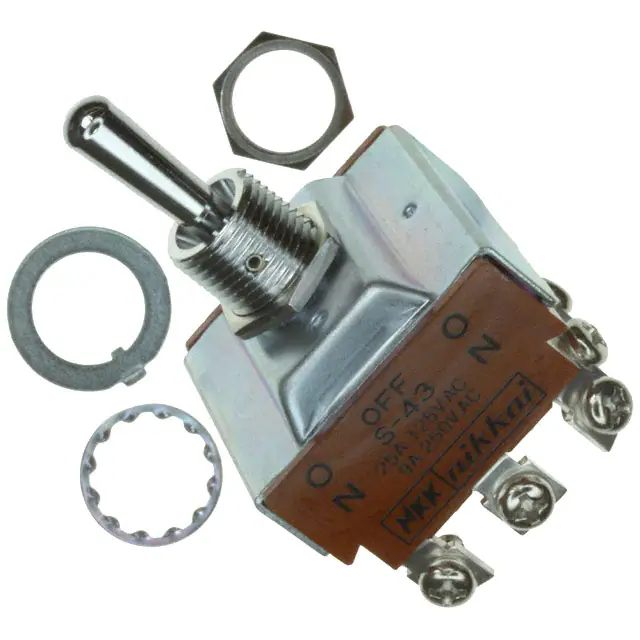

S43TSWITCH TOGGLE 4PDT 20A 125V |
4,585 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S21AWBSWITCH TOGGLE DPST 15A 125V |
129 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 70°C |
|
S821/USWITCH TOGGLE DPST 30A 125V |
598 |
|
Datasheet |
S | Tray | Active | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
2NT1-7SWITCH TOGGLE DPDT 10A 125V |
195 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
S822/CULSWITCH TOGGLE DPDT 30A 125V |
125 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 30A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

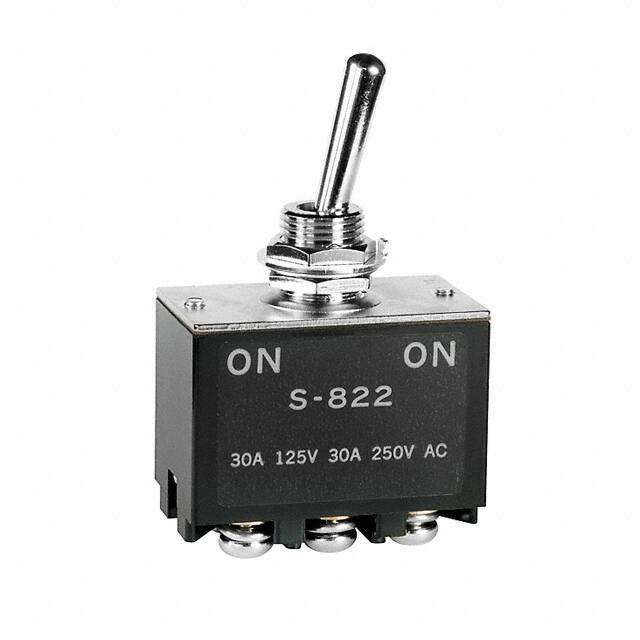

S822/USWITCH TOGGLE DPDT 30A 125V |
122 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 30A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

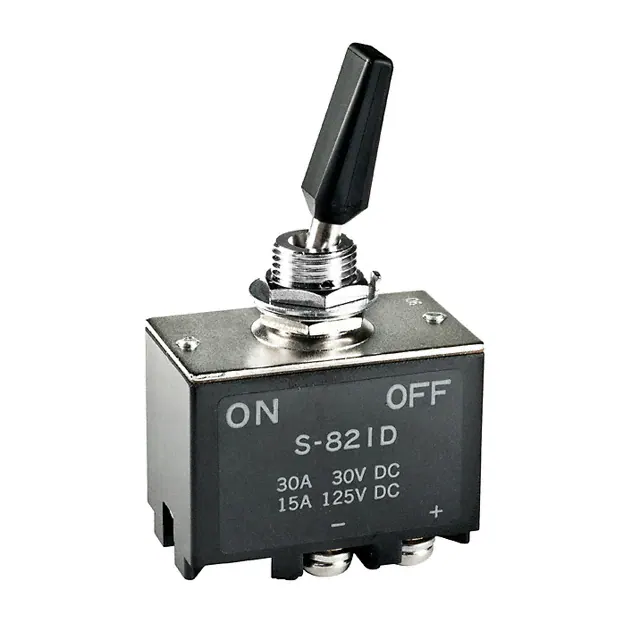

S821DSWITCH TOGGLE DPST 30A 30V |
170 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 30A (DC) | - | 30 V | On-Off | Flatted | 27.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

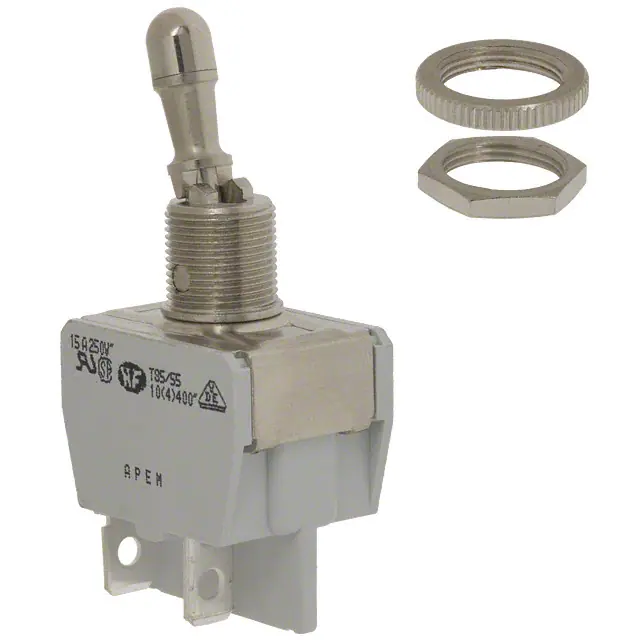

641H/22VSWITCH TOGGLE DPST 15A 250V |
125 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPST | 15A (AC) | 250 V | - | On-Off | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
1NT1-2GSWITCH TOGGLE SPST 15A 125V |
3,824 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
2NT1-50SWITCH TOGGLE DPDT 10A 125V |
3,995 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
2TL1-5SWITCH TOGGLE DPDT 10A 125V |
2,339 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
1NT1-1ASWITCH TOGGLE SPDT 15A 125V |
3,139 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
3531001N000SWITCH TOGGLE SPST 20A 28V |
2,172 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 20A (AC), 15A (DC) | - | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
S831SWITCH TOGGLE 3PST 30A 125V |
2,257 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
9221KZ4QDSWITCH TOGGLE DPDT 10A 125V |
2,451 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|

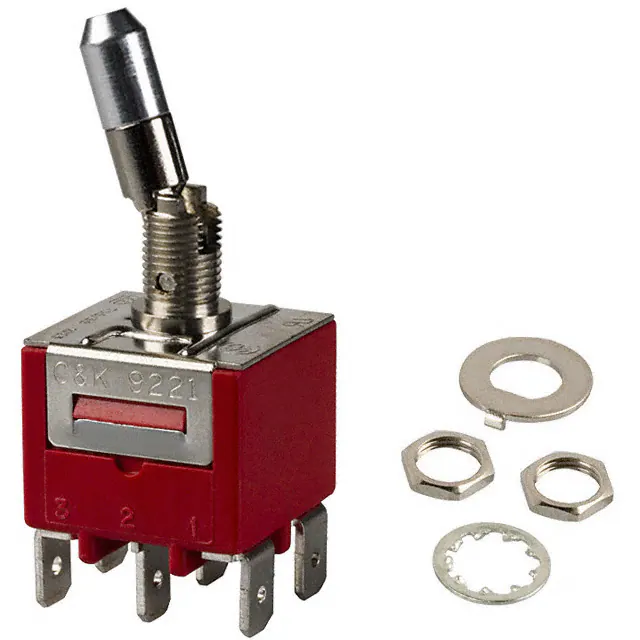

9221K1Z4QDSWITCH TOGGLE DPDT 10A 125V |
144 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 17.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
