Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMD1T5B2M2RESWITCH TOGGLE DPDT 0.4VA 20V |
408 |
|
Datasheet |
- | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
1-1825137-6SWITCH TOGGLE SPDT 5A 120V |
648 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP4T7B13M1QESWITCH TOGGLE SPDT 5A 120V |
231 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 13.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B4M7QESWITCH TOGGLE DPDT 5A 120V |
240 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

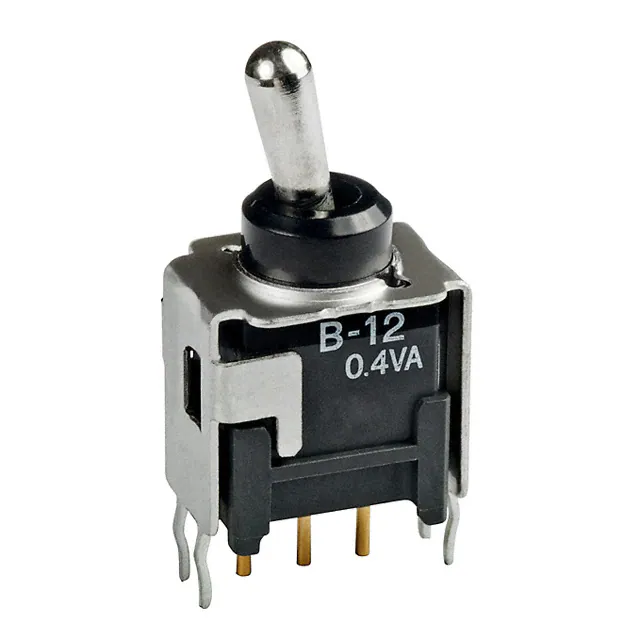

B12JBSWITCH TOGGLE SPDT 0.4VA 28V |
1,417 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825138-5SWITCH TOGGLE DPDT 5A 120V |
169 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825137-0SWITCH TOGGLE SPDT 5A 120V |
560 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS448K101AHRSWITCH TOGGLE DPDT 12A 250V |
2,325 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
1825139-9SWITCH TOGGLE DPDT 5A 120V |
477 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS447A101HRSWITCH TOGGLE SPST 20A 277V |
4,017 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPST | 20A (AC) | 277 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
ST14DD00SWITCH TOGGLE SPDT 20A 125V |
6,403 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
3-1825136-7SWITCH TOGGLE SPDT 5A 120V |
323 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS1T5B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
155 |
|
Datasheet |
- | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.48mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
ATE2D-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
990 |
|
Datasheet |
ATE | Tray | Active | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
ATE2E-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
464 |
|
Datasheet |
ATE | Tray | Active | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
GTS447C101HRSWITCH TOGGLE SPDT 20A 277V |
903 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 277 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
100DP8T6B11M2QEHSWITCH TOGGLE SP3T 5A 120V |
714 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
GTS447N101HRSWITCH TOGGLE SPST-NO 16A 277V |
1,377 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPST-NO | 16A (AC) | 277 V | - | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|

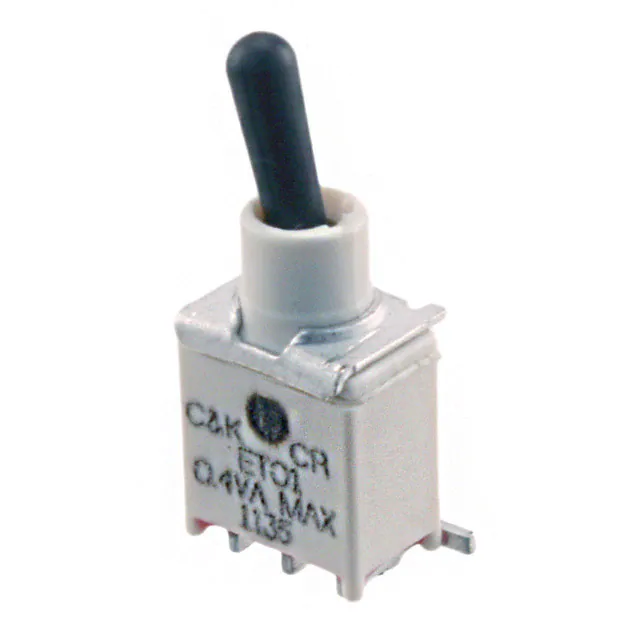

ET01M3D1SAPESWITCH TOGGLE SPDT 0.4VA 20V |
684 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Gull Wing | Unthreaded | - | Black Antistatic Actuator | -30°C ~ 85°C |
|
2M1-SP1-T1-B1-M2QESWITCH TOGGLE SPDT 5A 125V |
1,286 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
