Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

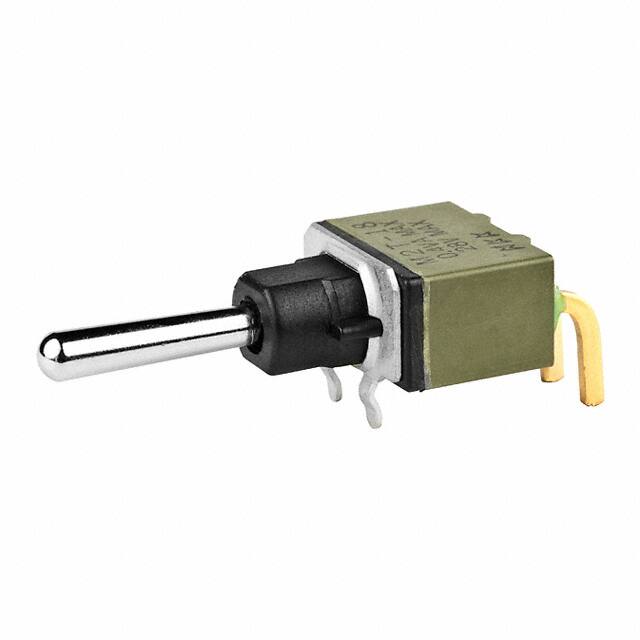

M2T18SA5G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,841 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

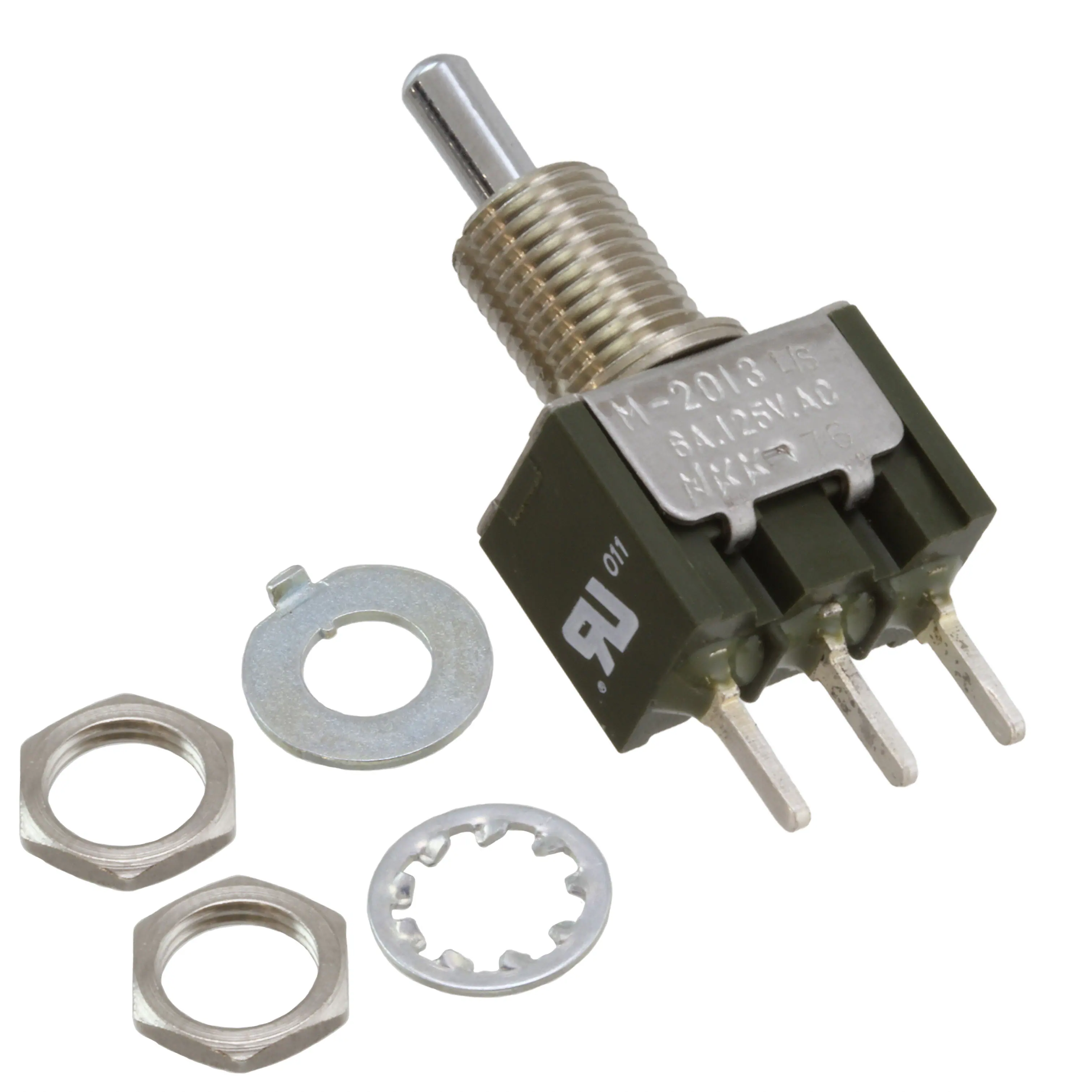

M2013S3S1W03SWITCH TOGGLE SPDT 6A 125V |
2,387 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2011K2S1W01-HSWITCH TOGGLE SPST 6A 125V |
1,098 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Gray Cap | -30°C ~ 85°C |
|

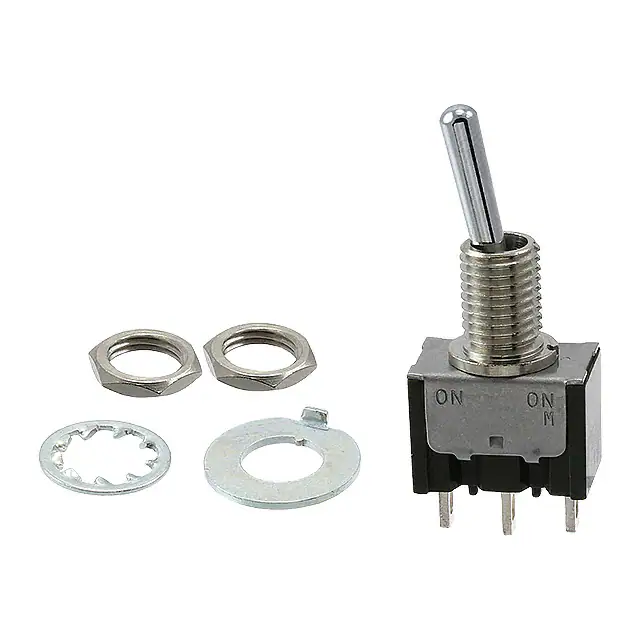

M2015SS4W01SWITCH TOGGLE SPDT 6A 125V |
4,831 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013SS1W30SWITCH TOGGLE SPDT 6A 125V |
2,232 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012ED1W01SWITCH TOGGLE SPDT 6A 125V |
3,666 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

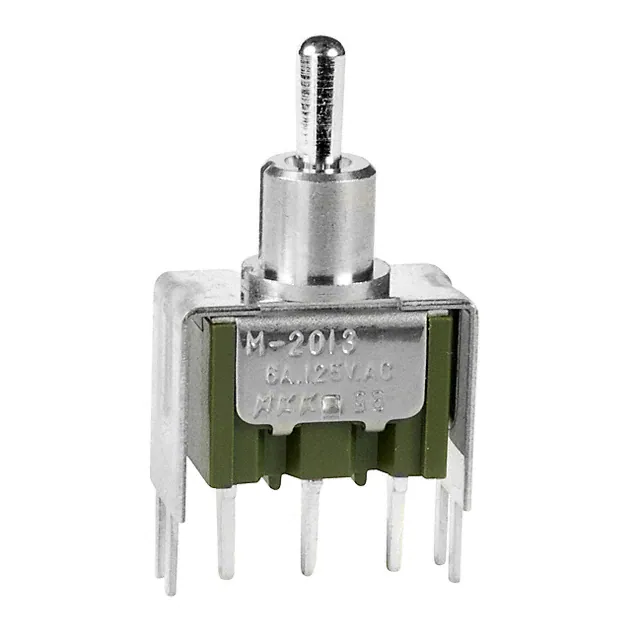

M2013S2A2W13SWITCH TOGGLE SPDT 6A 125V |
1,279 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

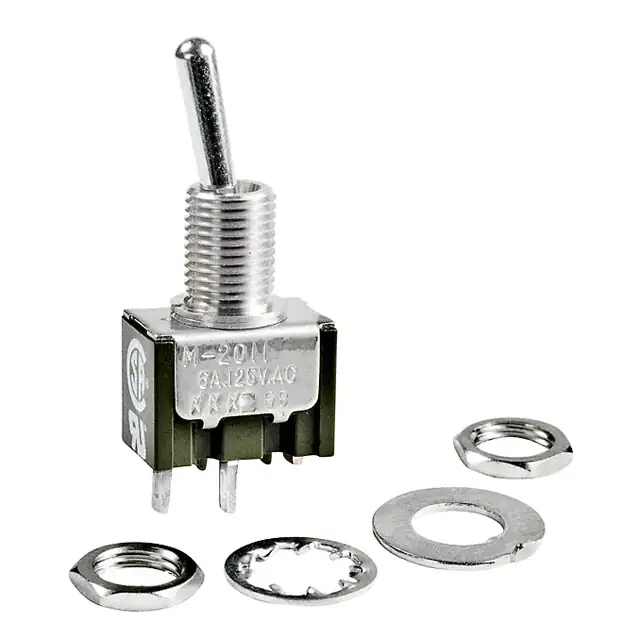

M2011SS1W01/UCSWITCH TOGGLE SPST 6A 125V |
2,524 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET105E12-ZSWITCH TOGGLE SPDT 5A 125V |
1,559 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 5A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
CFT2-1EC6-AWSWITCH TOGGLE SPDT 0.4VA 28V |
1,207 |
|
Datasheet |
CFT2 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
M2012K2S1W01-HSWITCH TOGGLE SPDT 6A 125V |
2,635 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Gray Cap | -30°C ~ 85°C |
|
|
M2023S3S1W01SWITCH TOGGLE DPDT 6A 125V |
1,178 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019ES1W01SWITCH TOGGLE SPDT 6A 125V |
4,987 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

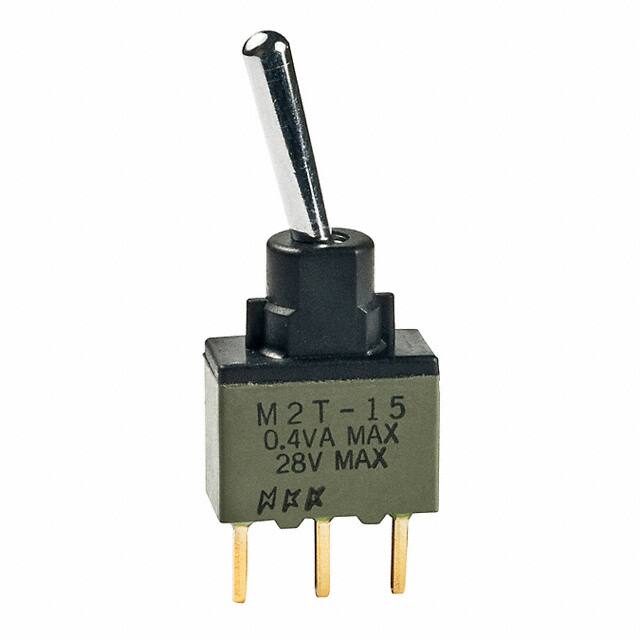

M2T15SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
3,356 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2015SS1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,401 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015E2S1W02SWITCH TOGGLE SPDT 6A 125V |
1,768 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Flatted | 6.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B15JWSWITCH TOGGLE SPDT 0.4VA 28V |
2,045 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

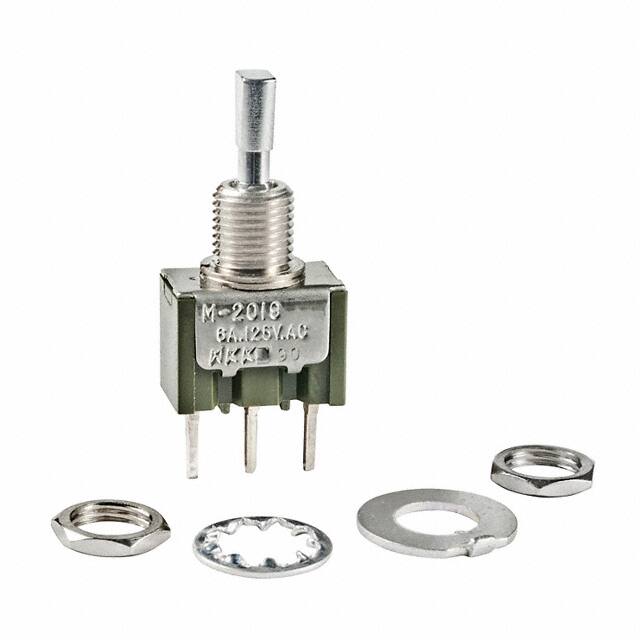

M2019E2A1W03SWITCH TOGGLE SPDT 6A 125V |
4,023 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Flatted | 6.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

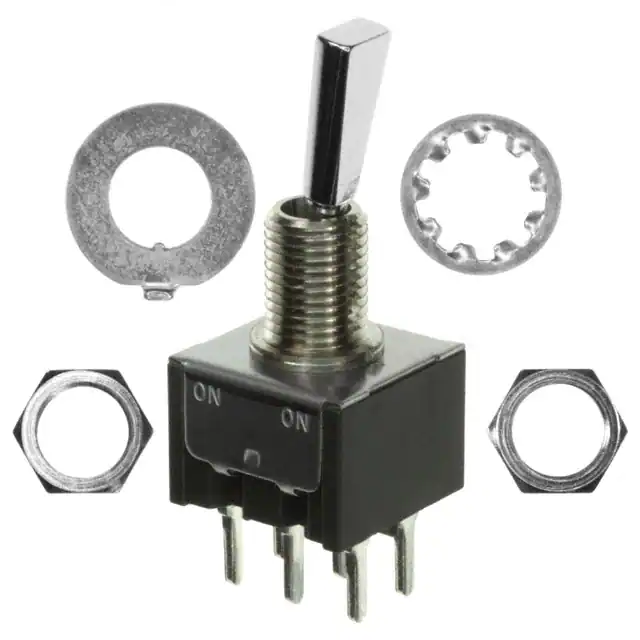

M2022ES1W03SWITCH TOGGLE DPDT 6A 125V |
4,978 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B15EPSWITCH TOGGLE SPDT 0.4VA 28V |
3,524 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
