| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1NT1-4SWITCH TOGGLE SPST-NC 10A 125V |
4,380 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST-NC | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -40°C ~ 71°C |
|
5-6437630-0AWTR1504 = POWER TOGGLE |
1,162 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
AWTR1504SWITCH TOGGLE DPDT |
2,974 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
2MT1-7TOGGLE SWITCHES SWITCH TOGGLE |
4,998 |
|
Datasheet |
MT | Bulk | Active | Panel Mount | DPDT | 5A (DC) | - | 28 V | Mom-Off-Mom | Standard Round | 16.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.110" (2.8mm) | 15/32-32 | Circular - 12.45mm Dia | - | -40°C ~ 85°C |
|
|
3-1393247-9SWITCH TOGGLE SPST |
3,755 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
11TW1-1ASEALED OI SWITCH |
4,668 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
200MSP1T1B1M2QEHSWITCH TOGGLE SPDT 3A 120V |
1,000 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
4,168 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T2B4M7QESWITCH TOGGLE SPDT 5A 120V |
4,843 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200UDP1T1A1M2RESWITCH TOGGLE DPDT 0.4VA 20V |
2,709 |
|
Datasheet |
200U | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS6T1B1M1QESWITCH TOGGLE SPST 3A 120V |
2,018 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 3A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Process Sealed | -30°C ~ 85°C |
|
|
GT12MSCBETRSWITCH TOGGLE SPST 0.4VA 20V |
4,963 |
|
Datasheet |
GT | Tape & Reel (TR) | Active | Surface Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST246D00SWITCH TOGGLE DPDT 20A 125V |
2,514 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|

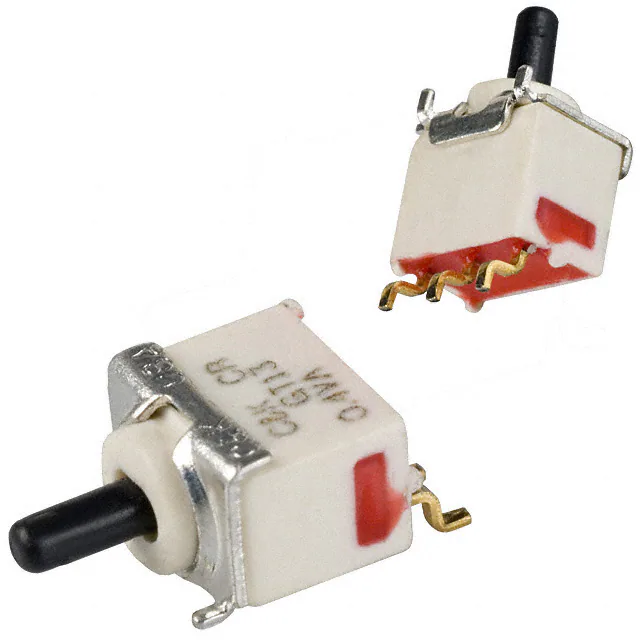

GT13MSABESWITCH TOGGLE SPDT 0.4VA 20V |
1,760 |
|
Datasheet |
GT | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1004P1T1B1M1QEHSWITCH TOGGLE 4PDT 5A 120V |
4,915 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101SD1CGESWITCH TOGGLE SPDT 7.5A 125V |
2,292 |
|
Datasheet |
E | Tray | Active | Through Hole | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SYZQESWITCH TOGGLE SPDT 5A 120V |
3,716 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

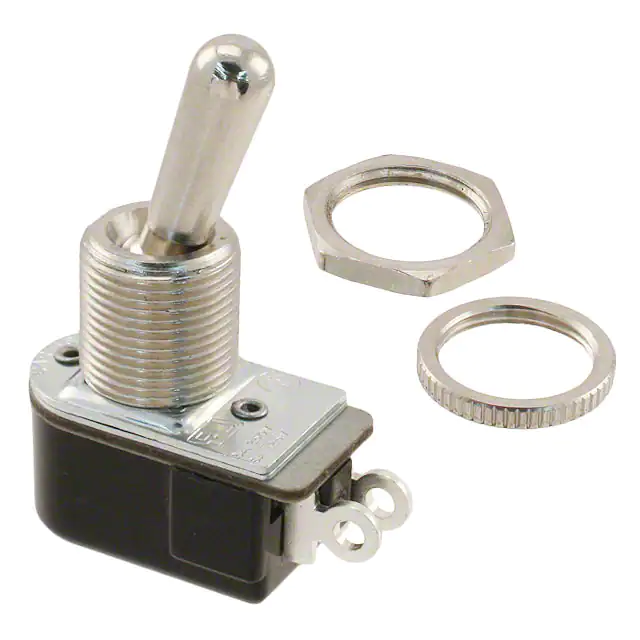

110-73SWITCH TOGGLE SPST 6A 125V |
2,705 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
ST34RE00SWITCH TOGGLE 3PST 24A 125V |
1,379 |
|
Datasheet |
ST3 | Bulk | Active | Panel Mount | 3PST | 24A (AC) | 125 V | - | On-Off | Standard Round | 21.70mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
S31SWITCH TOGGLE 3PST 20A 125V |
1,779 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
