| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT102SSQSWITCH TOGGLE SPST 15A 277V |
3,758 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPST | 15A (AC/DC) | 277 V | 28 V | On-Off | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
5639AB3VSWITCH TOGGLE SPDT 6A 125V |
4,455 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 15.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
12TW1-3SWITCH TOGGLE DPDT 5A 125V |
2,000 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
1TL1-2DSWITCH TOGGLE SPST 15A 125V |
3,637 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

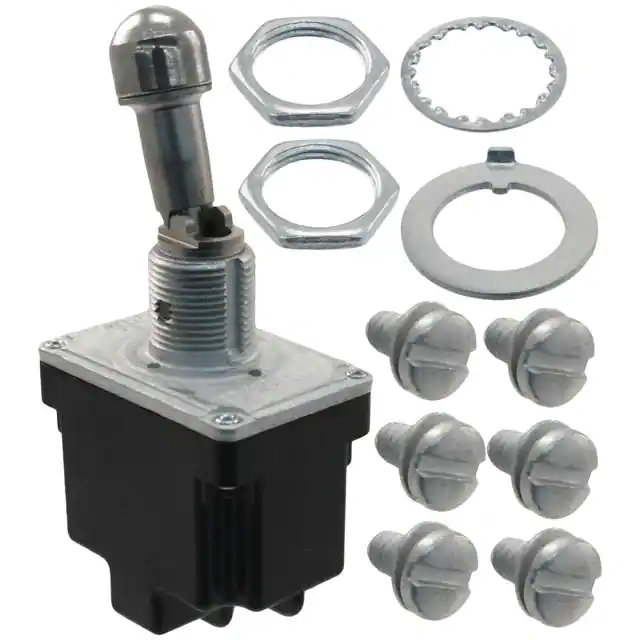

2TL1-2DSWITCH TOGGLE DPST 15A 125V |
1,836 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
2TL1-3DSWITCH TOGGLE DPDT 15A 125V |
3,187 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
2TL1-50KSWITCH TOGGLE DPDT 10A 125V |
4,021 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

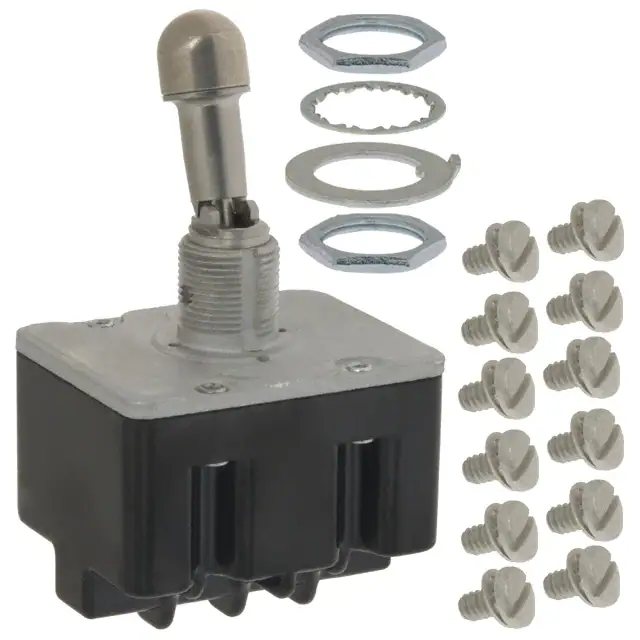

4TL1-3DSWITCH TOGGLE 4PDT 15A 125V |
1,548 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12TW1-3DSWITCH TOGGLE DPDT 5A 125V |
2,676 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12TW1-10ASWITCH TOGGLE SP3T 5A 125V |
3,737 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SP3T | 5A (AC) | 125 V | - | On-On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
122462VX778SWITCH TOGGLE DPDT 4A 125V |
1,658 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SW-T3-2B-A-A3-S1SWITCH TOGGLE SPDT 3A 125V |
4,077 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPDT | 3A (AC) | 125 V | - | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | M5 x 0.5 | Circular - 5.00mm Dia | - | -25°C ~ 85°C |
|
SW-T2-4E-B-A2-MA2SWITCH TOGGLE DPDT 6A 125V |
2,414 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 11.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | - | -25°C ~ 85°C |
|
SW-T2-4E-A-A2-MA2SWITCH TOGGLE DPDT 6A 125V |
2,840 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 11.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.00mm Dia | - | -25°C ~ 85°C |
|
SW-T1-2E-B-K1SWITCH TOGGLE SPDT 15A 125V |
4,923 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
100SP3T2B9M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,957 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
4,265 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP4T3B1M2REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,278 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T7B13M2QESWITCH TOGGLE SPDT 5A 120V |
2,455 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 13.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMSP1T1A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,481 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
