| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP1T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
4,039 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP3T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
3,754 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWSP3T1B4M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,654 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T1-4E-B-K2ASWITCH TOGGLE DPDT 15A 125V |
4,576 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|

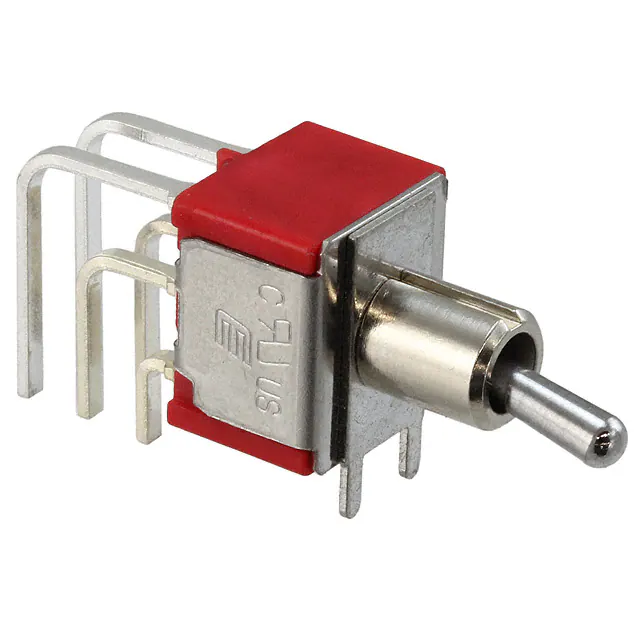

100DP1T2B4M7QESWITCH TOGGLE DPDT 5A 120V |
4,009 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMSP1T1A1M7QESWITCH TOGGLE SPDT 3A 120V |
2,081 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST14DD10SWITCH TOGGLE SPDT 20A 125V |
2,046 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 13.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
MN11S2A1W01SWITCH TOGGLE |
1,381 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN11SS1W03SWITCH TOGGLE |
3,720 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
ST145D00SWITCH TOGGLE SPDT 20A 125V |
3,660 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
M2011SS1W01/CUL-N983SWITCH TOGGLE |
1,158 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SS2W13SWITCH TOGGLE |
1,813 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
2M1-SP5-T1-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
4,588 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP1-T1-B1-M1QESWITCH TOGGLE DPDT 5A 125V |
4,503 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN11ES1W01SWITCH TOGGLE |
3,750 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN11SD3W01SWITCH TOGGLE 6A 125V |
4,241 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | - | 13.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | - |
|
7162CSWITCH TOGGLE SPDT 6A 125V |
4,955 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | - | - | -10°C ~ 65°C |
|

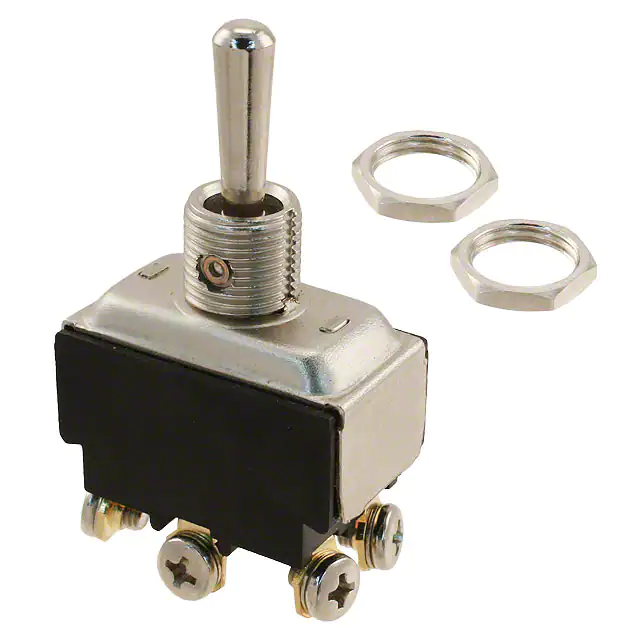

ST26KD00SWITCH TOGGLE DPDT 20A 125V |
3,054 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
MN11LL1W01SWITCH TOGGLE |
3,406 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12S2A2G40SWITCH TOGGLE |
2,868 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
