| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP5T1B3M6RESWITCH TOGGLE SPDT 0.4VA 20V |
1,623 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T2B1M6QEHSWITCH TOGGLE DPDT 5A 120V |
1,781 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN11S3A1W03BUSHING MOUNT MINIATURE TOGGLE |
3,035 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
200MDP1T2B2M7RESWITCH TOGGLE DPDT 0.4VA 20V |
4,833 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP1-T1-B4-VS5QESWITCH TOGGLE SPDT 5A 125V |
2,061 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP1-T1-B1-VS3QESWITCH TOGGLE SPDT 5A 125V |
2,807 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP1-T2-B4-VS5QESWITCH TOGGLE SPDT 5A 125V |
2,854 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T6B11M3RESWITCH TOGGLE SPDT 0.4VA 20V |
4,848 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P1T2B8M1QEHSWITCH TOGGLE 4PDT 5A 120V |
2,678 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P1T1B8M1QEHSWITCH TOGGLE 4PDT 5A 120V |
1,847 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B7M6QEHSWITCH TOGGLE DPDT 3A 120V |
4,202 |
|
Datasheet |
200 | Tray | Active | Panel Mount, Right Angle | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SD3G03SWITCH TOGGLE SPDT 0.4VA 28V |
2,467 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022K2S1W01-HSWITCH TOGGLE DPDT 6A 125V |
2,732 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Gray Cap | -30°C ~ 85°C |
|
M2022KS1W01SWITCH TOGGLE DPDT 6A 125V |
1,261 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Lever for Cap | - | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T2B2M7RESWITCH TOGGLE DPDT 0.4VA 20V |
1,106 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1571920-4SWITCH TOGGLE SPDT 6A 125V |
4,750 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

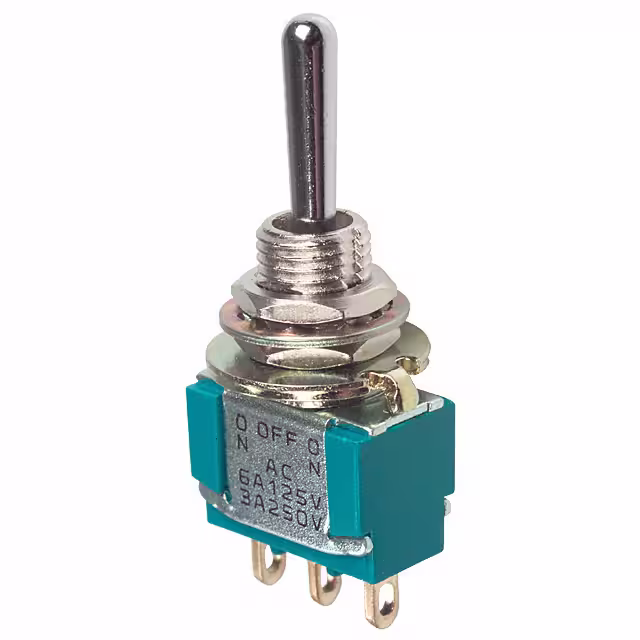

1571920-5SWITCH TOGGLE SPDT 6A 125V |
3,433 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1571920-7SWITCH TOGGLE SPDT 6A 125V |
1,916 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1571920-9SWITCH TOGGLE SPDT 6A 125V |
2,281 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

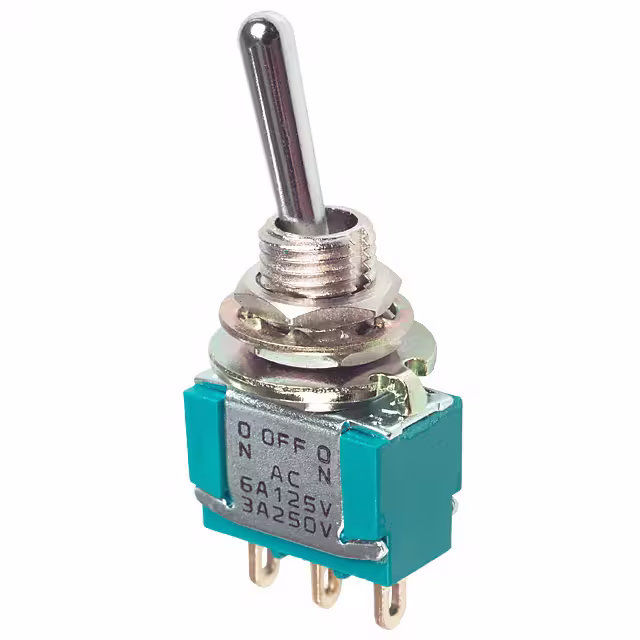

1-1571920-1SWITCH TOGGLE SPDT 6A 125V |
4,657 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
