| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022K1S1W01-ASWITCH TOGGLE DPDT 6A 125V |
3,168 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|

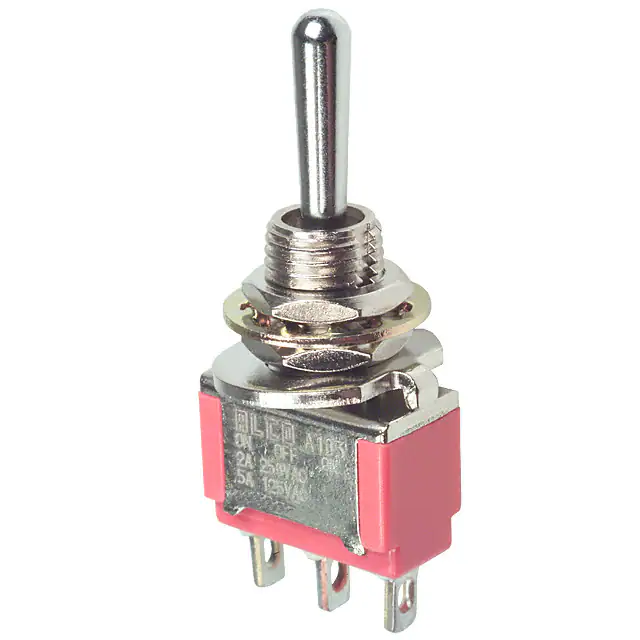

A103SYZQSWITCH TOGGLE SPDT 5A 120V |
2,988 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
1-1825142-8SWITCH TOGGLE SPDT 0.4VA 20V |
4,437 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
2M1-SP1-T1-B4-M6GESWITCH TOGGLE SPDT 5A 125V |
4,221 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B5M6REHSwitches |
2,796 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 8.13mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
200AWMDP3T1A2M2QESWITCH TOGGLE DPDT 3A 120V |
4,318 |
|
Datasheet |
200A | Bulk | Active | Through Hole | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1G03SWITCH TOGGLE SPDT 0.4VA 28V |
4,200 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP1T1B4M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,048 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP1T2B4M6RESWITCH TOGGLE DPDT 0.4VA 20V |
1,639 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T3B2M7RESWITCH TOGGLE DPDT 0.4VA 20V |
2,053 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B5M2QESWITCH TOGGLE DPDT 3A 120V |
4,350 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B7M2QESWITCH TOGGLE DPDT 3A 120V |
2,590 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A107SYZQSWITCH TOGGLE SPDT 5A 120V |
2,900 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
6-1825136-1SWITCH TOGGLE SPDT 5A 120V |
1,732 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 12.19mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MSP1-T1-B4-M6QESWITCH TOGGLE SPDT 3A 125V |
2,960 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 9.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2S1-MSP1-T3-B2-M6QESWITCH TOGGLE SPDT 3A 125V |
4,604 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 7.90mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2S1-MSP1-T2-B2-M6QESWITCH TOGGLE SPDT 3A 125V |
1,140 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
1-1825142-5SWITCH TOGGLE SPDT 0.4VA 20V |
2,889 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
200RDP2T1B1M2RSWITCH TOGGLE DPDT 0.4VA 48V |
2,025 |
|
Datasheet |
200R | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
100DP3T6B11M1RESWITCH TOGGLE DPDT 0.4VA 20V |
4,457 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
