| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MDP1T4B7M6QESWITCH TOGGLE DPDT 3A 120V |
3,256 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP6T3B8M6CESWITCH TOGGLE DP3T 3A 120V |
2,217 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | DP3T | 3A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 5.95mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1571922-3SWITCH TOGGLE SPDT 6A 125V |
4,319 |
|
Datasheet |
MTM Green | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 6.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
1571921-3SWITCH TOGGLE SPDT 6A 125V |
1,942 |
|
Datasheet |
MTM Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Standard Round | 6.90mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
4-1825137-7SWITCH TOGGLE SPDT 5A 120V |
3,754 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018ES1A40SWITCH TOGGLE SPDT 6A 125V |
3,945 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S1A/UCSWITCH TOGGLE SPST 15A 125V |
3,464 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
M2013S2S1W03SWITCH TOGGLE SPDT 6A 125V |
4,485 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013S2S1W01SWITCH TOGGLE SPDT 6A 125V |
3,032 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12S3A1W01BUSHING MOUNT MINIATURE TOGGLE |
4,707 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
100DP4T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V |
1,437 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWSP4T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
4,067 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

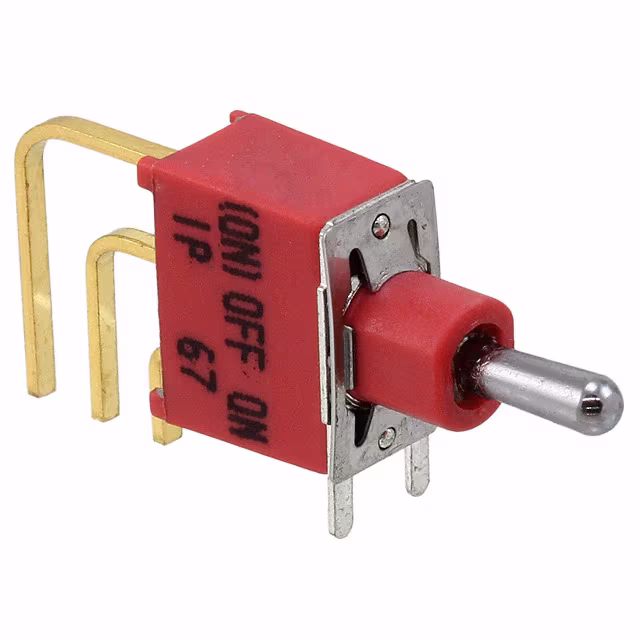

4-1825142-2SWITCH TOGGLE SPDT 0.4VA 20V |
3,022 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
100DP1T8B13M2RESWITCH TOGGLE DPDT 0.4VA 20V |
1,910 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 17.98mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200RDP1T1B1M6RSWITCH TOGGLE DPDT 0.4VA 48V |
3,483 |
|
Datasheet |
200R | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 6.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
M2011B2B3W01-VASWITCH TOGGLE SPST 6A 125V |
2,689 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 18.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Black Cap | -30°C ~ 85°C |
|
A103SYCBSWITCH TOGGLE SPDT 0.4VA 20V |
1,993 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
C3900BA-2HEXSWITCH TOGGLE SPST 20A 125V |
4,901 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
200MDP2T3B4M6RESWITCH TOGGLE DPDT 0.4VA 20V |
1,526 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T8B13M51REHSWITCH TOGGLE SPDT 0.4VA 20V |
3,927 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Wire Wrap | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
