| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATE1DGRA1SWITCH TOGGLE SPDT 0.4VA 20V |
4,231 |
|
Datasheet |
ATE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1571925-4SWITCH TOGGLE SPDT 6A 125V |
1,997 |
|
Datasheet |
MTF Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Flatted | 12.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
100AWDP3T1B4M7QESWITCH TOGGLE DPDT 5A 120V |
4,290 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B6VS2QESWITCH TOGGLE DPDT 3A 120V |
2,461 |
|
Datasheet |
200 | Tray | Active | Through Hole | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825139-2SWITCH TOGGLE DPDT 0.4VA 20V |
2,435 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236CDBFSWITCH TOGGLE SPDT 0.4VA 20V |
3,792 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
100DP3T1B1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
2,658 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T9B1M7RESWITCH TOGGLE DPDT 0.4VA 20V |
4,914 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 21.34mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1K1B25M1RESWITCH TOGGLE SPDT 0.4VA 20V |
3,594 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP12B1M2QTSWITCH TOGGLE SPDT 3A 125V |
2,229 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP27T7M2QTSWITCH TOGGLE SPDT 5A 125V |
3,365 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|

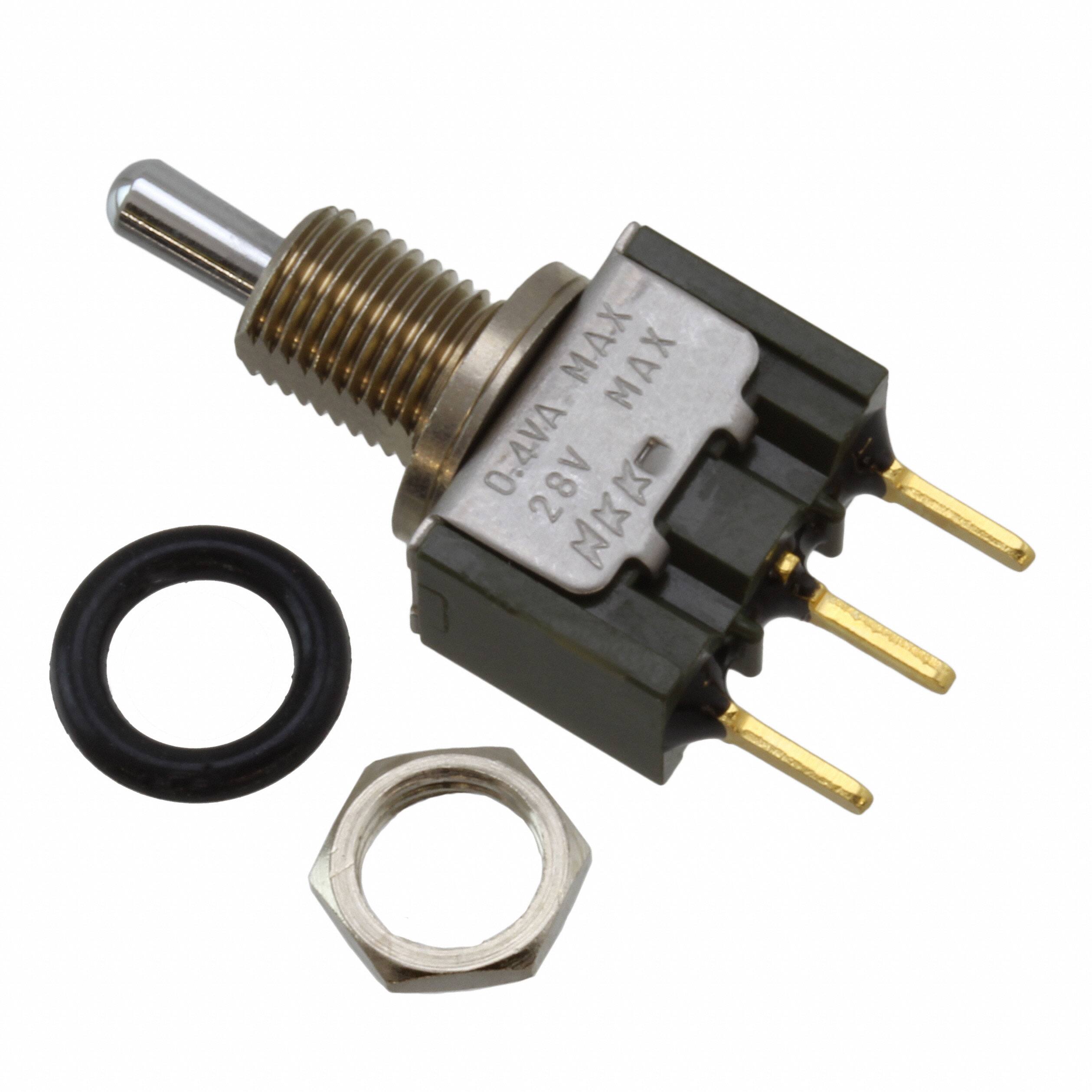

M2018S3D3G03SWITCH TOGGLE SPDT 0.4VA 28V |
1,139 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1K1B25M2QESWITCH TOGGLE DPDT 5A 120V |
2,601 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T6B11VS5REHSWITCH TOGGLE DPDT 0.4VA 20V |
4,588 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B12M7RESWITCH TOGGLE DPDT 0.4VA 20V |
2,138 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200RDP3T1B1M2RSWITCH TOGGLE DPDT 0.4VA 48V |
3,926 |
|
Datasheet |
200R | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
100AWDP4T1B4M6QESWITCH TOGGLE DPDT 5A 120V |
4,216 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE205SD1CQSWITCH TOGGLE DPDT 5A 120V |
4,305 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
200MSP2T1B6M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,875 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B15M3QEHSWITCH TOGGLE DP3T 5A 120V |
1,463 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
