| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1825139-9SWITCH TOGGLE DPDT 5A 120V |
1,318 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

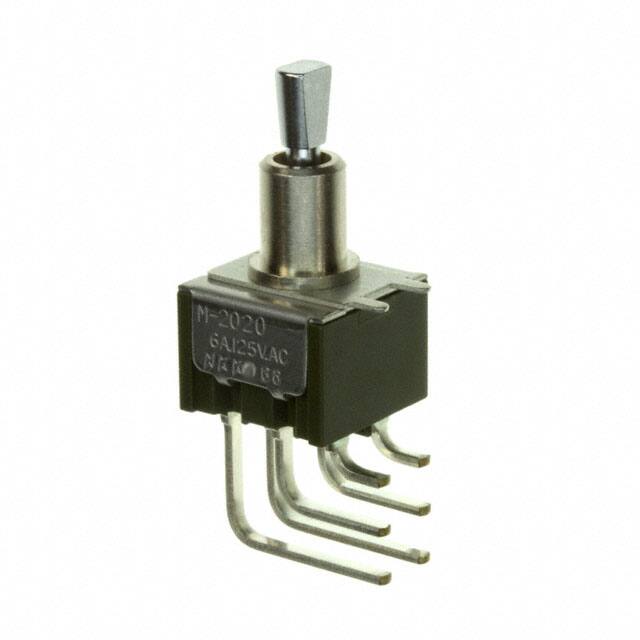

M2024E2S2W40SWITCH TOGGLE SP3T 6A 125V |
3,343 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2028SS1W30SWITCH TOGGLE DPDT 6A 125V |
3,761 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028S3A2G45SWITCH TOGGLE DPDT 0.4VA 28V |
3,775 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 8.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8A1061-ZSWITCH TOGGLE SPDT 6A 125V |
2,596 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
34ASP12B4M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,654 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
B12JP-JCSWITCH TOGGLE SPDT 0.4VA 28V |
2,482 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
7101SYW3QESWITCH TOGGLE SPDT 5A 120V |
1,450 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12EA2W13BRACKET PC MOUNT MINIATURE TOGGL |
2,802 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
A22JWSWITCH TOGGLE DPDT 0.4VA 28V |
4,662 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
T115D-AFSWITCH TOGGLE SPDT 15A 250V |
1,902 |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | SPDT | 15A (AC/DC) | 250 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP40 | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -25°C ~ 70°C |
|
|
1003P1T6B11M1QESWITCH TOGGLE 3PDT 5A 120V |
2,528 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1571924-3SWITCH TOGGLE SPDT 6A 125V |
1,932 |
|
Datasheet |
MTE Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
7103L2YZQESWITCH TOGGLE SPDT 5A 120V |
1,077 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B2-VS4RESWITCH TOGGLE DPDT 0.4VA 20V |
2,590 |
|
Datasheet |
2M | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2SS-MSP1-T3-B4-M61RESWITCH TOGGLE SPDT 0.4VA 20V |
4,718 |
|
Datasheet |
2S | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.14mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2S1-MSP3-T1-B4-M7RE/2M1T17SWITCH TOGGLE SPDT 0.4VA 20V |
2,821 |
|
Datasheet |
2S | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 9.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2MS-WSP1-T1-B1-M7KESWITCH TOGGLE SPDT 0.4VA 20V |
2,950 |
|
Datasheet |
2M | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.69mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MSP3-T117-B40F-M7GESWITCH TOGGLE SPDT 3A 125V |
1,289 |
|
Datasheet |
2S | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC) | 125 V | 28 V | On-Off-On | Standard Round | 9.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2SS-MSP1-P2-B4-M6GESWITCH TOGGLE SPDT 3A 125V |
4,596 |
|
Datasheet |
2S | Bulk | Active | Through Hole, Right Angle | SPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 6.81mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
