| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2026KS1W01SWITCH TOGGLE SP3T 6A 125V |
1,350 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Lever for Cap | - | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2022SD3W03/USWITCH TOGGLE DPDT 6A 125V |
4,890 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013BB1W01SWITCH TOGGLE SPDT 6A 125V |
2,597 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018SD3W01SWITCH TOGGLE SPDT 6A 125V |
3,934 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SA2W03SWITCH TOGGLE DPDT 6A 125V |
2,881 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8A1041-ZSWITCH TOGGLE SPDT 6A 125V |
1,606 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
1-1571920-6SWITCH TOGGLE DPDT 6A 125V |
2,384 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

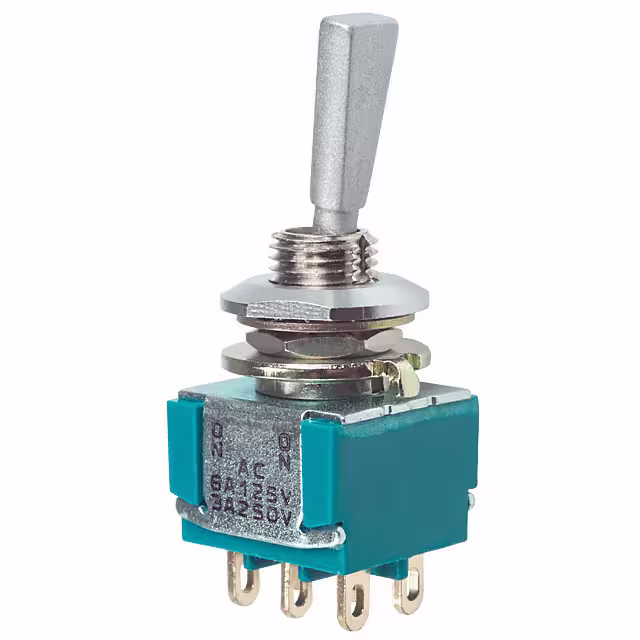

1-1571925-6SWITCH TOGGLE DPDT 6A 125V |
2,102 |
|
Datasheet |
MTF Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Flatted | 12.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2-1571920-7SWITCH TOGGLE DPDT 6A 125V |
2,359 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1003P1T1B1M6QESWITCH TOGGLE 3PDT 5A 120V |
4,491 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T1B2M6QESWITCH TOGGLE 3PDT 5A 120V |
2,378 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T1B4M6QESWITCH TOGGLE 3PDT 5A 120V |
1,419 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T2B4M6QESWITCH TOGGLE 3PDT 5A 120V |
2,962 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B5-M7RESWITCH TOGGLE DPDT 0.4VA 20V |
1,551 |
|
Datasheet |
2M | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T6-B1-M1GESWITCH TOGGLE DPDT 5A 125V |
1,871 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Flatted | 12.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B4-M7KESWITCH TOGGLE DPDT 0.4VA 20V |
3,701 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T6-B2-M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,894 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Flatted | 12.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL36S010200SWITCH TOGGLE SPDT 500MA 48V |
3,366 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.90mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1571926-5SWITCH TOGGLE SPDT 6A 125V |
4,148 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.94mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
M2012SS1G06SWITCH TOGGLE SPDT 0.4VA 28V |
1,642 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
