| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2MS-WSP3-T1-B1-M1RESWITCH TOGGLE SPDT 0.4VA 20V |
1,140 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.69mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5239CDBSWITCH TOGGLE SPDT 0.4VA 20V |
4,702 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
34CMSP14B7V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,093 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP31B5M1GTSWITCH TOGGLE SPDT 5A 125V |
4,358 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
1-1571920-5SWITCH TOGGLE DPDT 6A 125V |
3,511 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
ZL39P010100TOGGLE SWITCH ZL PCB MOUNT |
3,481 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | 500mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.90mm Dia | - | -30°C ~ 85°C |
|

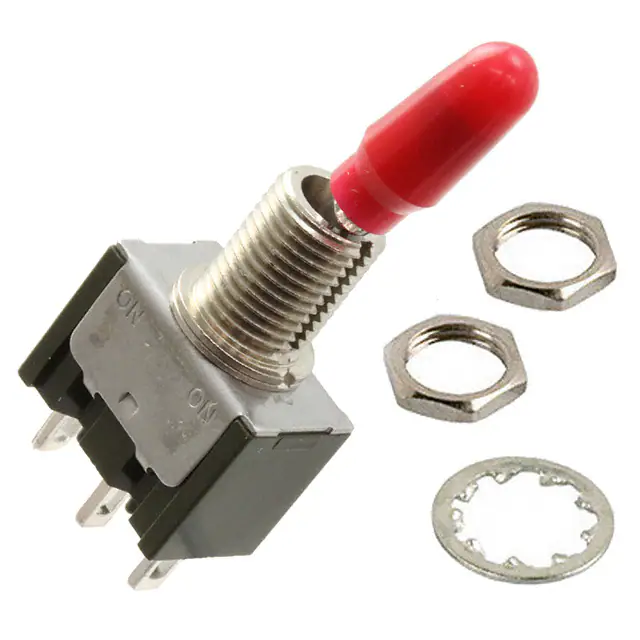

M2012SS1W01-BCSWITCH TOGGLE SPDT 6A 125V |
3,931 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
1825139-1SWITCH TOGGLE DPDT 5A 120V |
1,875 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4631C22TOGGLE SWITCH 4400 6A 125V |
1,930 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12SS1W01-BABUSHING MOUNT MINIATURE TOGGLE |
3,024 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SS1W01-CCBUSHING MOUNT MINIATURE TOGGLE |
4,334 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
DC100-PB-BSWITCH TOGGLE SPDT 10A 125V |
3,597 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC101-PB-BSWITCH TOGGLE SPDT 10A 125V |
3,985 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DB100-PB-BSWITCH TOGGLE SPDT 10A 125V |
4,135 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
34ADP45B1M1RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,718 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 21.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP1LM1QTSWITCH TOGGLE SPDT 5A 125V |
1,187 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
MTA106HSWITCH TOGGLE SPDT 6A 125V |
1,780 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1003P1T7B13M2QESWITCH TOGGLE 3PDT 5A 120V |
4,342 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 13.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T8B13M1QESWITCH TOGGLE 3PDT 5A 120V |
3,367 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL39W005018SWITCH TOGGLE SPDT 0.4VA 20V |
2,812 |
|
Datasheet |
TL | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
