| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B12KWSWITCH TOGGLE SPDT 0.4VA 28V |
2,959 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B13JVSWITCH TOGGLE SPDT 0.4VA 28V |
1,358 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

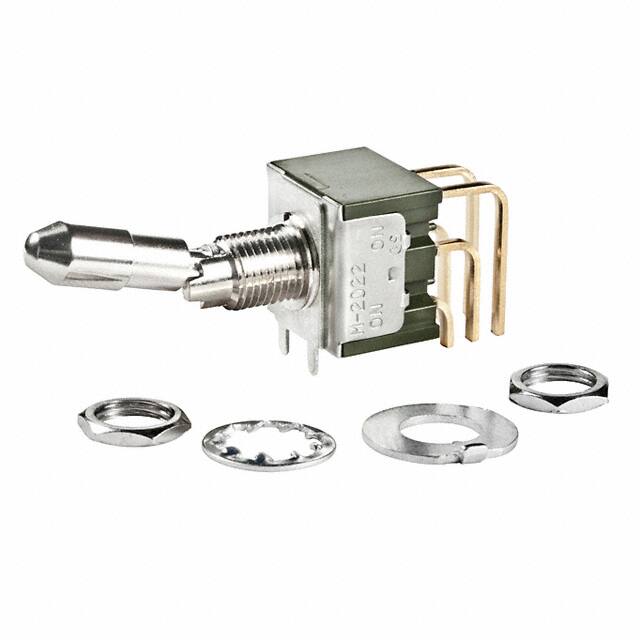

M2022LL1G45SWITCH TOGGLE DPDT 0.4VA 28V |
4,913 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22JH/328SWITCH TOGGLE DPDT 0.4VA 28V |
3,495 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Low Temperature Lubricant | -30°C ~ 85°C |
|
|
TL36P010000TOGGLE SWITCH SMT TL PCB MOUNT |
1,733 |
|
Datasheet |
TL | Bulk | Active | Through Hole | SPDT | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
1571926-3SWITCH TOGGLE SPDT 6A 125V |
1,181 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.94mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MN13ES1W01BUSHING MOUNT MINIATURE TOGGLE |
3,707 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
8D2011-ZSWITCH TOGGLE DPDT 6A 125V |
1,993 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B7-M7RESWITCH TOGGLE DPDT 0.4VA 20V |
1,843 |
|
Datasheet |
2M | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP16T1M7QTSWITCH TOGGLE DPDT 5A 125V |
2,237 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Flatted | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ADP21B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,658 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34CMSP43B2M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,577 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5237ABSWITCH TOGGLE SPDT 6A 125V |
2,914 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
U13SYZQESWITCH TOGGLE SPDT 5A 120V |
2,841 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B1-M2WESWITCH TOGGLE DPDT |
4,460 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | - | - | - | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MDP2-T3-B1-M1QESWITCH TOGGLE DPDT 3A 125V |
4,779 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | DPDT | 3A (AC) | 125 V | 28 V | On-Mom | Standard Round | 7.90mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
|
2M1-2P1-T1-B1-M2WESWITCH TOGGLE DPDT |
1,515 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | - | - | - | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105K12V6KESWITCH TOGGLE SPDT 0.4VA 20V |
4,241 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A203MD9ABSWITCH TOGGLE DPDT 0.4VA 20V |
3,657 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
34BWDP12B4M6QTSWITCH TOGGLE DPDT 5A 125V |
4,564 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
