| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2018SS2W13SWITCH TOGGLE SPDT 6A 125V |
1,522 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012LL2W30SWITCH TOGGLE SPDT 6A 125V |
2,192 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3950CASWITCH TOGGLE DPST 20A 125V |
1,394 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Flatted | 14.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
34ADP11B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,395 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
7103L2YZBESWITCH TOGGLE SPDT 0.4VA 20V |
3,791 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013LL1W01SWITCH TOGGLE SPDT 6A 125V |
3,503 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12SA2W40ANGLE PC MOUNT MINIATURE TOGGLE |
3,773 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
1003P3T6B12VS5RESWITCH TOGGLE 3PDT 0.4VA 20V |
2,492 |
|
Datasheet |
100 | Bulk | Active | Through Hole | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A101KZQSWITCH TOGGLE SPDT 5A 120V |
4,139 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
1-1571924-2SWITCH TOGGLE SP3T 6A 125V |
4,222 |
|
Datasheet |
MTE Green | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 28 V | On-On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
|
1-1571924-4SWITCH TOGGLE DPDT 6A 125V |
3,694 |
|
Datasheet |
MTE Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
B28JWSWITCH TOGGLE DPDT 0.4VA 28V |
4,804 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13JP-JCSWITCH TOGGLE SPDT 0.4VA 28V |
3,940 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|

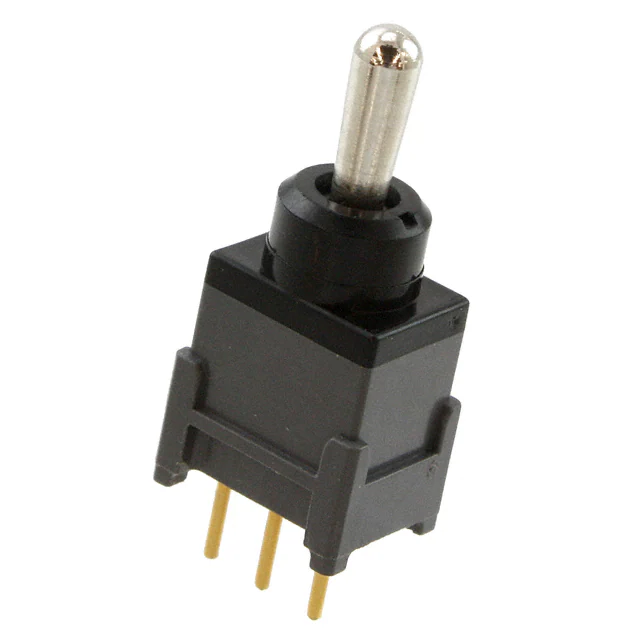

B19JPSWITCH TOGGLE SPDT 0.4VA 28V |
4,288 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B19JWSWITCH TOGGLE SPDT 0.4VA 28V |
4,619 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23KVSWITCH TOGGLE DPDT 0.4VA 28V |
1,234 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP11B1V2QTSWITCH TOGGLE DPDT 5A 125V |
3,310 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ADP12B3M1RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,851 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ADP18T7M1QTSWITCH TOGGLE DPDT 5A 125V |
4,324 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
|
34ADP18T7M2QTSWITCH TOGGLE DPDT 5A 125V |
1,070 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
