| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2021LL1G01SWITCH TOGGLE DPST 0.4VA 28V |
2,114 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE203MD1ABSWITCH TOGGLE SPDT 0.4VA 20V |
3,782 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
AE201MD1ABSWITCH TOGGLE DPDT 0.4VA 20V |
3,568 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|

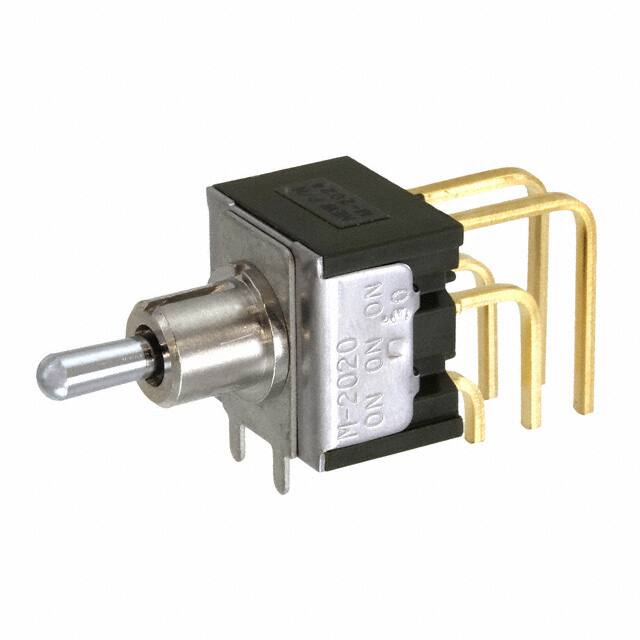

M2024S2A2G40SWITCH TOGGLE SP3T 0.4VA 28V |
1,493 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ADP23B1M1QTSWITCH TOGGLE DPDT 5A 125V |
3,762 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 13.97mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
TL37P000000SWITCH TOGGLE SPDT 0.4VA 20V |
1,332 |
|
Datasheet |
TL | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011SS1A01-BGSWITCH TOGGLE SPST 6A 125V |
2,376 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
|
|
M2011SS1A01-BASWITCH TOGGLE SPST 6A 125V |
2,881 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2012LL1W03SWITCH TOGGLE SPDT 6A 125V |
2,281 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
G3T13AB-SSWITCH TOGGLE SPDT 0.4VA 28V |
1,762 |
|
Datasheet |
G3T | Tube | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34ASP11B1M6GTSWITCH TOGGLE SPDT 5A 125V |
4,965 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
E105SD1CQESWITCH TOGGLE SPDT 7.5A 125V |
2,542 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 7.5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A201KZQSWITCH TOGGLE DPDT 5A 120V |
4,816 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
1571926-6SWITCH TOGGLE SPDT 6A 125V |
3,453 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.94mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
ZL31P000200SWITCH TOGGLE SPST 0.4VA 20V |
1,819 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 5.50mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.90mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP3-T8-B0-VS4PESWITCH TOGGLE SPDT 5A 125V |
1,737 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2032SD3W03-BASWITCH TOGGLE 3PDT 6A 125V |
2,228 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2024SD3A01SWITCH TOGGLE SP3T 6A 125V |
4,931 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ST26KD02SWITCH TOGGLE DPDT 20A 125V |
4,968 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 16.60mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
34ADP12B4M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
1,051 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
