| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6GM7B-B8SWITCH TOGGLE DPDT 17A 125V |
3,410 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 17A (AC) | 125 V | - | On-Off-On | Standard Round | 31.75mm | Non-Illuminated | - | - | - | - | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

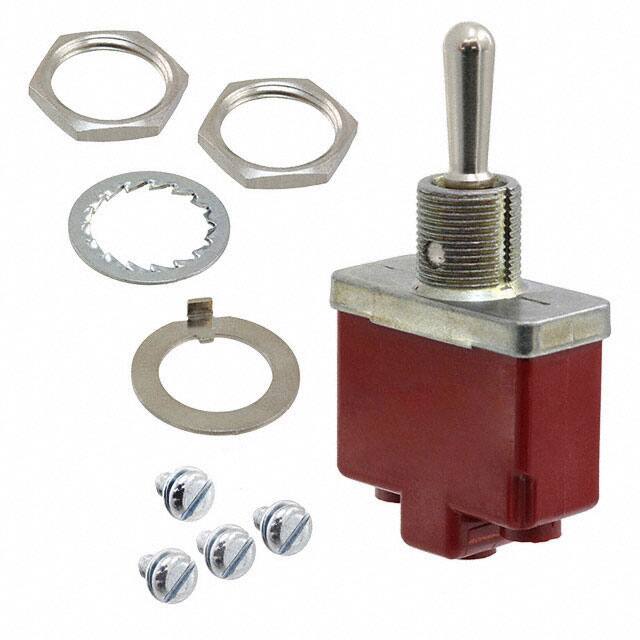

CT41001N000SWITCH TOGGLE DPST 10A 125V |
1,211 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPST | 10A (AC), 15A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
646H/2GSWITCH TOGGLE DPDT 15A 250V |
2,825 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 250 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Matte Black Finish | -20°C ~ 55°C |
|
|
3641NF/2ULSWITCH TOGGLE DPST 6A 125V |
1,492 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPST | 6A (AC), 12A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Sealed | -40°C ~ 85°C |
|
|
6651HTOGGLE SWITCH 600H HIGH POWER |
1,984 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S821/UC-AT401SSWITCH TOGGLE DPST 30A 125V |
4,448 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S821/UC-AT401HSWITCH TOGGLE DPST 30A 125V |
3,286 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S821/UC-AT401ASWITCH TOGGLE DPST 30A 125V |
2,088 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
9201SH3Z4QDSWITCH TOGGLE DPDT 6A 120V |
3,581 |
|
Datasheet |
9000 | Tray | Active | Panel Mount | DPDT | 6A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
9201SHZQESWITCH TOGGLE DPDT 6A 120V |
2,642 |
|
Datasheet |
9000 | Tray | Active | Panel Mount | DPDT | 6A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GER5S-78SWITCH TOGGLE SP3T 15A 125V |
1,468 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SP3T | 15A (AC) | 125 V | - | Mom-On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5246WWAB16X445TOGGLE SWITCH 5000 MINIATURE |
2,413 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5252CDBTOGGLE SWITCH 5000 MINIATURE |
2,663 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|

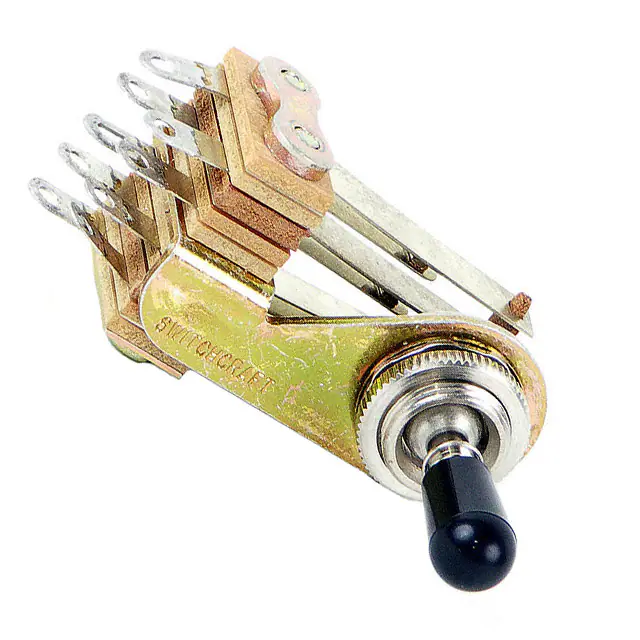

12015XSWITCH TOGGLE 3POS R/A 2B/2B |
1,077 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | - |
|

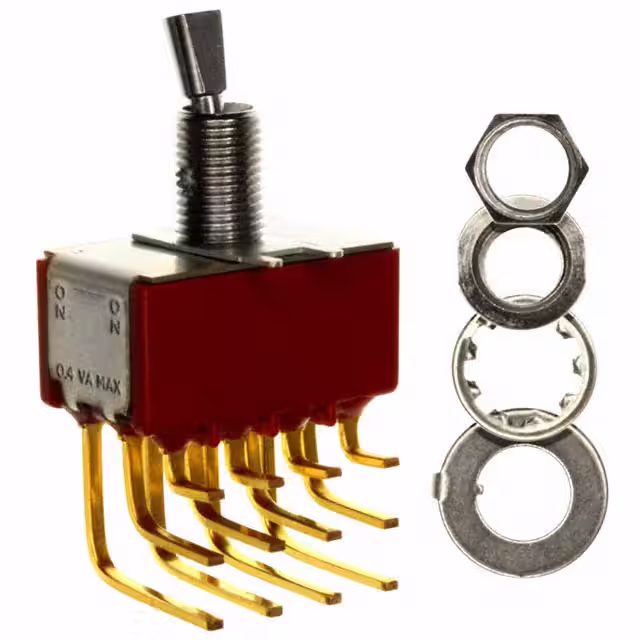

7401P4YAV2BESWITCH TOGGLE 4PDT 0.4VA 20V |
4,397 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
648H/2KTOGGLE SWITCH 600H HIGH POWER |
1,752 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6656H/2TOGGLE SWITCH 600H HIGH POWER |
2,571 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5246WWADBSWITCH TOGGLE DPDT 6A 125V |
2,599 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
647H/25TOGGLE SWITCH 600H HIGH POWER |
4,282 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
641H/2GTOGGLE SWITCH 600H HIGH POWER |
4,612 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
