| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IK250-73SWITCH TOGGLE 4PST 15A 125V |
4,711 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IK251-73SWITCH TOGGLE 4PST 15A 125V |
1,110 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7403TZGESWITCH TOGGLE 4PDT 0.4VA 20V |
2,418 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
|
TL22SDAG015D-AT401PFULLY ILLUMINATED TOGGLE |
1,421 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.00mm | Illuminated | LED, Amber | 2.1 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 55°C |
|
|
A121K12KZGSWITCH TOGGLE SPDT 6A 125V |
3,759 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121P32Y5ZQSWITCH TOGGLE SPDT 6A 125V |
2,541 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A131P32Y5ZQSWITCH TOGGLE SPDT 6A 125V |
4,431 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-Mom | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A221S1YZGSWITCH TOGGLE DPDT 6A 125V |
1,531 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226M1D9AQSWITCH TOGGLE DPDT 6A 125V |
1,362 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232L11YZQSWITCH TOGGLE SP3T 6A 125V |
1,219 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A232P41DCQSWITCH TOGGLE SP3T 6A 125V |
1,008 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Flatted | 6.35mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A232S1CWZG-M8SWITCH TOGGLE SP3T 6A 125V |
4,383 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A235T1TCQSWITCH TOGGLE SP3T 6A 125V |
1,891 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT223S1D1V30GSWITCH TOGGLE DPDT 6A 125V |
3,307 |
|
Datasheet |
WT | Bulk | Active | Through Hole | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.90mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
1TL1-31SWITCH TOGGLE SPDT 15A 125V |
1,861 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
1NT91-7SWITCH TOGGLE SPDT 10A 125V |
2,387 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|

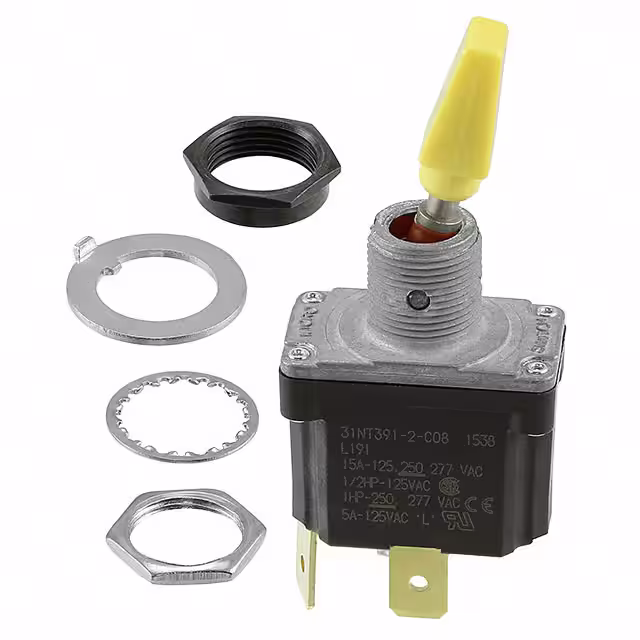

31NT391-2-C08SWITCH TOGGLE SPST 15A 125V |
1,353 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Flatted | 22.35mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Yellow Actuator | -40°C ~ 71°C |
|
|
STA251-53SWITCH TOGGLE DPST 15A 125V |
2,605 |
|
Datasheet |
ST | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 14.25mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | -40°C ~ 85°C |
|
|
5249WWAB16X445TOGGLE SWITCH 5000 MINIATURE |
3,964 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
STA2E1-73SWITCH TOGGLE DPST 16A 24V |
3,005 |
|
Datasheet |
ST | Bulk | Active | Panel Mount | DPST | 16A (DC) | - | 24 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | -40°C ~ 85°C |
