| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S429TSWITCH TOGGLE DPDT 15A 125V |
1,216 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
5246WCDBX386TOGGLE SWITCH 5000 MINIATURE |
3,245 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
7411SY9CQESWITCH TOGGLE DP3T 5A 120V |
3,578 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7415SPYWGESWITCH TOGGLE 4P3T 0.4VA 20V |
3,153 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4P3T | 0.4VA (AC/DC) | 20 V | 20 V | Mom-On-Mom | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
6GM5T-73SWITCH TOGGLE DPDT 15A 125V |
4,033 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5252ABTOGGLE SWITCH 5000 MINIATURE |
1,707 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5257ABTOGGLE SWITCH 5000 MINIATURE |
3,434 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
A123K12KZGSWITCH TOGGLE SPDT 6A 125V |
3,051 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1YV30BSWITCH TOGGLE DPDT 0.5VA 28V |
3,952 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1YZGSWITCH TOGGLE DPDT 6A 125V |
1,608 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227S1YV70QSWITCH TOGGLE DPDT 6A 125V |
3,183 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5636CDGBX408SWITCH TOGGLE SPDT 0.4VA 20V |
2,092 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
6GM5R-C3SWITCH TOGGLE DPDT 15A 125V |
3,911 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 38.10mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

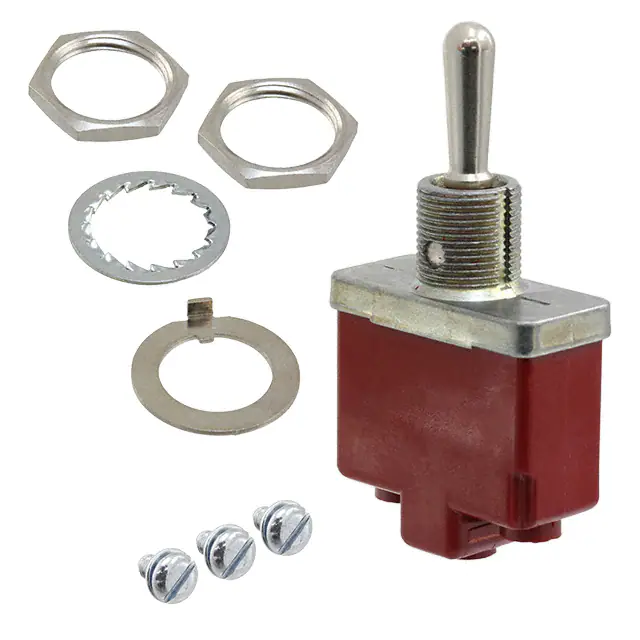

CT33001N020SWITCH TOGGLE SPST 10A 125V |
4,279 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | 10A (AC), 15A (DC) | 125 V | 28 V | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
641SH/2X2613TOGGLE SWITCH 600H HIGH POWER |
4,665 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
649H/2GSWITCH TOGGLE DPDT 10A 250V |
1,489 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Matte Black Finish | -20°C ~ 55°C |
|
|
5646AKB2VTOGGLE SWITCH 5000 MINIATURE |
4,450 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5259WWCDB16X514TOGGLE SWITCH 5000 MINIATURE |
4,783 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 13.10mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
IK254-73/HDW ASSMSWITCH TOGGLE 4PDT 15A 125V |
1,566 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IK254-73/POLYSWITCH TOGGLE 4PDT 15A 125V |
4,482 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
