Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022S3A2W40SWITCH TOGGLE DPDT 6A 125V |
1,294 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 8.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SA1W30SWITCH TOGGLE DPDT 6A 125V |
1,661 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SD1W01-BASWITCH TOGGLE DPDT 6A 125V |
3,422 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2026SS1W30SWITCH TOGGLE SP3T 6A 125V |
3,128 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2032SA1W08SWITCH TOGGLE 3PDT 6A 125V |
4,376 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2033SA1W08SWITCH TOGGLE 3PDT 6A 125V |
3,495 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2038S2S1G03SWITCH TOGGLE 3PDT 0.4VA 28V |
3,348 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

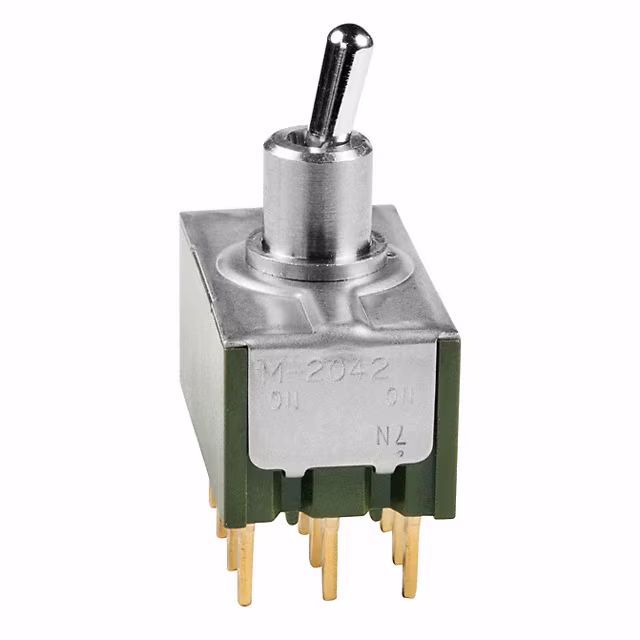

M2042S2A2G03SWITCH TOGGLE 4PDT 0.4VA 28V |
1,257 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | 4PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2042SA1W08SWITCH TOGGLE 4PDT 6A 125V |
3,240 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2112TCFW13SWITCH TOGGLE SPDT 6A 125V |
3,428 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2112TCW02SWITCH TOGGLE SPDT 6A 125V |
2,422 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123TCFW13SWITCH TOGGLE DPDT 6A 125V |
4,826 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2T12S4A5G40/UCSWITCH TOGGLE SPDT 0.4VA 28V |
3,866 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W03SWITCH TOGGLE SPDT 6A 125V |
3,850 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G03/USWITCH TOGGLE SPDT 0.4VA 28V |
2,656 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5W03SWITCH TOGGLE SPDT 6A 125V |
4,727 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T13SA5W03SWITCH TOGGLE SPDT 6A 125V |
2,668 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5W03/USWITCH TOGGLE SPDT 6A 125V |
2,161 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

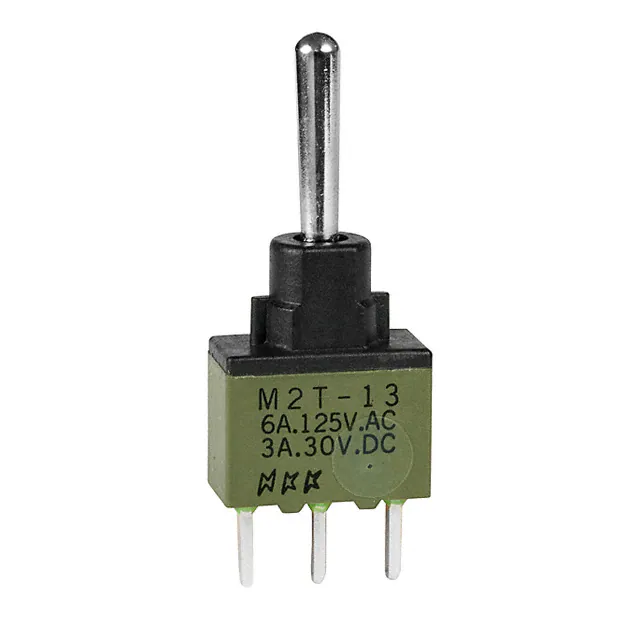

M2T13SA5W03/UCSWITCH TOGGLE SPDT 6A 125V |
1,803 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15SA5G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,530 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
