Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34ASP41B1M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,390 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP58T7M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,797 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
|
34CMSP14B2M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,815 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP31B1M1QTSWITCH TOGGLE SPDT 3A 125V |
2,686 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMDP12B4M1RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,984 |
|
Datasheet |
34D | Bulk | Active | - | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34EWMSP34M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,863 |
|
Datasheet |
34E | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34EWMSP51M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,363 |
|
Datasheet |
34E | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 10.80mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A9T14-0012SWITCH TOGGLE SPDT 50MA 60V |
2,225 |
|
Datasheet |
A9T | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 50mA (AC/DC) | 60 V | 60 V | Mom-Off-Mom | Standard Round | 7.00mm | Non-Illuminated | - | - | IP64 - Dust Tight, Water Resistant | PC Pin | Unthreaded | - | Sealed - Flux Protection | -20°C ~ 80°C |
|
1-1825143-9SWITCH TOGGLE DPDT 0.4VA 20V |
4,039 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
12TS95-10SWITCH TOGGLE SP3T 20A 125V |
4,518 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SP3T | 20A (AC) | 125 V | - | On-On-On | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | -54°C ~ 71°C |
|
12TS95127-7SWITCH TOGGLE DPDT 10A 125V |
1,473 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
|
12TS95-70SWITCH TOGGLE DPDT 20A 125V |
4,812 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-On-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
3-1825139-2SWITCH TOGGLE SP3T 5A 120V |
2,643 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7-6437630-6SWITCH TOGGLE SPDT 20A 125V |
1,781 |
|
Datasheet |
AW | Bulk | Obsolete | Panel Mount | SPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
|
2-1825136-5SWITCH TOGGLE SPDT 0.4VA 20V |
3,973 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

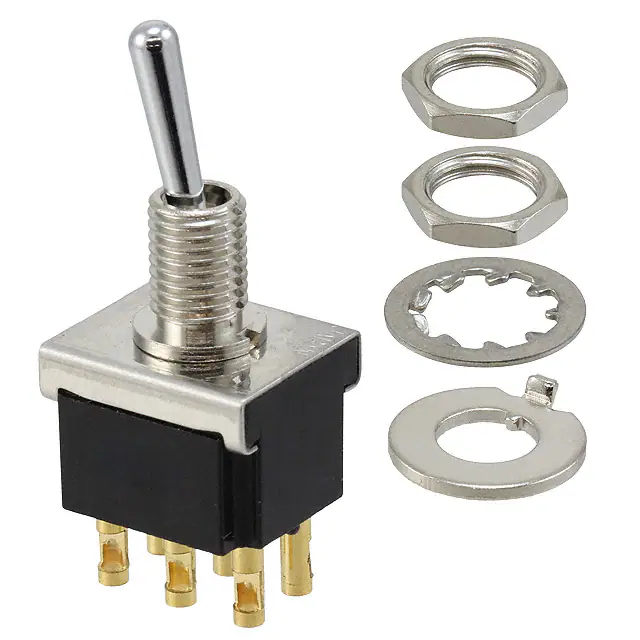

4-6437630-2SWITCH TOGGLE DPDT 6A 250V |
1,523 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC) | 250 V | - | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
|
GTB2B18CSWITCH TOGGLE SPDT 12A 125V |
2,698 |
|
Datasheet |
GTB | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | On-Mom | Standard Round | 16.20mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
GTS447D301HRSWITCH TOGGLE SPDT 16A 277V |
3,920 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 16A (AC) | 277 V | - | On-Off-On | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448Q101AHRSWITCH TOGGLE DPST-NC 16A 250V |
2,507 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST-NC | 16A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
|
GTS447G301HRSWITCH TOGGLE SPDT 16A 277V |
3,774 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 16A (AC) | 277 V | - | Mom-Off-Mom | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
