Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GTS447I101HRSWITCH TOGGLE SPDT 16A 277V |
2,352 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 16A (AC) | 277 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS447I301HRSWITCH TOGGLE SPDT 16A 277V |
3,439 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPDT | 16A (AC) | 277 V | - | On-Mom | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448S101AHRSWITCH TOGGLE DPST-NO 16A 250V |
1,137 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST-NO | 16A (AC) | 250 V | - | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448P101AHRSWITCH TOGGLE DPDT 12A 250V |
2,368 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448Q301AHRSWITCH TOGGLE DPST-NC 16A 250V |
3,430 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPST-NC | 16A (AC) | 250 V | - | On-Mom | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
GTS448E301AHRSWITCH TOGGLE DPDT 12A 250V |
1,047 |
|
Datasheet |
GTS448 | Bulk | Active | Panel Mount | DPDT | 12A (AC) | 250 V | - | On-Off-On | Flatted | 17.00mm | Non-Illuminated | - | - | IP56 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 85°C |
|
11TS95801-2-TNSWITCH TOGGLE 20A 125V |
1,945 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | - | 20A (AC) | 125 V | - | - | Standard Round | - | Non-Illuminated | - | - | - | - | - | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
AML25GBF8CA04GRSWITCH TOGGLE SP3T 3A 125V |
1,586 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | SP3T | 3A (AC), 2A (DC) | 125 V | 24 V | On-On-On | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | Jumper needed to achieve triple throw | - |
|
8B1021-ZSWITCH TOGGLE SPDT 6A 125V |
1,095 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|
|
8B1051-ZSWITCH TOGGLE SPDT 6A 125V |
3,719 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|

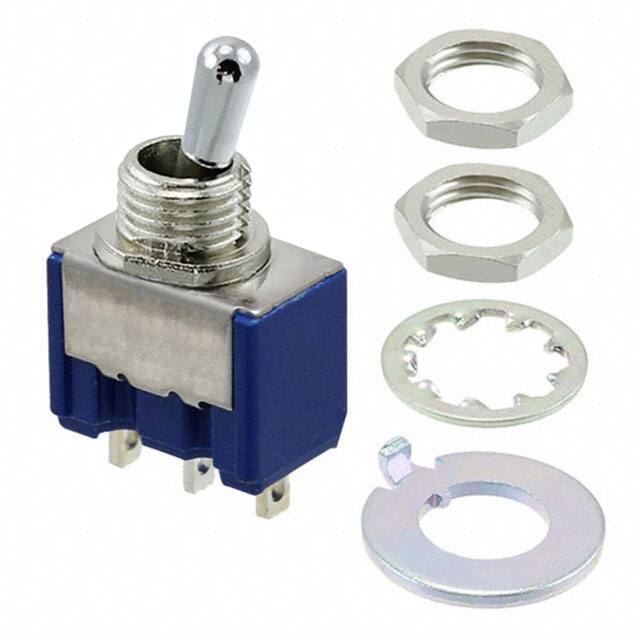

8B1061-ZSWITCH TOGGLE SPDT 6A 125V |
2,310 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|
8B2041-ZSWITCH TOGGLE DPDT 6A 125V |
3,394 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|

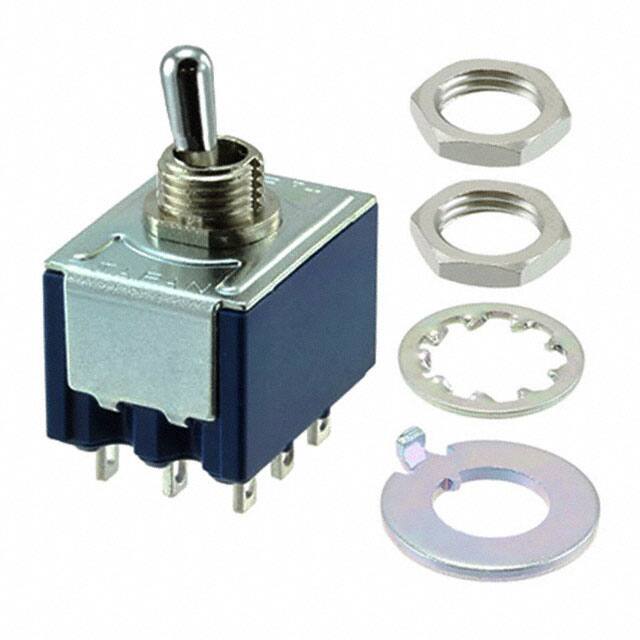

8B3021-ZSWITCH TOGGLE 3PDT 6A 125V |
1,039 |
|
Datasheet |
8B | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|
26ET31-2-GSWITCH TOGGLE DPDT 4A 28V |
2,014 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 28 V | On-Mom | Locking Lever | 25.90mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
12TW1-261SWITCH TOGGLE DPST-NO 5A 125V |
1,956 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPST-NO | 5A (AC) | 125 V | - | Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

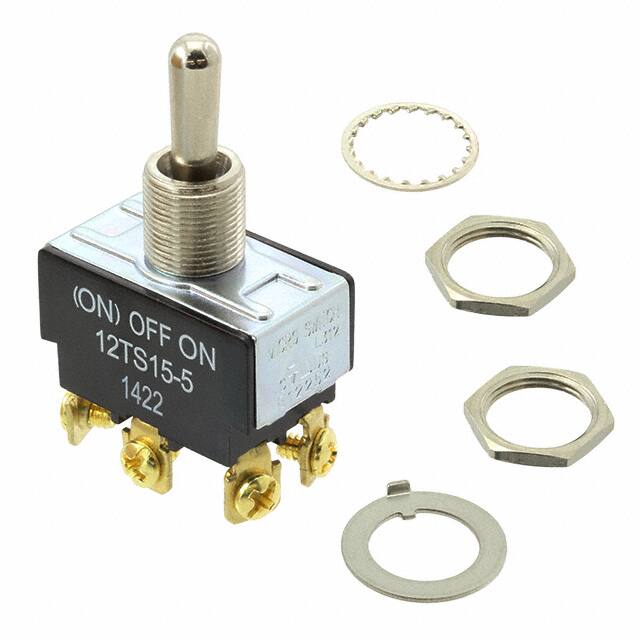

12TS15-5SWITCH TOGGLE DPDT 20A 125V |
2,735 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
11TS95-5SWITCH TOGGLE SPDT 20A 125V |
2,810 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
|
AML35FBC4AC01SWITCH TOGGLE DPST 15A 125V |
4,847 |
|
Datasheet |
AML35 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | 15A (AC) | 125 V | - | On-Off | Paddle | - | Illuminated | Neon, Red | 250 VAC | - | Solder, Quick Connect - 0.187" (4.7mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML23GBA2CA04SWITCH TOGGLE SP3T 3A 125V |
2,802 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | SP3T | 3A (AC), 2A (DC) | 125 V | 24 V | On-On-On | Paddle | - | Illuminated | Incandescent | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | Jumper needed to achieve triple throw | - |
|
|
AML23EBA2DA04SWITCH TOGGLE DPDT 100MA 125V |
2,472 |
|
Datasheet |
AML23 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | 100mA (AC/DC) | 125 V | 125 V | On-On-On | Paddle | - | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
