Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1825142-7SWITCH TOGGLE SPDT 0.4VA 20V |
1,719 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
1825136-3SWITCH TOGGLE SPDT 5A 120V |
3,641 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1825136-4SWITCH TOGGLE SPDT 0.4VA 20V |
4,046 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1825137-8SWITCH TOGGLE SPDT 0.4VA 20V |
4,308 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825136-5SWITCH TOGGLE SPDT 5A 120V |
4,404 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1825136-6SWITCH TOGGLE SPDT 5A 120V |
4,098 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2-1825136-3SWITCH TOGGLE SPDT 5A 120V |
2,275 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-6437630-5SWITCH TOGGLE SPDT 6A 250V |
2,085 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC) | 250 V | - | On-On | Locking Lever | 15.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
|
2-1825137-5SWITCH TOGGLE SPDT 5A 120V |
2,598 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825137-0SWITCH TOGGLE SPDT 0.4VA 20V |
1,738 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825139-0SWITCH TOGGLE DPDT 5A 120V |
3,896 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825192-6SWITCH TOGGLE 4PDT 3A 125V |
1,267 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | 4PDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.69mm | Non-Illuminated | - | - | Environment Sealed | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | - | -30°C ~ 85°C |
|
|
1520231-2SWITCH TOGGLE DPST 20A 250V |
1,648 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | 0°C ~ 55°C |
|
|
1520175-2SWITCH TOGGLE DPST 16A 125V |
3,437 |
|
Datasheet |
- | Bulk | Obsolete | - | DPST | 16A (AC) | 125 V | - | On-Off | Standard Round | 17.04mm | - | - | - | - | - | - | - | - | - |
|
|
54107SWITCH TOGGLE DPDT 25A 12V |
3,242 |
|
Datasheet |
54100 | Bulk | Obsolete | Panel Mount | DPDT | 25A (DC) | - | 12 V | On-Off-On | Flatted | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|

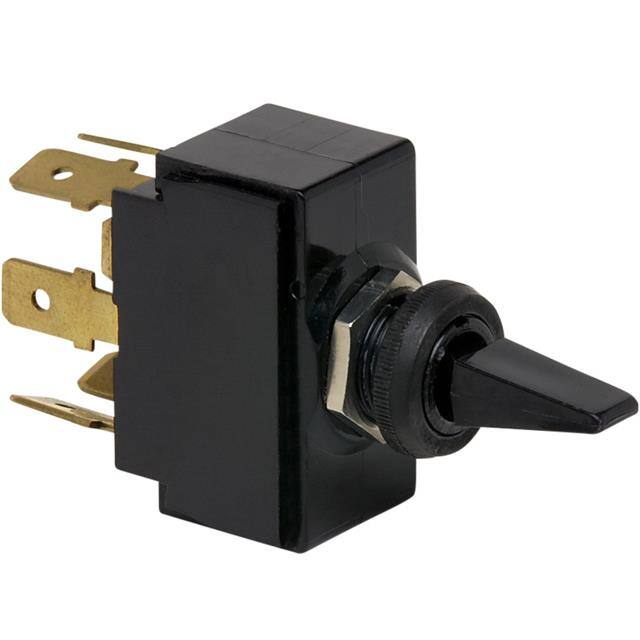

54107-01SWITCH TOGGLE DPDT 25A 12V |
4,902 |
|
Datasheet |
54100 | Bulk | Active | Panel Mount | DPDT | 25A (DC) | - | 12 V | On-Off-On | Flatted | 17.46mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
55057SWITCH TOGGLE DPDT 15A 24V |
1,782 |
|
Datasheet |
- | Bulk | Discontinued | Panel Mount | DPDT | 15A (DC) | - | 24 V | On-Off-On | Standard Round | 38.10mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
59024-100SWITCH TOGGLE SPST 25A 12V |
1,205 |
|
Datasheet |
59024 | Bulk | Obsolete | Panel Mount | SPST | 25A (DC) | - | 12 V | On-Off | Paddle | 25.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
59024-116SWITCH TOGGLE DPDT 25A 12V |
3,678 |
|
Datasheet |
59024 | Bulk | Obsolete | Panel Mount | DPDT | 25A (DC) | - | 12 V | On-On | Paddle | 25.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
7211P3D9V7BESSWITCH TOGGLE DPDT 0.4VA 20V |
1,777 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
