| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
712F/2L-005FAN AXIAL 70X15MM 12VDC RECT |
1,040 |
|
Datasheet |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 16.5 CFM (0.462m³/min) | - | Sintec | 15.00mm | Tubeaxial | Speed Sensor (Tach) | 25.0dB(A) | 600 mW | 3300 RPM | - | 3 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4414FGFAN AXIAL 119X25.4MM 24VDC WIRE |
3,559 |
|
Datasheet |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Sintec | 25.40mm | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 5 W | 2900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
614NLFAN AXIAL 60X25.4MM 24VDC WIRE |
2,079 |
|
Datasheet |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 12.4 CFM (0.347m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 16.0dB(A) | 900 mW | 2500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.145 lb (65.77 g) |
|
9RA1248P4G001FAN AXIAL 120X25MM 48VDC WIRE |
2,638 |
|
Datasheet |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 7.2 W | 4500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9G1212H401FAN AXIAL 119X25MM 12VDC WIRE |
3,792 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 3.72 W | 2850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
12038VA-48P-EA-00FAN AXIAL 120X38MM 48VDC WIRE |
3,801 |
|
Datasheet |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Auto Restart | - | - | - | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
_Series.jpg)
|
3412NGHFAN AXIAL 92X25.4MM 12VDC WIRE |
4,485 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|

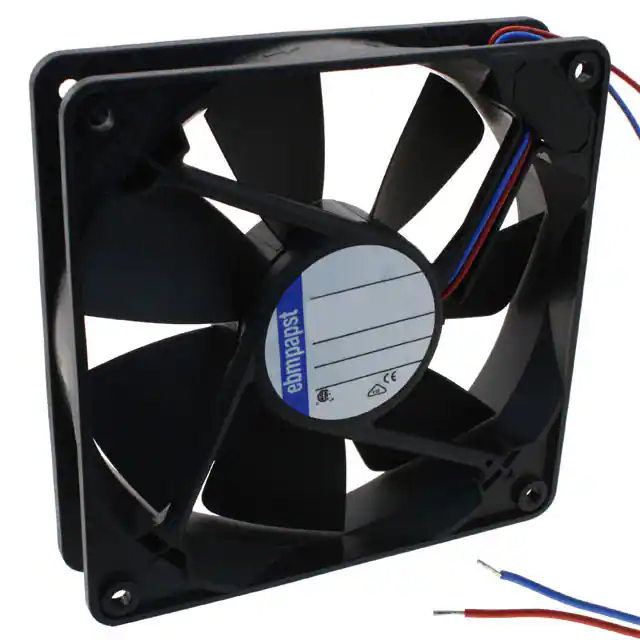

4412FGMFAN AXIAL 119X25.4MM 12VDC WIRE |
4,306 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.4 CFM (2.31m³/min) | - | Sintec | 25.40mm | Tubeaxial | - | 38.0dB(A) | 3.2 W | 2400 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
612N/2HFAN AXIAL 60X25.4MM 12VDC WIRE |
1,075 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.3 CFM (0.708m³/min) | - | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 1.8 W | 5600 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|

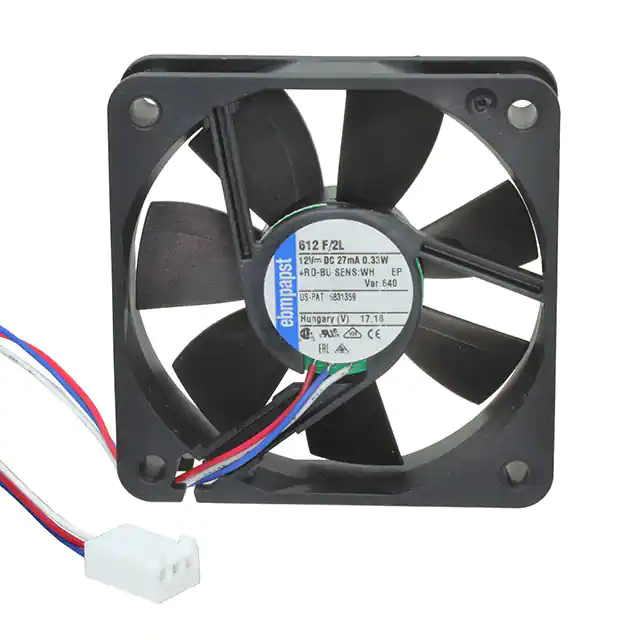

612F/2L-640FAN AXIAL 60X15MM 12VDC RECT |
3,589 |
|
Datasheet |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 8.8 CFM (0.246m³/min) | - | Sintec | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 11.0dB(A) | 300 mW | 2250 RPM | - | 3 Position Rectangular Connector | -4 ~ 185°F (-20 ~ 85°C) | IP20 | - |
|
OD1238-24HTBIP55FAN AXIAL 120X38MM 24VDC TERM |
3,529 |
|
Datasheet |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 124.1 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 12 W | 2895 RPM | CE, cURus, TUV, UR | 2 Terminals | -4 ~ 149°F (-20 ~ 65°C) | IP55 - Dust Protected, Water Resistant | - |
|
QFR1248GHE-SP01FAN AXIAL 120X38MM 48VDC WIRE |
4,513 |
|
Datasheet |
QFR | Box | Active | 48VDC | Square - 120mm L x 120mm H | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 24 W | 6000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.728 lb (330.22 g) |
|

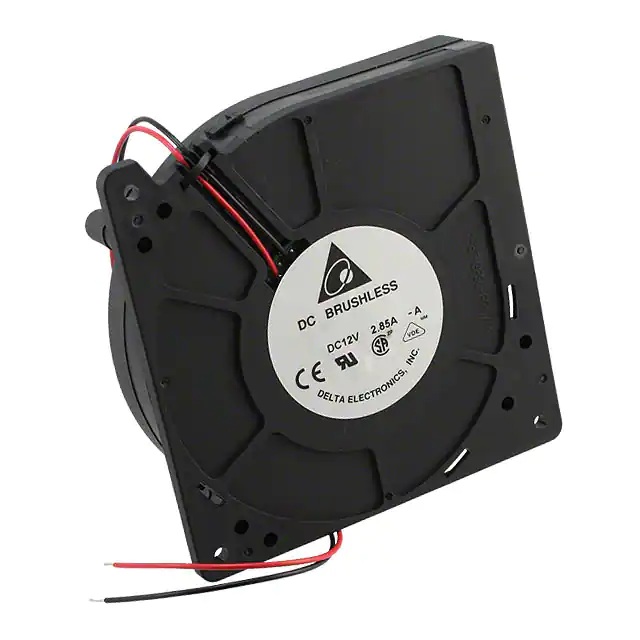

BFB1212EH-AFAN BLOWER 120X32MM 12VDC WIRE |
4,668 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 54.9 CFM (1.54m³/min) | 3.485 in H2O (868.1 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection | 62.0dB(A) | 28.44 W | 4000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.661 lb (299.82 g) |
|
OD1238-12HBIP69KFAN AXIAL 120X38MM 12VDC WIRE |
4,181 |
|
Datasheet |
OD1238-IP69K | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 6 W | 2895 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 0.572 lb (259.45 g) |
|
109BM24GC2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
3,015 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 28.9 CFM (0.809m³/min) | 1.129 in H2O (281.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.5dB(A) | 7.44 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
PFB0812DHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2,127 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 33 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
9RA0848G1001FAN AXIAL 80X38MM 48VDC WIRE |
3,156 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
BFB1212GH-AFAN BLOWER 120X32MM 12VDC WIRE |
2,929 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection | 65.0dB(A) | 39.6 W | 4400 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.661 lb (299.82 g) |
|
FFB1224HH-F00FAN AXIAL 120X25.4MM 24VDC WIRE |
2,683 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.7dB(A) | 6.72 W | 3100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
9RA0848P1G001FAN AXIAL 80X38MM 48VDC WIRE |
1,491 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
