| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8312MFAN AXIAL 80X32MM 12VDC WIRE |
1,008 |
|
Datasheet |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 28.3 CFM (0.792m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 34.0dB(A) | 1.8 W | 3000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.375 lb (170.1 g) |
|
PFB0924DHE-R00FAN AXIAL 92X38MM 24VDC WIRE |
3,635 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 66.5dB(A) | 34.8 W | 8000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.553 lb (250.84 g) |
|
4398FAN AXIAL 119X32MM 48VDC TERM |
2,071 |
|
Datasheet |
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 45.0dB(A) | 5 W | - | CE, CSA, UL, VDE | 2 Terminals | - | - | 0.5 lb (226.8 g) |
|
12038VA-24R-FU-06FAN AXIAL 120X38MM 24VDC WIRE |
2,500 |
|
Datasheet |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 243.7 CFM (6.82m³/min) | 1.500 in H2O (373.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.0dB | 35.52 W | 6400 RPM | CE, cULus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
8418NFAN AXIAL 80X25.4MM 48VDC WIRE |
4,761 |
|
Datasheet |
8400N | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 40.6 CFM (1.14m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2 W | 3100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
4312LFAN AXIAL 119X32MM 12VDC WIRE |
2,444 |
|
Datasheet |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 56.0 CFM (1.57m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 30.0dB(A) | 1.2 W | 1550 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.485 lb (219.99 g) |
|
OD1238-24HBVXEFAN AXIAL 120X38MM 24VDC WIRE |
2,932 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 60.4dB(A) | 46.3 W | 4925 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
4484FDFAN AXIAL 119X25.4MM 24VDC TERM |
3,906 |
|
Datasheet |
4400F | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 43.0dB(A) | 5 W | - | CE, CSA, UL, VDE | 2 Terminals | - | - | 0.38 lb (172.37 g) |
|
12038VE-12Q-GT-00FAN AXIAL 120X38MM 12VDC WIRE |
2,180 |
|
Datasheet |
12038VE | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.0dB(A) | 27 W | 5700 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
12038VE-24R-GT-E0FAN AXIAL 120X38MM 24VDC WIRE |
2,802 |
|
Datasheet |
12038VE | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.7 CFM (6.82m³/min) | 1.490 in H2O (371.1 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.0dB(A) | 35.52 W | 6400 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
4318NNFAN AXIAL 119X32MM 48VDC WIRE |
3,662 |
|
Datasheet |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 43.0dB(A) | 4.3 W | 2700 RPM | - | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
8412NH-217FAN AXIAL 80X25.4MM 12VDC WIRE |
2,770 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.5 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9CR0612P5H03FAN AXIAL DUAL 60X51MM 12VDC |
2,665 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 65.3 CFM (1.83m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 51.00mm | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 24 W | 10500 Front, 8200 Rear | CSA, TUV, UL | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.397 lb (180.08 g) |
|
8414NMUFAN AXIAL 80X25.4MM 24VDC WIRE |
2,328 |
|
Datasheet |
8400NU | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 34.1 CFM (0.955m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 27.0dB(A) | 1.4 W | 2600 RPM | UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.209 lb (94.8 g) |
_Series.jpg)
|
3412N/37GVFAN AXIAL 92X25.4MM 12VDC WIRE |
4,453 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 49.4 CFM (1.38m³/min) | - | Sleeve | 25.40mm | Tubeaxial | - | 32.0dB(A) | 2.5 W | 2700 RPM | CSA, UL, VDE | 4 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
THD0612VE-00FAN AXIAL 60X38MM 12VDC WIRE |
4,288 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 80.2 CFM (2.25m³/min) | 4.430 in H2O (1103.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 34.8 W | 19500 RPM | CE, cURus, TUV | 4 Wire Leads | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|

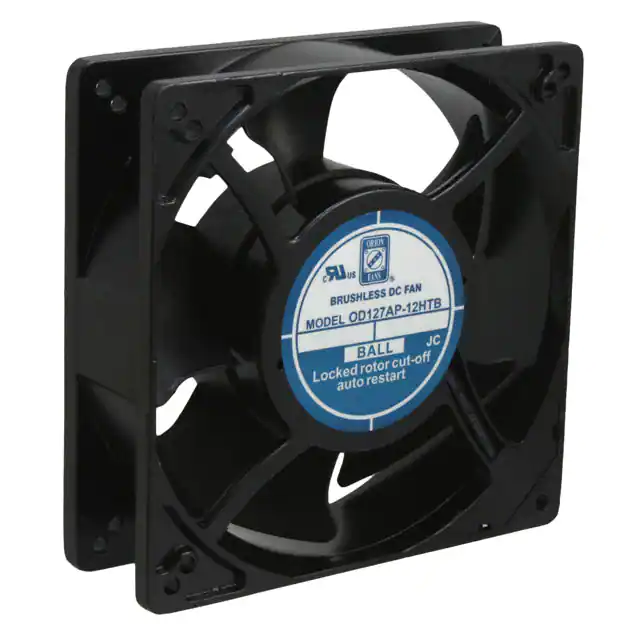

OD127AP-12HTBFAN AXIAL 127X38.5MM 12VDC TERM |
2,098 |
|
Datasheet |
OD127AP | Box | Active | 12VDC | Square - 127mm L x 127mm H | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 38.50mm | Tubeaxial | - | 46.0dB | - | 3200 RPM | cURus, TUV | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
OD127AP-24HTBFAN AXIAL 127X38.5MM 24VDC TERM |
4,141 |
|
Datasheet |
OD127AP | Box | Active | 24VDC | Square - 127mm L x 127mm H | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 38.50mm | Tubeaxial | - | 46.0dB | - | 3000 RPM | cURus, TUV | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

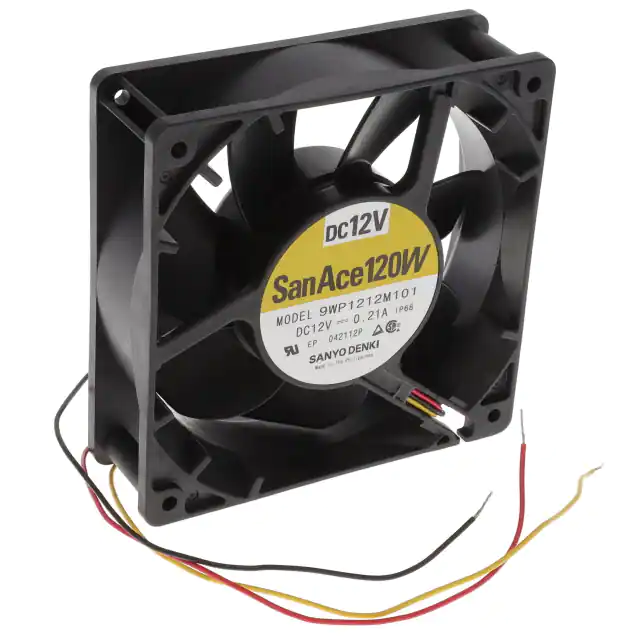

9WP1212M101FAN AXIAL 120X38MM 12VDC WIRE |
3,775 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.52 W | - | - | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
9WP1224M1011FAN AXIAL 120X38MM 24VDC WIRE |
3,091 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.64 W | - | - | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
