| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
628HHFAN AXIAL 60X25.4MM 48VDC WIRE |
4,348 |
|
Datasheet |
620 | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 4.2 W | 8200 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.187 lb (84.82 g) |
|
9GA1212P4G0011FAN AXIAL 120X25.4MM 12VDC WIRE |
1,086 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.16 W | 6400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
9GV1224P1H011FAN AXIAL 119X38MM 24VDC WIRE |
1,206 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 19.2 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
9GV0948P1H03FAN AXIAL 92X38MM 48VDC WIRE |
3,015 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 39.4 W | 8500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|

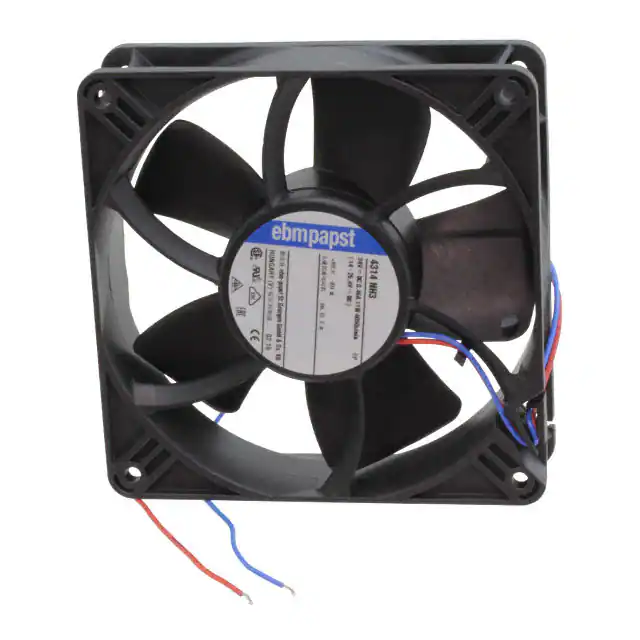

4314NH3FAN AXIAL 119X32MM 24VDC WIRE |
1,156 |
|
Datasheet |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 167.0 CFM (4.68m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 55.0dB(A) | 11 W | 4050 RPM | - | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
9RF0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
1,219 |
|
Datasheet |
San Ace 92RF | Bulk | Active | 24VDC | Round - 92mm Dia | 42.4 CFM (1.19m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Reversible Flow, Speed Sensor (Tach) | 39.0dB(A) | 2.2 W | - | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9HV0924P4H0011FAN AXIAL 92X25.2MM 24VDC WIRE |
2,288 |
|
Datasheet |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 9.12 W | 6050 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

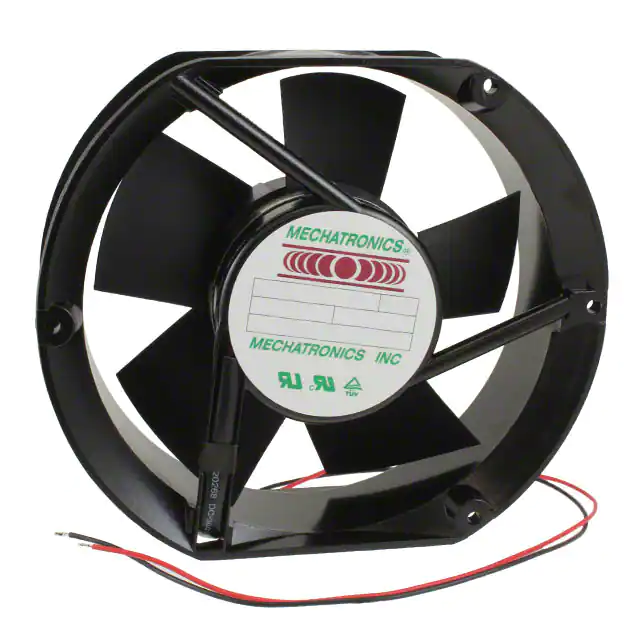

MA1751E12B-FSRFAN AXIAL 172X50.8MM 12VDC WIRE |
4,001 |
|
Datasheet |
MA1751 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 50.80mm | Tubeaxial | Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
9HVA0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
3,459 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 132.0 CFM (3.70m³/min) | 5.400 in H2O (1345.1 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 42 W | 16100 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (219.99 g) |
|
15050VA-48R-GA-00FAN AXIAL 172.7X50.8MM 48VDC |
3,298 |
|
Datasheet |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 50.80mm | Tubeaxial | - | 68.0dB(A) | 43.2 W | 4600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 1.9 lbs (861.8 g) |
|
15050VE-48R-GT-00FAN AXIAL 172.7X50.8MM 48VDC |
3,978 |
|
Datasheet |
15050VE | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.0dB(A) | 43.2 W | 4600 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
9LG0812H4001FAN AXIAL 80X25MM 12VDC WIRE |
2,423 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
3314NNUFAN AXIAL 92X32MM 24VDC WIRE |
3,403 |
|
Datasheet |
3300NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 46.9 CFM (1.31m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | UL | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.419 lb (190.06 g) |
|
4112NH3FAN AXIAL 119X38MM 12VDC WIRE |
4,390 |
|
Datasheet |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 182.4 CFM (5.11m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 65.0dB(A) | 21.6 W | 6000 RPM | CE | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.86 lb (390.09 g) |
|
|
9GA1212G4001FAN AXIAL 120X25.4MM 12VDC WIRE |
1,901 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.16 W | 6400 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
08080EA-12S-EUE-C80X80X80MM, 12VDC, 15,400/13,900 |
3,802 |
|
Datasheet |
08080EA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 171.0 CFM (4.79m³/min) | 6.800 in H2O (1693.8 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 83.5dB(A) | 144 W | 15400 RPM Front, 13900 RPM Rear | CE, cULus, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
OD172SAP-48HBXCIP69KFAN AXIAL 172X51.6MM 48VDC WIRE |
3,455 |
|
Datasheet |
OD172SAP XC | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 152mm H | 323.0 CFM (9.04m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 51.60mm | Tubeaxial | Auto Restart | 63.5dB | 49.4 W | 4400 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 1.3 lbs (600.0 g) |
|
|
9WV1224P1H012120X38MM, DC, 24V,SPLASH PROOF,R |
1,827 |
|
Datasheet |
San Ace 120W | Bulk | Active | 24VDC | Square - 120.1mm L x 120.1mm H | - | - | Ball | 38.00mm | Tubeaxial | - | 58.5dB(A) | - | 5200 RPM | - | 4 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
4184N/2XHFAN AXIAL 119X38MM 24VDC WIRE |
1,009 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11 W | 4400 RPM | - | 1 Wire Lead, 2 Terminals | -22 ~ 131°F (-30 ~ 55°C) | - | 0.86 lb (390.09 g) |
|
RG125-19/18NFAN BLOWER CF 180X40MM 48VDC |
1,239 |
|
Datasheet |
RG125N | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | - | Ball | 40.00mm | Blower, Centrifugal | - | 58.0dB(A) | 5 W | 2550 RPM | - | 2 Wire Leads | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
