| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4312/2FAN AXIAL 119X32MM 12VDC WIRE |
4,211 |
|
Datasheet |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | - | CE, CSA, UL, VDE | 3 Wire Leads | - | - | 0.49 lb (222.26 g) |
|
8314/2FAN AXIAL 80X32MM 24VDC WIRE |
2,531 |
|
Datasheet |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.7 W | 3300 RPM | - | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9LG0812S4001FAN AXIAL 80X25MM 12VDC WIRE |
4,556 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.04 W | - | - | 3 Wire Leads | - | - | - |
|
414JHFAN AXIAL 40X25.4MM 24VDC WIRE |
2,195 |
|
Datasheet |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.9 CFM (0.361m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 43.0dB(A) | 3 W | 11700 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.111 lb (50.35 g) |
|
4412FFAN AXIAL 119X25.4MM 12VDC WIRE |
1,574 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 5.3 W | 2900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
9G1248H101FAN AXIAL 119X38MM 48VDC WIRE |
4,730 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
9GV0912P1H031FAN AXIAL 92X38MM 12VDC WIRE |
1,732 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 42 W | 8500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
|
9GV0912P1H03FAN AXIAL 92X38MM 12VDC WIRE |
1,375 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 42 W | 8500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
OD1238-48HBIP69KFAN AXIAL 120X38MM 48VDC WIRE |
3,098 |
|
Datasheet |
OD1238-IP69K | Box | Active | 48VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 44.1dB(A) | 14 W | 2895 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP69K - Dust Tight, Water Resistant, Waterproof | 0.572 lb (259.45 g) |
|
3312NNFAN AXIAL 92X32MM 12VDC WIRE |
4,697 |
|
Datasheet |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 47.0 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.419 lb (190.06 g) |
|
|
4314SFAN AXIAL 119X32MM 24VDC WIRE |
4,724 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 45.0dB(A) | 5 W | - | CE, CSA, UL, VDE | 2 Wire Leads | - | - | 0.5 lb (226.8 g) |
|

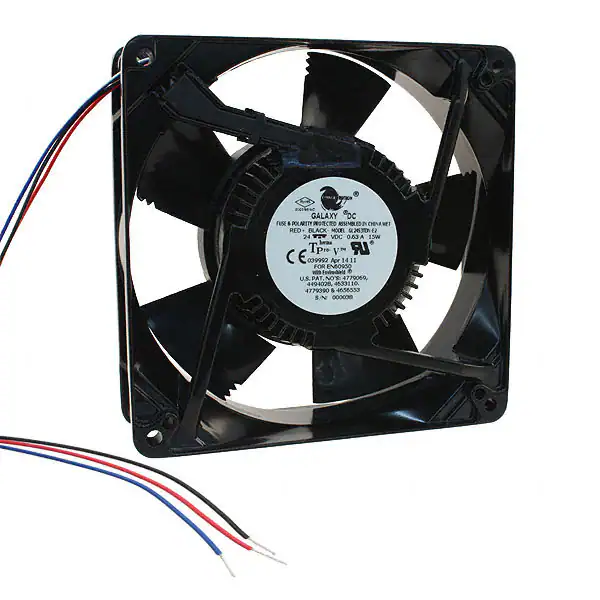

19039992AFAN AXIAL 127X38MM GL24S3TDN-E2 |
100 |
|
Datasheet |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 53.6dB(A) | 15 W | 3200 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
412J/2HFAN AXIAL 40X25.4MM 12VDC WIRE |
4,159 |
|
Datasheet |
400J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 12.9 CFM (0.361m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3 W | 11700 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.111 lb (50.35 g) |
|
|
3314N/2NFAN AXIAL 92X32MM 24VDC WIRE |
3,073 |
|
Datasheet |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 47.0 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 1.8 W | 2650 RPM | UL | 3 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.419 lb (190.06 g) |
|
9GV1512H502FAN AXIAL 150X50MM 12VDC WIRE |
4,705 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 50.00mm | Tubeaxial | - | 61.0dB(A) | 34.8 W | 3900 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
9GA1212P4S0011FAN AXIAL 120X25.4MM 12VDC WIRE |
3,129 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.32 W | 5400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
|
9GV1512M501FAN AXIAL 150X50MM 12VDC WIRE |
3,952 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 50.00mm | Tubeaxial | Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
|
14539GA-12N-AA-00FAN BLOWER 145X39MM 12VDC WIRE |
2,264 |
|
Datasheet |
14539GA | Box | Active | 12VDC | Square/Rounded - 145mm L x 145mm H | 51.2 CFM (1.43m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 39.00mm | Blower | Auto Restart | 54.5dB | 15 W | 2450 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
4312NH3FAN AXIAL 119X32MM 12VDC WIRE |
1,531 |
|
Datasheet |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 167.0 CFM (4.68m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 55.0dB(A) | 12 W | 4050 RPM | - | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
9GV1512P5M03FAN AXIAL 150X50MM 12VDC WIRE |
3,448 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 50.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.993 lb (450.42 g) |
