| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM75-151KFIXED IND 150UH 580MA 640MOHM SM |
1,027 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 580 mA | - | 150 µH | Unshielded | 640mOhm Max | - | 6MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-221KFIXED IND 220UH 490MA 960MOHM SM |
1,463 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 490 mA | - | 220 µH | Unshielded | 960mOhm Max | - | 5MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-330KFIXED IND 33UH 1.2A 130 MOHM SMD |
3,231 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | 33 µH | Unshielded | 130mOhm Max | - | 15MHz | - | Surface Mount | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-390KFIXED IND 39UH 1.1A 160 MOHM SMD |
2,768 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | 39 µH | Unshielded | 160mOhm Max | - | 14MHz | - | Surface Mount | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-820KFIXED IND 82UH 780MA 370MOHM SMD |
3,147 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 780 mA | - | 82 µH | Unshielded | 370mOhm Max | - | 10MHz | - | Surface Mount | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
RL110-102KFIXED IND 1MH 530MA 1.7 OHM TH |
2,431 |
|
Datasheet |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 530 mA | - | 1 mH | Unshielded | 1.7Ohm Max | - | 1.7MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) |
|
|
RL110-821KFIXED IND 820UH 590MA 1.3 OHM TH |
1,715 |
|
Datasheet |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 590 mA | - | 820 µH | Unshielded | 1.3Ohm Max | - | 2MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) |
|
|
RL110S-471LFIXED IND 470UH 570MA 980MOHM TH |
4,282 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 570 mA | - | 470 µH | Shielded | 980mOhm Max | - | 2.2MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RL110S-561LFIXED IND 560UH 520MA 1.1 OHM TH |
3,266 |
|
Datasheet |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 520 mA | - | 560 µH | Shielded | 1.1Ohm Max | - | 2MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
RL855-470KFIXED IND 47UH 1.2A 240 MOHM TH |
2,484 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | 47 µH | Unshielded | 240mOhm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL855-680KFIXED IND 68UH 1A 340 MOHM TH |
1,623 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | 68 µH | Unshielded | 340mOhm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
RL875-101KFIXED IND 100UH 890MA 280MOHM TH |
3,664 |
|
Datasheet |
RL875 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 890 mA | - | 100 µH | Unshielded | 280mOhm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL875-103KFIXED IND 10MH 84MA 33 OHM TH |
4,451 |
|
Datasheet |
RL875 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 84 mA | - | 10 mH | Unshielded | 33Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL875-122KFIXED IND 1.2MH 240MA 4.04OHM TH |
2,263 |
|
Datasheet |
RL875 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 240 mA | - | 1.2 mH | Unshielded | 4.04Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
RL875-392KFIXED IND 3.9MH 150MA 10.6OHM TH |
4,962 |
|
Datasheet |
RL875 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 150 mA | - | 3.9 mH | Unshielded | 10.6Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|

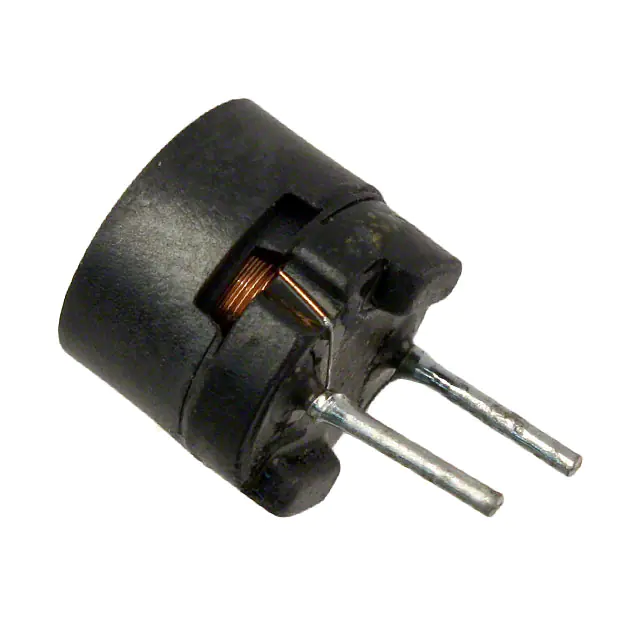

RL875S-102KFIXED IND 1MH 230MA 2.72 OHM TH |
1,020 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 230 mA | - | 1 mH | Shielded | 2.72Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL875S-222KFIXED IND 2.2MH 160MA 7.56OHM TH |
1,217 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 160 mA | - | 2.2 mH | Shielded | 7.56Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL875S-392KFIXED IND 3.9MH 120MA 12.9OHM TH |
2,026 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | - | 3.9 mH | Shielded | 12.9Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
RL895-102KFIXED IND 1MH 300MA 1.84 OHM TH |
1,478 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | - | 1 mH | Unshielded | 1.84Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
|
RL895-223KFIXED IND 22MH 59MA 44.9 OHM TH |
4,314 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 59 mA | - | 22 mH | Unshielded | 44.9Ohm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
