| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL895-270KFIXED IND 27UH 1.6A 60 MOHM TH |
4,136 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | 27 µH | Unshielded | 60mOhm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 2.52 MHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
|
RL895-471KFIXED IND 470UH 430MA 890MOHM TH |
2,737 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 430 mA | - | 470 µH | Unshielded | 890mOhm Max | - | - | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
SPD73-242MFIXED IND 2.4UH 2.69A 32MOHM SMD |
4,276 |
|
Datasheet |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.69 A | 2.69A | 2.4 µH | Shielded | 32mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
CI100505-1N0DFIXED IND 1NH 300MA 80 MOHM SMD |
4,172 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 1 nH | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-1N5DFIXED IND 1.5NH 300MA 100MOHM SM |
3,034 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 1.5 nH | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-2N2DFIXED IND 2.2NH 300MA 130MOHM SM |
1,652 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 2.2 nH | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-3N3DFIXED IND 3.3NH 300MA 160MOHM SM |
2,160 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 3.3 nH | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-4N7DFIXED IND 4.7NH 300MA 210MOHM SM |
4,844 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 4.7 nH | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-6N8JFIXED IND 6.8NH 300MA 250MOHM SM |
4,738 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 6.8 nH | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.9GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-8N2JFIXED IND 8.2NH 250MA 280MOHM SM |
4,162 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 250 mA | - | 8.2 nH | Unshielded | 280mOhm Max | 8 @ 100MHz | 3.6GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-10NJFIXED IND 10NH 250MA 310MOHM SMD |
1,596 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 250 mA | - | 10 nH | Unshielded | 310mOhm Max | 8 @ 100MHz | 3.2GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-22NJFIXED IND 22NH 200MA 600MOHM SMD |
2,495 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 200 mA | - | 22 nH | Unshielded | 600mOhm Max | 8 @ 100MHz | 1.9GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-33NJFIXED IND 33NH 200MA 800MOHM SMD |
2,686 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 200 mA | - | 33 nH | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.3GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-47NJFIXED IND 47NH 100MA 1 OHM SMD |
4,944 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 47 nH | Unshielded | 1Ohm Max | 8 @ 100MHz | 1GHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-68NJFIXED IND 68NH 100MA 1.2 OHM SMD |
3,665 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 68 nH | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 700MHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-R10JFIXED IND 100NH 100MA 1.5OHM SMD |
2,493 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 100 nH | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 550MHz | - | Surface Mount | -55°C ~ 105°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
SWS-3.0-47FIXED IND 47UH 3A 50 MOHM SMD |
4,472 |
|
Datasheet |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | 47 µH | Unshielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 10 kHz | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.435" (11.05mm) |
|
SWS-0.36-375FIXED IND 375UH 360MA 1.3OHM SMD |
1,880 |
|
Datasheet |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 360 mA | - | 375 µH | Unshielded | 1.3Ohm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 10 kHz | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|

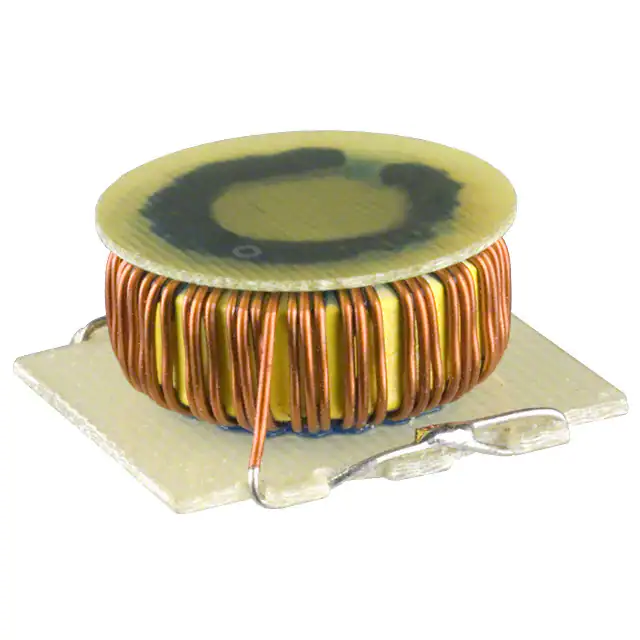

SWS-4.50-19FIXED IND 19UH 4.5A 20 MOHM SMD |
2,983 |
|
Datasheet |
SW | Nonstandard | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 4.5 A | - | 19 µH | Unshielded | 20mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 10 kHz | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
SWT-0.2-374FIXED IND 374UH 200MA 2.7 OHM TH |
4,277 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | ±20% | 200 mA | - | 374 µH | Unshielded | 2.7Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
