| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

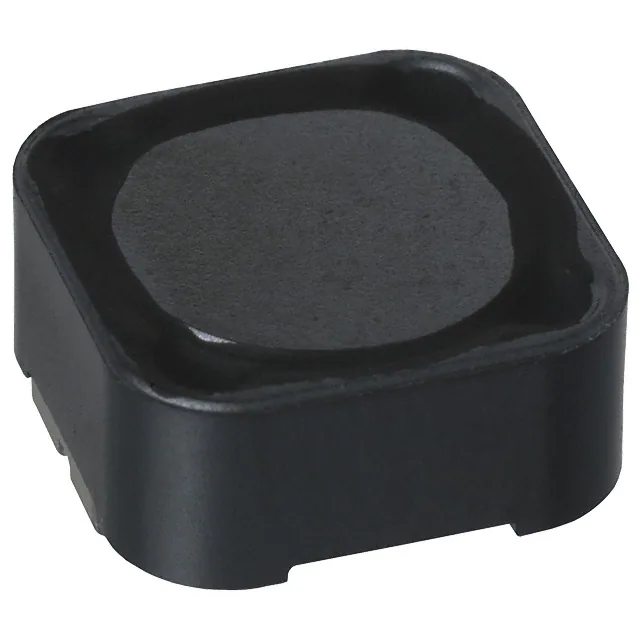

CDRH125-3R1NCFIXED IND 3.1UH 6A 17 MOHM SMD |
4,971 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +30% | 6 A | - | 3.1 µH | Shielded | 17mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 7.96 MHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-4R4NCFIXED IND 4.4UH 5A 20 MOHM SMD |
1,333 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +30% | 5 A | - | 4.4 µH | Shielded | 20mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 7.96 MHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-5R8NCFIXED IND 5.8UH 4.4A 21 MOHM SMD |
2,752 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +30% | 4.4 A | - | 5.8 µH | Shielded | 21mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 7.96 MHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-7R5NCFIXED IND 7.5UH 4.2A 24 MOHM SMD |
4,760 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +30% | 4.2 A | - | 7.5 µH | Shielded | 24mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 7.96 MHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-100MCFIXED IND 10UH 4A 25 MOHM SMD |
2,548 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 4 A | - | 10 µH | Shielded | 25mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-120MCFIXED IND 12UH 3.5A 27 MOHM SMD |
1,459 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3.5 A | - | 12 µH | Shielded | 27mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-150MCFIXED IND 15UH 3.3A 30 MOHM SMD |
2,650 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3.3 A | - | 15 µH | Shielded | 30mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-180MCFIXED IND 18UH 3A 34 MOHM SMD |
3,872 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3 A | - | 18 µH | Shielded | 34mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-220MCFIXED IND 22UH 2.8A 36 MOHM SMD |
2,414 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.8 A | - | 22 µH | Shielded | 36mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-270MCFIXED IND 27UH 2.3A 51 MOHM SMD |
3,454 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.3 A | - | 27 µH | Shielded | 51mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-330MCFIXED IND 33UH 2.1A 57 MOHM SMD |
1,026 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.1 A | - | 33 µH | Shielded | 57mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-390MCFIXED IND 39UH 2A 68 MOHM SMD |
1,772 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2 A | - | 39 µH | Shielded | 68mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-470MCFIXED IND 47UH 1.8A 75 MOHM SMD |
4,780 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.8 A | - | 47 µH | Shielded | 75mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-560MCFIXED IND 56UH 1.7A 110 MOHM SMD |
1,584 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.7 A | - | 56 µH | Shielded | 110mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-680MCFIXED IND 68UH 1.5A 120 MOHM SMD |
4,582 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.5 A | - | 68 µH | Shielded | 120mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-820MCFIXED IND 82UH 1.4A 140 MOHM SMD |
1,159 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.4 A | - | 82 µH | Shielded | 140mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-101MCFIXED IND 100UH 1.3A 160MOHM SMD |
3,047 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.3 A | - | 100 µH | Shielded | 160mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-151MCFIXED IND 150UH 1A 230 MOHM SMD |
2,760 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1 A | - | 150 µH | Shielded | 230mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-181MCFIXED IND 180UH 900MA 290MOHM SM |
3,661 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 900 mA | - | 180 µH | Shielded | 290mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-221MCFIXED IND 220UH 800MA 400MOHM SM |
1,024 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 800 mA | - | 220 µH | Shielded | 400mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
