| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125-271MCFIXED IND 270UH 750MA 460MOHM SM |
1,137 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 750 mA | - | 270 µH | Shielded | 460mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-331MCFIXED IND 330UH 680MA 510MOHM SM |
1,612 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 680 mA | - | 330 µH | Shielded | 510mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-391MCFIXED IND 390UH 650MA 690MOHM SM |
3,652 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 650 mA | - | 390 µH | Shielded | 690mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-471MCFIXED IND 470UH 580MA 770MOHM SM |
4,422 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 580 mA | - | 470 µH | Shielded | 770mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-561MCFIXED IND 560UH 540MA 860MOHM SM |
2,155 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 540 mA | - | 560 µH | Shielded | 860mOhm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-681MCFIXED IND 680UH 480MA 1.2OHM SMD |
4,511 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 480 mA | - | 680 µH | Shielded | 1.2Ohm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-821MCFIXED IND 820UH 430MA 1.34OHM SM |
3,088 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 430 mA | - | 820 µH | Shielded | 1.34Ohm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-102MCFIXED IND 1MH 400MA 1.53 OHM SMD |
4,908 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 400 mA | - | 1 mH | Shielded | 1.53Ohm Max | - | - | - | Surface Mount | -25°C ~ 80°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

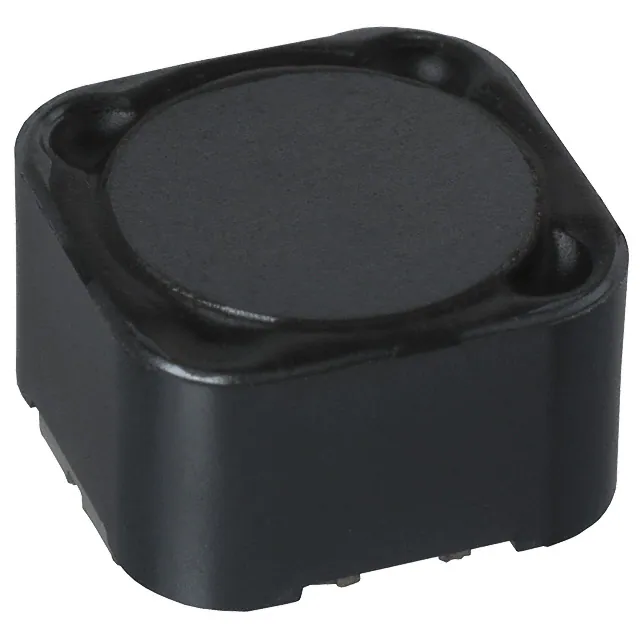

CDRH127-1R2NCFIXED IND 1.2UH 9.8A 7 MOHM SMD |
2,279 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 9.8 A | - | 1.2 µH | Shielded | 7mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-2R4NCFIXED IND 2.4UH 8A 11.5 MOHM SMD |
3,668 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 8 A | - | 2.4 µH | Shielded | 11.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-3R5NCFIXED IND 3.5UH 7.5A 13.5MOHM SM |
2,506 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 7.5 A | - | 3.5 µH | Shielded | 13.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-4R7NCFIXED IND 4.7UH 6.8A 15.8MOHM SM |
4,528 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 6.8 A | - | 4.7 µH | Shielded | 15.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-6R1NCFIXED IND 6.1UH 6.6A 17.6MOHM SM |
2,120 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 6.6 A | - | 6.1 µH | Shielded | 17.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-7R6NCFIXED IND 7.6UH 5.9A 20 MOHM SMD |
4,015 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -20%, +40% | 5.9 A | - | 7.6 µH | Shielded | 20mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-100MCFIXED IND 10UH 5.4A 21.6MOHM SMD |
4,717 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 5.4 A | - | 10 µH | Shielded | 21.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-120MCFIXED IND 12UH 4.9A 24.3MOHM SMD |
2,541 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 4.9 A | - | 12 µH | Shielded | 24.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-150MCFIXED IND 15UH 4.5A 27 MOHM SMD |
1,555 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 4.5 A | - | 15 µH | Shielded | 27mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-180MCFIXED IND 18UH 3.9A 39.2MOHM SMD |
3,151 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3.9 A | - | 18 µH | Shielded | 39.2mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-220MCFIXED IND 22UH 3.6A 43.2MOHM SMD |
2,093 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3.6 A | - | 22 µH | Shielded | 43.2mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127-270MCFIXED IND 27UH 3.4A 45.9MOHM SMD |
4,011 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 3.4 A | - | 27 µH | Shielded | 45.9mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
