| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWT-0.25-256FIXED IND 256UH 250MA 2.2 OHM TH |
3,437 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 250 mA | - | 256 µH | Unshielded | 2.2Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.30-176FIXED IND 176UH 300MA 1.4 OHM TH |
3,354 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 300 mA | - | 176 µH | Unshielded | 1.4Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.38-118FIXED IND 118UH 380MA 1.2 OHM TH |
1,461 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | ±20% | 380 mA | - | 118 µH | Unshielded | 1.2Ohm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
SWT-0.46-78FIXED IND 78UH 460MA 800 MOHM TH |
4,240 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 460 mA | - | 78 µH | Unshielded | 800mOhm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|
|
SWT-0.56-55FIXED IND 55UH 560MA 500 MOHM TH |
3,821 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 560 mA | - | 55 µH | Unshielded | 500mOhm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|

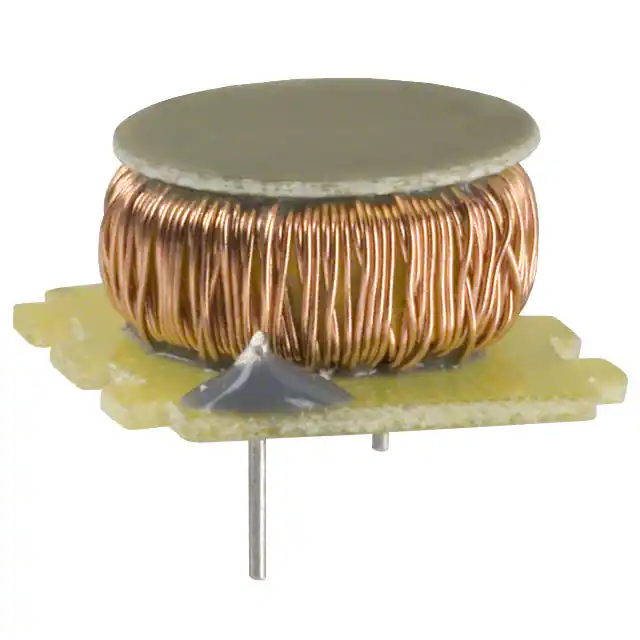

SWT-0.68-39FIXED IND 39UH 680MA 300 MOHM TH |
1,383 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 680 mA | - | 39 µH | Unshielded | 300mOhm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.84-26FIXED IND 26UH 840MA 200 MOHM TH |
2,454 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 840 mA | - | 26 µH | Unshielded | 200mOhm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-1.02-17FIXED IND 17UH 1.02A 100 MOHM TH |
3,120 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 1.02 A | - | 17 µH | Unshielded | 100mOhm | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|

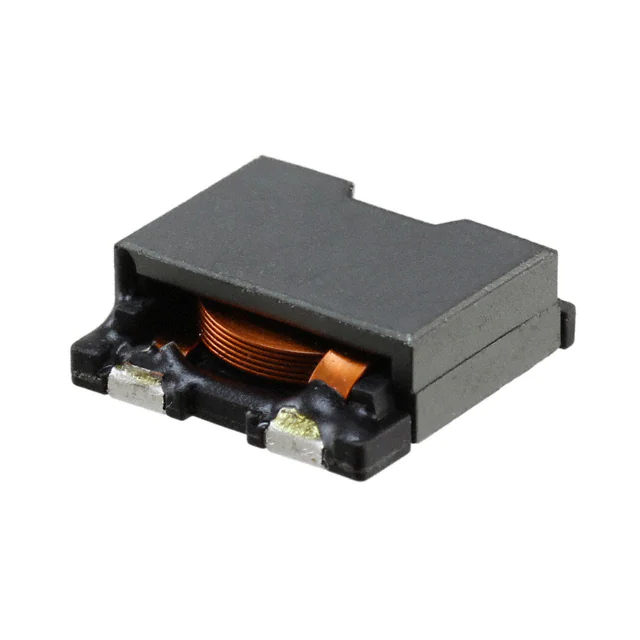

CDEP134-1R6MCFIXED IND 1.6UH 15A 3.7 MOHM SMD |
3,239 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 15 A | 16A | 1.6 µH | Shielded | 3.7mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|

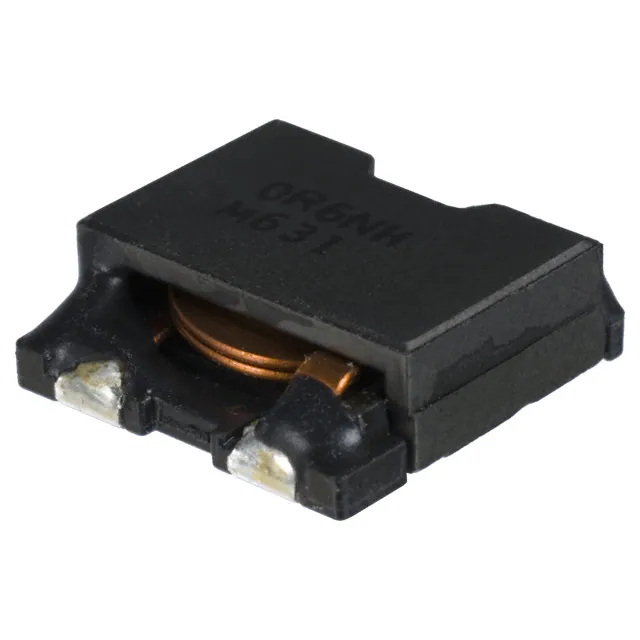

CDEP134-2R5MCFIXED IND 2.5UH 10.5A 6.6MOHM SM |
1,835 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 10.5 A | 12.8A | 2.5 µH | Shielded | 6.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-3R6MCFIXED IND 3.6UH 8A 10.8 MOHM SMD |
2,460 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 8 A | 10.9A | 3.6 µH | Shielded | 10.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-4R8MCFIXED IND 4.8UH 7.5A 12 MOHM SMD |
1,796 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7.5 A | 9.3A | 4.8 µH | Shielded | 12mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-6R4MCFIXED IND 6.4UH 7A 16.3 MOHM SMD |
4,601 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 7 A | 8A | 6.4 µH | Shielded | 16.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-8R0MCFIXED IND 8UH 6.5A 18.4 MOHM SMD |
4,615 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 6.5 A | 7.2A | 8 µH | Shielded | 18.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-1R8MC-HFIXED IND 1.8UH 10.5A 6.6MOHM SM |
4,273 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 10.5 A | 17.6A | 1.8 µH | Shielded | 6.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-2R7MC-HFIXED IND 2.7UH 8A 10.8 MOHM SMD |
2,520 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8 A | 14.7A | 2.7 µH | Shielded | 10.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-3R6MC-HFIXED IND 3.6UH 7.5A 12 MOHM SMD |
2,784 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7.5 A | 12.5A | 3.6 µH | Shielded | 12mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-4R8MC-HFIXED IND 4.8UH 7A 16.3 MOHM SMD |
1,358 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 7 A | 11A | 4.8 µH | Shielded | 16.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-6R0MC-HFIXED IND 6UH 6.5A 18.4 MOHM SMD |
1,439 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 6.5 A | 9.6A | 6 µH | Shielded | 18.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
CDR125-100MCFIXED IND 10UH 2.65A 50 MOHM SMD |
2,123 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.65 A | - | 10 µH | Shielded | 50mOhm Max | - | 24.2MHz | - | Surface Mount | -25°C ~ 70°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
