LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCMS-23335X7 SMARTDISP 4CHAR .2IN ALINGAP |
1,692 |
|
Datasheet |
- | Bulk | Active | 159mcd | - | Yellow-Green | 5 x 7 | - | 0.79" L x 0.33" W x 0.10" H (20.01mm x 8.43mm x 2.54mm) | Serial In/Parallel Out |
|
HDSP-2131DISPLAY 5X7 8DIGIT .2" 32DIP YLW |
168 |
|
Datasheet |
HDSP-213x | Bulk | Active | 2.50mcd ~ 20.28mcd | - | Yellow | 5 x 7 | - | 1.68" L x 0.39" W x 0.25" H (42.72mm x 9.91mm x 6.35mm) | Parallel, 8-Bit |
|

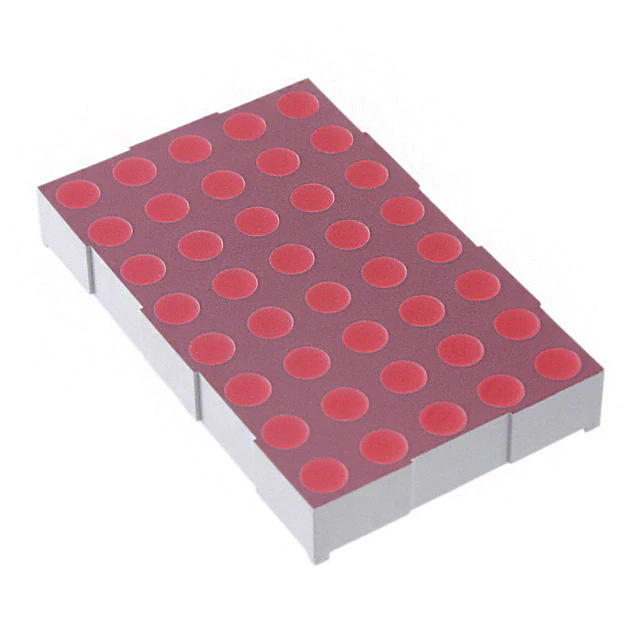

LTP-2158AHRLED MATRIX 5X8 2.3" HI-EFF RED |
1,520 |
|
Datasheet |
- | Tube | Active | 4.8mcd | Common Anode Row, Common Cathode Column | Red | 5 x 8 | 2V | 1.50" L x 2.39" W x 0.35" H (38.10mm x 60.80mm x 8.90mm) | - |
|
HDSP-701EDISPLAY DOT 5X7 HER CRA 0.68" |
1,800 |
|
Datasheet |
HDSP-70xE | Bulk | Active | 1.29mcd ~ 6.53mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2.05V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-711GDISPLAY DOT 5X7 GREEN CRA 0.68" |
1,800 |
|
Datasheet |
HDSP-71xG | Tube | Active | 960µcd ~ 7.28mcd | Common Anode Row, Common Cathode Column | Green | 5 x 7 | 2.25V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-713GDISPLAY DOT 5X7 GREEN CRC 0.68" |
1,800 |
|
Datasheet |
HDSP-71xG | Bulk | Active | 960µcd ~ 7.28mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.25V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-703GDISPLAY DOT 5X7 GREEN CRC 0.68" |
1,775 |
|
Datasheet |
HDSP-70xG | Bulk | Active | 960µcd ~ 7.28mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.25V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-701GDISPLAY DOT 5X7 GREEN CRA 0.68" |
1,670 |
|
Datasheet |
HDSP-70xG | Bulk | Active | 960µcd ~ 7.28mcd | Common Anode Row, Common Cathode Column | Green | 5 x 7 | 2.25V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
HDLA-1414DISPLAY 5X7 0.15" 4CHAR ORANGE |
171 |
|
Datasheet |
HDLx-1414 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Orange | 5 x 7 | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | 7-Bit ASCII |
|
|
HDLY-1414DISPLAY 5X7 0.15" 4CHAR YELLOW |
174 |
|
Datasheet |
HDLx-1414 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Yellow | 5 x 7 | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | 7-Bit ASCII |
|
HDLY-3416DISPLAY 5X7 0.27" 4CHAR YELLOW |
147 |
|
Datasheet |
HDLx-3416 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Yellow | 5 x 7 | - | 1.29" L x 0.79" W x 0.34" H (32.77mm x 20.07mm x 8.64mm) | 7-Bit ASCII |
|
|
HCMS-2964LED DISPLAY 5X7 4CHAR 5MM ORN |
118 |
|
Datasheet |
HCMS-29xx | Tube | Active | 64µcd | - | Orange | 5 x 7 | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Serial |
|
|
HDLA-3416DISPLAY 5X7 0.27" 4CHAR ORANGE |
150 |
|
Datasheet |
HDLx-3416 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Orange | 5 x 7 | - | 1.29" L x 0.79" W x 0.34" H (32.77mm x 20.07mm x 8.64mm) | 7-Bit ASCII |
|
HDLO-2416-EF000DISPLAY 5X7 0.2" 4CHAR RED DIP |
160 |
|
Datasheet |
HDLx-2416 | Tube | Active | 3.5mcd | - | Red | 5 x 7 | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | 7-Bit ASCII |
|

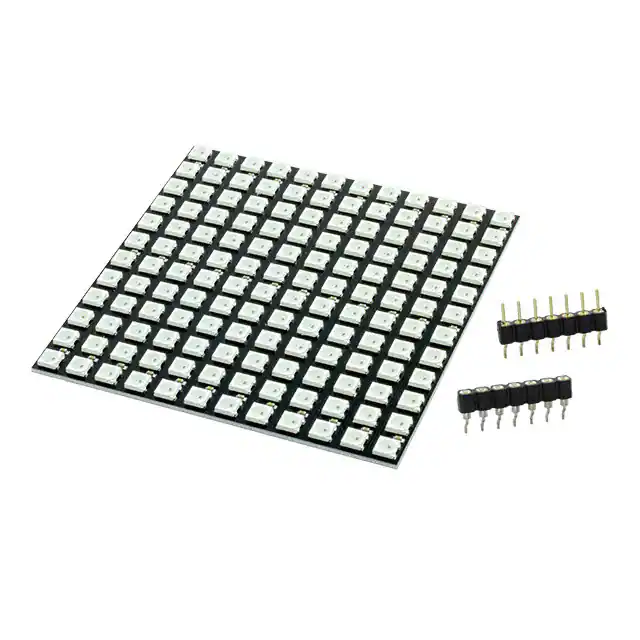

INCM8800112 X 12 DIGITAL RGB LED MODULE |
1,800 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 12 x 12 | - | 3.77" L x 3.77" W x 0.06" H (95.80mm x 95.80mm x 1.60mm) | Serial |
|
|
HDSP-2501DISPLAY 5X7 8CHAR .27" YELLOW |
1,567 |
|
Datasheet |
HDSP-250x | Tube | Active | 2.50mcd ~ 20.28mcd | - | Yellow | 5 x 7 | - | 2.79" L x 0.76" W x 0.26" H (70.87mm x 19.41mm x 6.60mm) | Parallel, 8-Bit |
|
|
HCMS-2353-UV0005X7 SMARTDISP 4CHAR .2IN,GRN |
1,593 |
|
Datasheet |
HCMS-235x | Bulk | Active | 34.78mcd | - | Green | 5 x 7 | 5V | 0.79" L x 0.33" W x 0.10" H (20.07mm x 8.43mm x 2.54mm) | Serial, 28-Bit |
|
PART 8X8 20 MM RED LED MATRIX20 MM 8X8 RED LED MATRIX |
325 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - |
|
PART 8X8 20 MM BLUE LED MATRIX20MM 8X8 BLUE MATRIX |
315 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - |
|

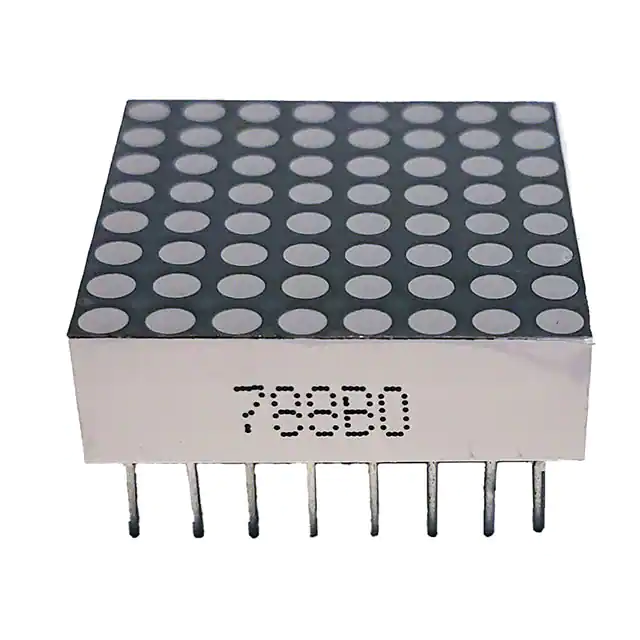

PART 8X8 20 MM ORANGE LED MATRIX20MM 8X8 ORANGE MATRIX |
309 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - |
