LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PART 8X8 20 MM YELLOW-GREEN LED MATRIX20 MM 8X8 Y-G MATRX |
292 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - |
|
TA12-11GWALED MATRIX 5X7 1.2" 565NM GRN |
864 |
|
Datasheet |
- | Tube | Active | 16mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.2V | 0.90" L x 1.54" W x 0.32" H (22.90mm x 39.00mm x 8.00mm) | - |
|
SCE5783INTELLIGENT DISP 8CHAR 5X7 GRN |
1,729 |
|
Datasheet |
Intelligent Display® | Tray | Obsolete | 150µcd | - | Green | 5 x 7 | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.33mm) | Serial |
|
|
KWM-30571CRR1.54INCH, DEEP RED, 57 DOT MATR |
3,500 |
|
Datasheet |
- | Retail Package | Active | 9mcd ~ 18mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm) | Parallel |
|

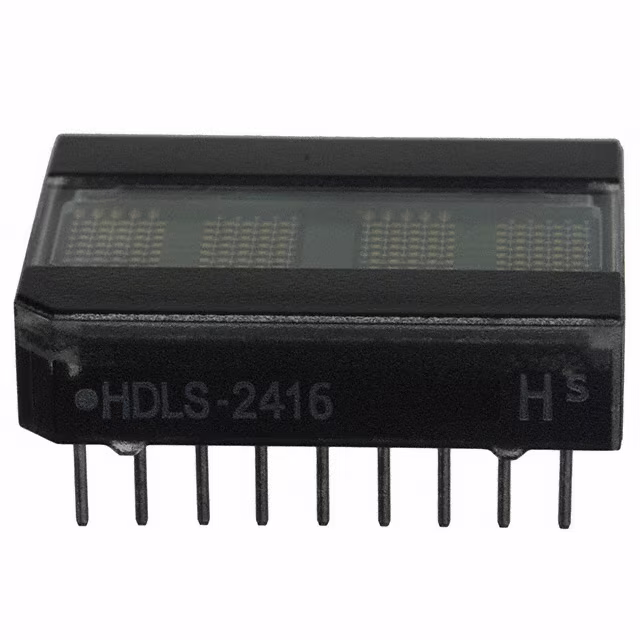

HDLS-2416DISPLAY 5X7 0.2" 4CHAR SUN.VIEW |
2,198 |
|
Datasheet |
HDLx-2416 | Tube | Active | 3.97mcd ~ 36.49mcd | - | Red | 5 x 7 | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | 7-Bit ASCII |
|

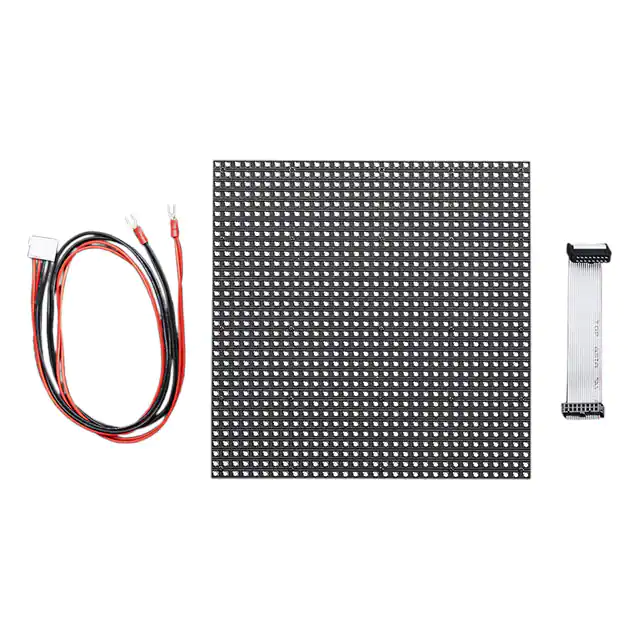

148432X32 RGB LED MATRIX PANEL 6MM P |
1,148 |
|
Datasheet |
- | Bulk | Active | 2000mcd | - | Red, Green, Blue (RGB) | 32 x 32 | - | 7.50" L x 7.50" W x 0.55" H (190.50mm x 190.50mm x 14.00mm) | - |
|

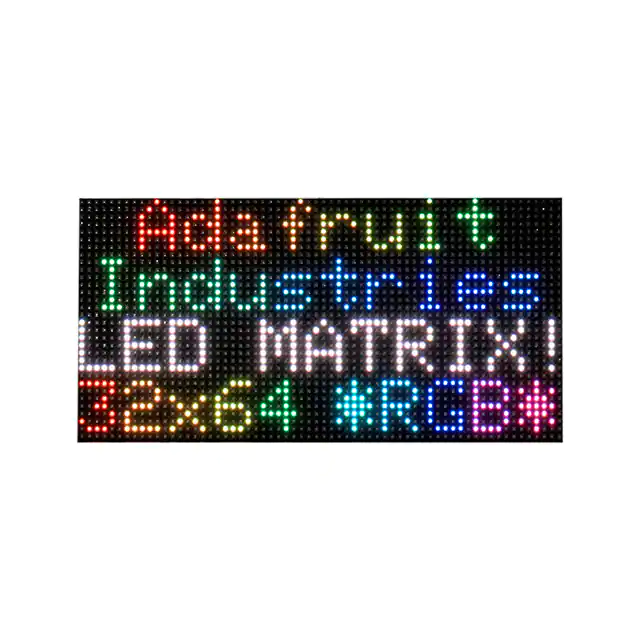

227864X32 RGB LED MATRIX - 4MM PITCH |
3,339 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | - | 10.00" L x 5.00" W x 0.60" H (254mm x 127mm x 15.24mm) | - |
|
HCMS-2963LED DISPLAY 5X7 4CHAR 5MM GREEN |
1,598 |
|
Datasheet |
HCMS-29xx | Tube | Active | 114µcd | - | Green | 5 x 7 | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Serial |
|

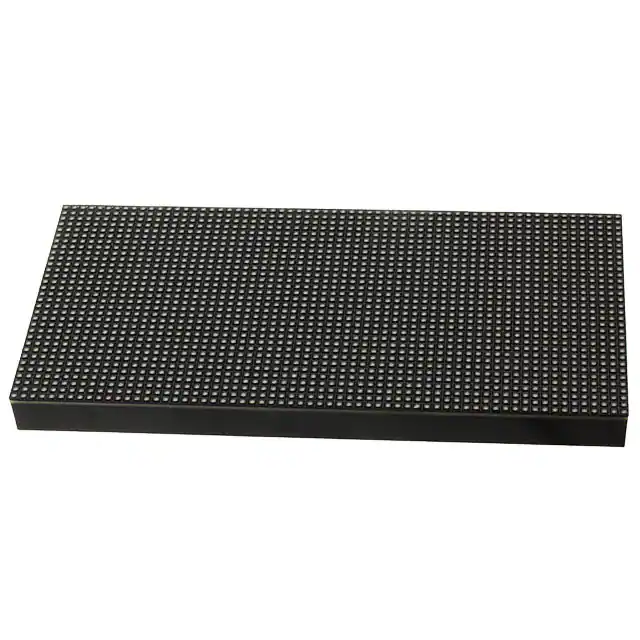

227964X32 RGB LED MATRIX - 3MM PITCH |
1,658 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | - | 7.50" L x 3.80" W x 0.60" H (190.5mm x 96.52mm x 15.24mm) | - |
|

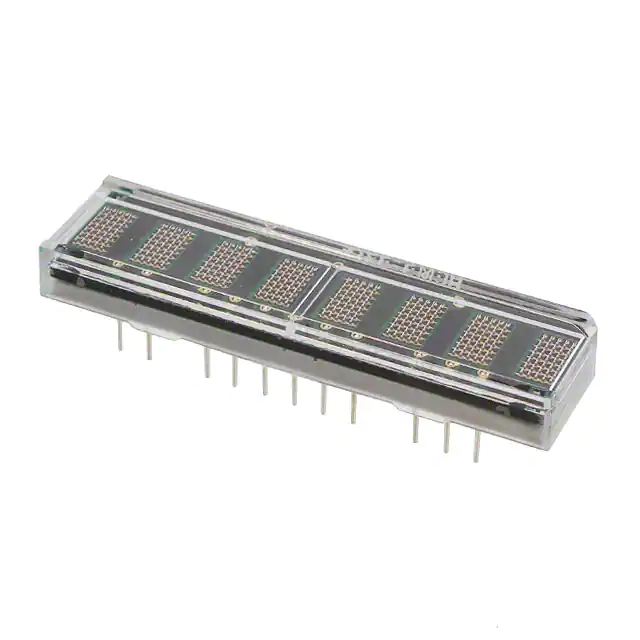

HCMS-3972LED DISPLAY 5X7 8CHAR 5MM RED |
4,726 |
|
Datasheet |
HCMS-39xx | Tube | Active | 128µcd | - | Red | 5 x 7 | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Serial |
|
HCMS-3976LED DISPLAY 5X7 8CHAR 5MM RED |
3,504 |
|
Datasheet |
HCMS-39xx | Tube | Active | 2.3mcd | - | Red | 5 x 7 | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Serial |
|
HDSP-2132DISPLAY 5X7 8DIGIT .2" 32DIP RED |
1,874 |
|
Datasheet |
HDSP-213x | Bulk | Active | 2.50mcd ~ 20.28mcd | - | Red | 5 x 7 | - | 1.68" L x 0.39" W x 0.25" H (42.72mm x 9.91mm x 6.35mm) | Parallel, 8-Bit |
|
|
2601RGB MATRIX SHIELD FOR ARDUINO |
4,157 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 16 x 32 | 5V | 2.70" L x 2.09" W x 0.06" H (68.50mm x 53.20mm x 1.60mm) | - |
|
202632X32 RGB LED MATRIX PANEL 5MM P |
1,736 |
|
Datasheet |
- | Bulk | Active | 2000mcd | - | Red, Green, Blue (RGB) | 32 x 32 | - | 6.55" L x 6.55" W x 0.56" H (166.37mm x 166.37mm x 14.22mm) | - |
|
503664X32 RGB LED MATRIX - 2.5MM PIT |
3,705 |
|
Datasheet |
- | Bulk | Active | 2000mcd | - | Red, Green, Blue (RGB) | 64 x 32 | - | 6.30" L x 3.15" W x 0.58" H (160.00mm x 80.00mm x 14.70mm) | - |
|
HCMS-3962LED DISPLAY 5X7 4CHAR 5MM RED |
3,178 |
|
Datasheet |
HCMS-39xx | Tube | Active | 128µcd | - | Red | 5 x 7 | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Serial |
|

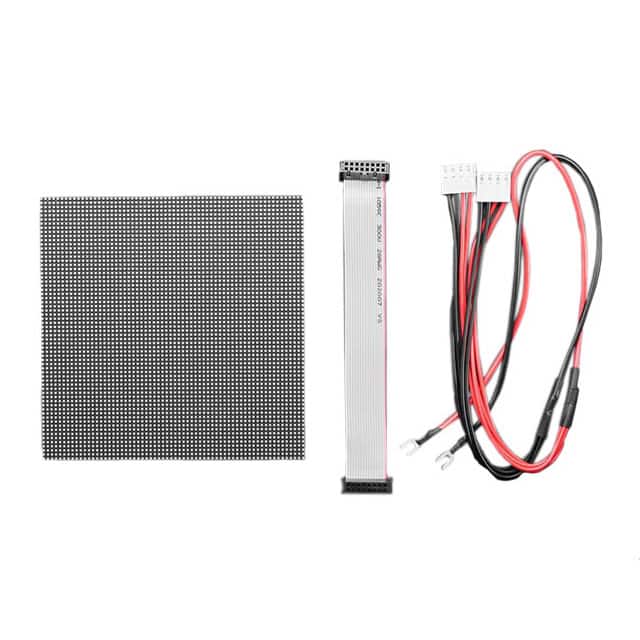

536264X64 RGB LED MATRIX PANEL - 2MM |
2,897 |
|
Datasheet |
- | Bulk | Active | 1mcd | - | Red, Green, Blue (RGB) | 64 x 64 | 5V | - | - |
|
|
473264X64 RGB LED MATRIX - 3MM PITCH |
2,397 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 64 | - | 7.56" L x 7.56" W (192.00mm x 192.00mm) | - |
|
VAOM-C07573G9-BW/32DISPL 0.7" DOT-MATRIX YLW-GRN CC |
1,748 |
|
Datasheet |
- | Tube | Not For New Designs | 9mcd | Common Anode Row, Common Cathode Column | Green | 5 x 7 | 2.1V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
1856SMALL 1.2 8X8 BRIGHT SQUARE PURE |
1,185 |
|
Datasheet |
- | Bulk | Active | - | - | Green | 8 x 8 | - | 1.20" L x 1.20" W x 0.30" H (30.48mm x 30.48mm x 7.62mm) | I2C |
