LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

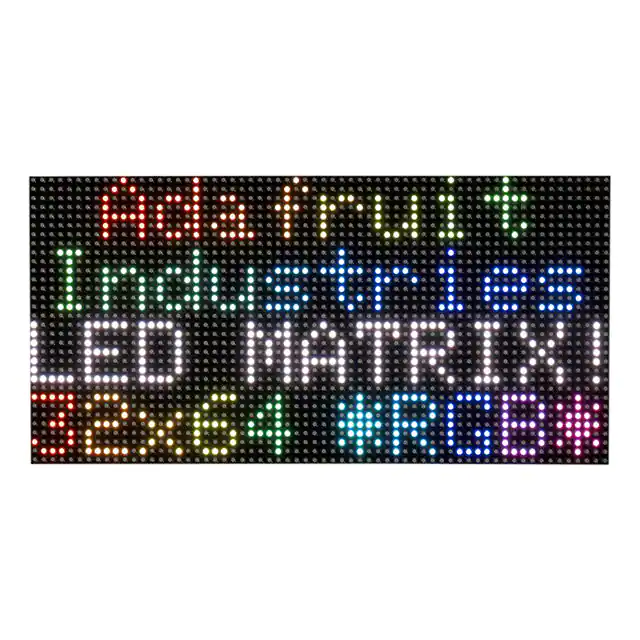

227764X32 RGB LED MATRIX - 5MM PITCH |
4,596 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | - | 12.50" L x 6.20" W x 0.60" H (317.50mm x 157.48mm x 15.24mm) | - |
|
HDSP-2533LED DISPLAY 5X7 8CHAR 5MM GREEN |
4,075 |
|
Datasheet |
HDSP-253x | Tube | Active | 7.5mcd | - | Green | 5 x 7 | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Parallel, 8-Bit |
|
HDSP-2502LED DISPLAY 5X7 8CHAR 7MM HE RED |
1,588 |
|
Datasheet |
HDSP-250x | Tube | Active | 7.5mcd | - | Red | 5 x 7 | - | 2.79" L x 0.76" W x 0.26" H (70.87mm x 19.41mm x 6.60mm) | Parallel, 8-Bit |
|

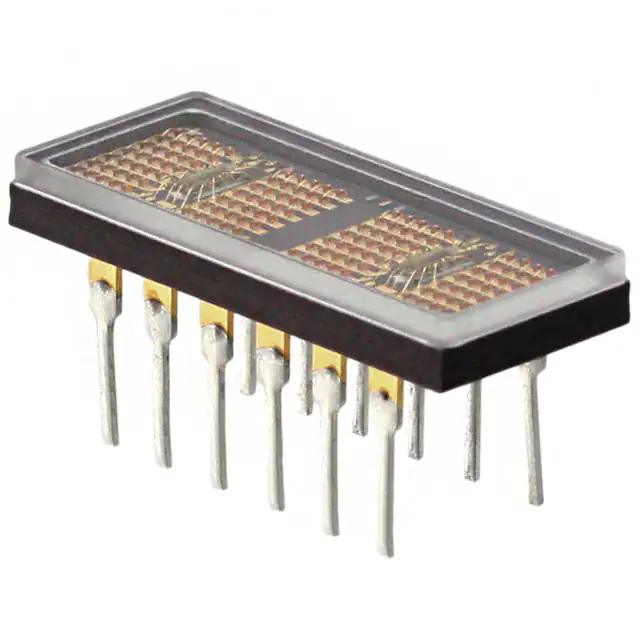

HCMS-2353LED DISPLAY 5X7 4CHAR 5MM GREEN |
2,718 |
|
Datasheet |
HCMS-235x | Bulk | Active | 3mcd | - | Green | 5 x 7 | - | 0.79" L x 0.33" W x 0.10" H (20.01mm x 8.43mm x 2.54mm) | Serial |
|
HDSP-2133DISPLAY 5X7 8DIGIT .2" 32DIP GRN |
3,823 |
|
Datasheet |
HCMS-213x | Tray | Active | 2.50mcd ~ 20.28mcd | - | Green | 5 x 7 | - | 1.68" L x 0.39" W x 0.24" H (42.72mm x 9.91mm x 6.10mm) | Parallel, 8-Bit |
|
TC12-11SURKWA1.2" 5X7 DOT MATRIX RED LED DISP |
1,964 |
|
Datasheet |
- | Bulk | Active | 130mcd | Common Cathode | Red | 5 x 7 | 1.85V | 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm) | - |
|
2974LED CHARLIEPLEXED MATRIX - 9X16 |
1,216 |
|
Datasheet |
- | Bulk | Active | - | - | White | 9 x 16 | - | 1.70" L x 1.10" W x 0.09" H (43.18mm x 27.94mm x 2.29mm) | I2C |
|
TC20-11SURKWALED MATRIX 5X7 2 630NM RED |
1,352 |
|
Datasheet |
- | Tube | Active | 130mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 1.95V | 2.09" L x 1.98" W x 0.33" H (53.10mm x 38.20mm x 8.50mm) | - |
|
|
2948LED CHARLIEPLEXED MATRIX - 9X16 |
2,102 |
|
Datasheet |
- | Bulk | Active | - | - | Yellow | 9 x 16 | - | 1.70" L x 1.10" W x 0.09" H (43.18mm x 27.94mm x 2.29mm) | I2C |
|
|
2973LED CHARLIEPLEXED MATRIX - 9X16 |
3,869 |
|
Datasheet |
- | Bulk | Active | - | - | Blue | 9 x 16 | - | 1.70" L x 1.10" W x 0.09" H (43.18mm x 27.94mm x 2.29mm) | I2C |
|

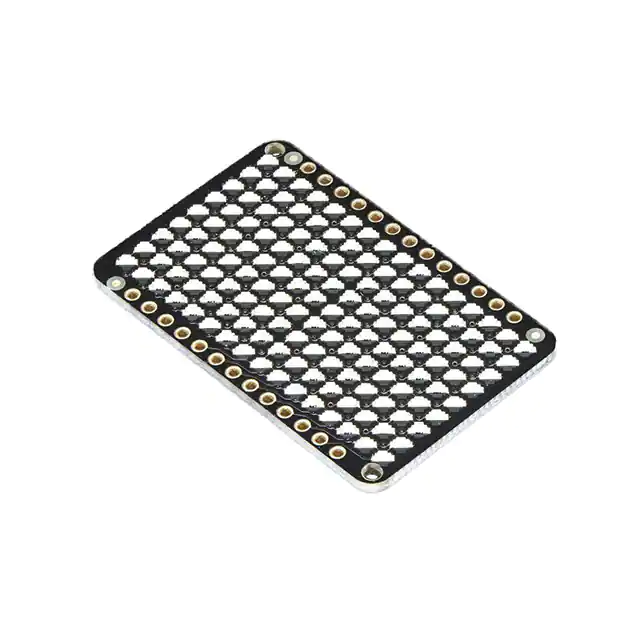

2947LED CHARLIEPLEXED MATRIX - 9X16 |
2,905 |
|
Datasheet |
- | Bulk | Active | - | - | Red | 9 x 16 | - | 1.70" L x 1.10" W x 0.09" H (43.18mm x 27.94mm x 2.29mm) | I2C |
|
|
2972LED CHARLIEPLEXED MATRIX - 9X16 |
2,919 |
|
Datasheet |
- | Bulk | Active | - | - | Green | 9 x 16 | - | 1.70" L x 1.10" W x 0.09" H (43.18mm x 27.94mm x 2.29mm) | I2C |
|
|
DFR0597FLEXIBLE RGB LED MATRIX 7X71 |
2,289 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 7 x 71 | 5V | 10.59" L x 1.18" W (269.00mm x 30.00mm) | Serial |
|

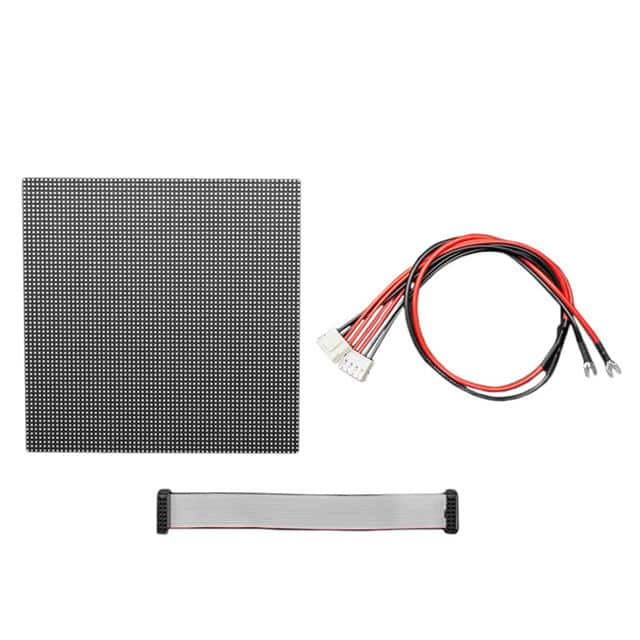

540764X64 RGB LED MATRIX PANEL WITH |
3,289 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 64 | - | 6.30" L x 6.30" W (160.00mm x 160.00mm) | - |
|
|
DFR059664X32 FLEXIBLE RGB LED MATRIX-5M |
2,690 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 12.60" L x 6.30" W (320.00mm x 160.00mm) | - |
|

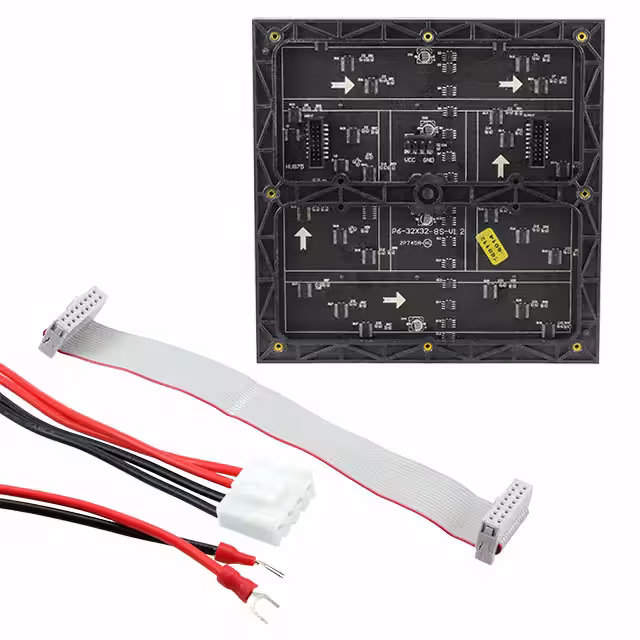

MIKROE-234732X32 RGB LED MATRIX PANEL - 6MM |
2,582 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 32 x 32 | - | - | - |
|

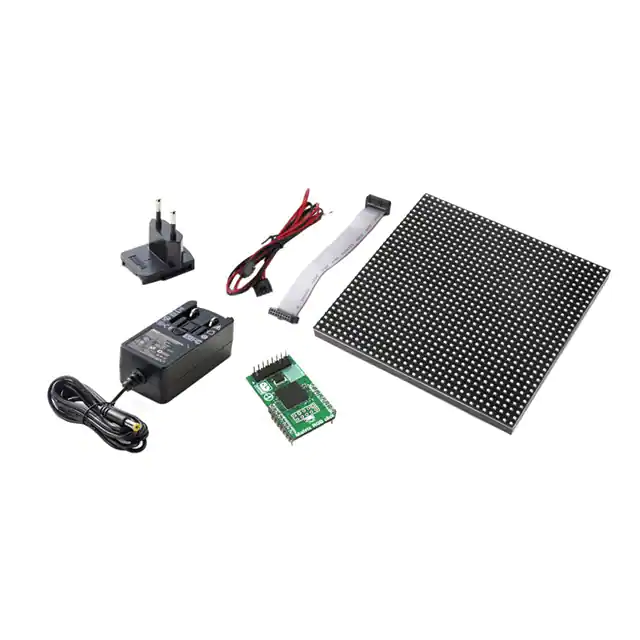

MIKROE-2346PANEL KIT MATRIX RGB |
3,843 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 32 x 32 | - | - | - |
|

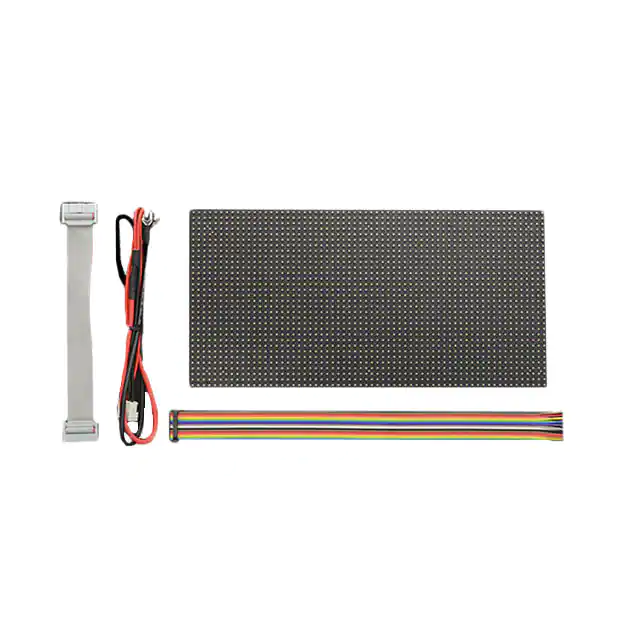

DFR059564X32 FLEXIBLE RGB LED MATRIX-4M |
2,468 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 10.08" L x 5.04" W (256.00mm x 128.00mm) | - |
|
HCMS-3903LED DISPLAY 5X7 4CHAR 3.8MM GRN |
2,839 |
|
Datasheet |
HCMS-39xx | Tube | Active | 252µcd | - | Green | 5 x 7 | - | 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm) | Serial |
|
|
LDM-6432-P3-UR-164X32 RGB LED DOT MTRX, 3MM PITC |
2,329 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 7.56" L x 3.78" W x 1.32" H (192.00mm x 96.00mm x 33.40mm) | ASCII, UART |
