LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTP-1057AHRDISPLAY DOT MATRX HER 1.2"5X7 |
2,262 |
|
Datasheet |
- | Tube | Active | 4mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | - |
|
|
GMC07R750.7" 5X7 DOT MATRIX ANODE ROW CA |
3,532 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07R750.7" 5X7 DOT MATRIX ANODE COLUMN |
1,875 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMC07S750.7" 5X7 DOT MATRIX ANODE ROW CA |
1,778 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 30mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07S750.7" 5X7 DOT MATRIX ANODE COLUMN |
2,268 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 30mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMC07Y750.7" 5X7 DOT MATRIX ANODE ROW CA |
1,005 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Anode Row, Common Cathode Column | Yellow | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07Y750.7" 5X7 DOT MATRIX ANODE COLUMN |
1,223 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Cathode Row, Common Anode Column | Yellow | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMC07O750.7" 5X7 DOT MATRIX ANODE ROW CA |
2,101 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Anode Row, Common Cathode Column | Orange | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07O750.7" 5X7 DOT MATRIX ANODE COLUMN |
1,834 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 60mcd | Common Cathode Row, Common Anode Column | Orange | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMC07AG750.7" 5X7 DOT MATRIX ANODE ROW CA |
1,870 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 20mcd | Common Anode Row, Common Cathode Column | Yellow-Green | 5 x 7 | 2.1V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07AG750.7" 5X7 DOT MATRIX ANODE COLUMN |
2,848 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 20mcd | Common Cathode Row, Common Anode Column | Yellow-Green | 5 x 7 | 2.1V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
M1002-NSURWA/S530-A3LED DISPLAY |
3,630 |
|
Datasheet |
- | Bulk | Active | 15mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 1.54" L x 0.90" W x 0.31" H (39.10mm x 22.80mm x 8.00mm) | - |
|
|
EADDM100RA2LED DISPLAY |
4,608 |
|
Datasheet |
- | Bulk | Active | 17.6mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 1.54" L x 0.90" W x 0.31" H (39.10mm x 22.80mm x 8.00mm) | - |
|
|
GMC8275CLED MATRIX CC 5X7 1.2" 660NM RED |
3,148 |
|
Datasheet |
- | - | Obsolete | 5mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 1.8V | 0.89" L x 1.25" W x 0.31" H (22.60mm x 31.80mm x 8.00mm) | - |
|
|
GMC07IG750.7" 5X7 DOT MATRIX ANODE ROW CA |
4,918 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 200mcd | Common Anode Row, Common Cathode Column | Green | 5 x 7 | 3.2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07IG750.7" 5X7 DOT MATRIX ANODE COLUMN |
2,146 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 200mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 3.2V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMC07IB750.7" 5X7 DOT MATRIX ANODE ROW CA |
2,976 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 130mcd | Common Anode Row, Common Cathode Column | Blue | 5 x 7 | 3V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
GMA07IB750.7" 5X7 DOT MATRIX ANODE COLUMN |
3,443 |
|
Datasheet |
GMz07xx75 | Bulk | Active | 130mcd | Common Cathode Row, Common Anode Column | Blue | 5 x 7 | 3V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
TC12-11EWALED MATRIX 5X7 1.2"627NM HER |
3,287 |
|
Datasheet |
- | Tube | Active | 14mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.90" L x 1.54" W x 0.32" H (22.90mm x 39.00mm x 8.00mm) | - |
|

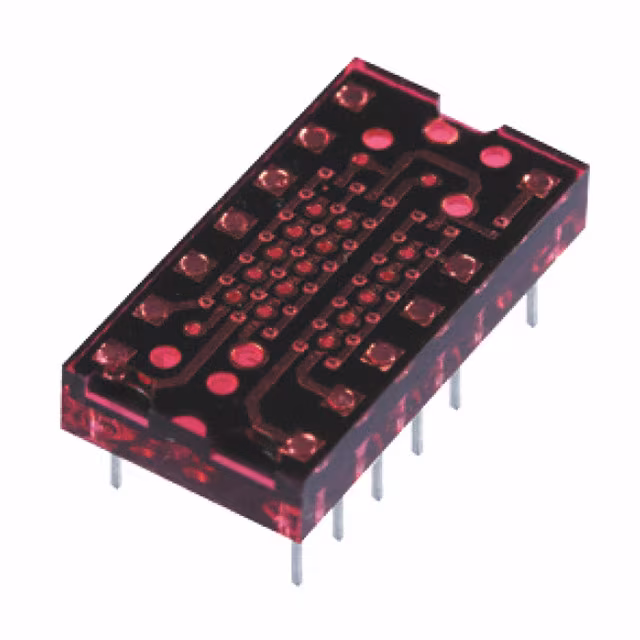

XMMR07CLED DOT MATRIX 5X7 0.3" RED CC |
1,108 |
|
Datasheet |
- | Tube | Obsolete | 7mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 1.8V | 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm) | - |
