LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1853SMALL 1.2 8X8 ULTRA BRIGHT SQUAR |
1,177 |
|
Datasheet |
- | Bulk | Active | - | - | Blue | 8 x 8 | - | 1.20" L x 1.20" W x 0.30" H (30.48mm x 30.48mm x 7.62mm) | I2C |
|
|
1857SMALL 1.2 8X8 ULTRA BRIGHT SQUAR |
2,241 |
|
Datasheet |
- | Bulk | Active | - | - | White | 8 x 8 | - | 1.20" L x 1.20" W x 0.30" H (30.48mm x 30.48mm x 7.62mm) | I2C |
|
HCMS-2911LED DISPLAY 5X7 8CHAR 3.8MM YLW |
2,849 |
|
Datasheet |
HCMS-29xx | Tube | Active | 64µcd | - | Yellow | 5 x 7 | - | 1.40" L x 0.40" W x 0.20" H (35.56mm x 10.16mm x 5.08mm) | Serial |
|
|
HCMS-2915LED DISPLAY 5X7 8CHAR .15" RED |
4,098 |
|
Datasheet |
HCMS-29xx | Tube | Active | 230µcd | - | Red | 5 x 7 | - | 1.40" L x 0.40" W x 0.20" H (35.56mm x 10.16mm x 5.08mm) | Serial |
|
HDSP-2132-IJ0005X7 SMARTDISP HIREL 8CHAR .2IN,R |
4,487 |
|
Datasheet |
- | Bulk | Active | 7.5mcd | - | Red | 5 x 7 | 5V | 1.68" L x 0.39" W x 0.24" H (42.72mm x 9.91mm x 6.10mm) | Parallel, 8-Bit |
|
|
HDSP-2133-JKD005X7 SMARTDISP HIREL 8CHAR .2IN,G |
1,731 |
|
Datasheet |
HCMS-213x | Bulk | Active | 7.5mcd | - | Green | 5 x 7 | 5V | 1.68" L x 0.39" W x 0.24" H (42.72mm x 9.91mm x 6.10mm) | Parallel, 8-Bit |
|
TA12-11SRWALED MATRIX 5X7 1.2" 660NM RED |
1,190 |
|
Datasheet |
- | Tube | Active | 45mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 1.85V | 0.90" L x 1.54" W x 0.32" H (22.90mm x 39.00mm x 8.00mm) | - |
|

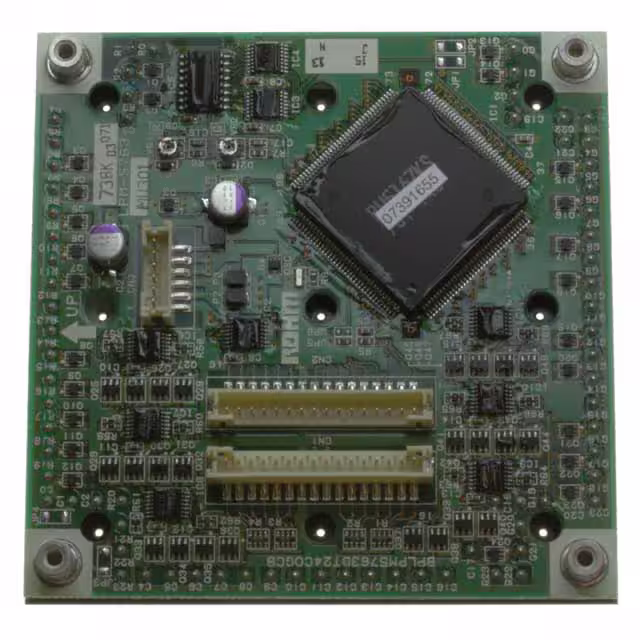

LPM-5763MU301LED DOT MTRX 24X24 RD, GRN, ORN |
4,188 |
|
Datasheet |
- | Bulk | Obsolete | - | - | Green, Red, Orange | 24 x 24 | - | 3.78" L x 3.78" W x 0.51" H (96.00mm x 96.00mm x 13.00mm) | - |
|
KWM-20881AVA0.80 INCH (20.0MM), RED 1.90MM |
100 |
|
Datasheet |
- | Bulk | Active | 60mcd | Common Anode Row | Red | 8 x 8 | 2V | 0.79" L x 0.79" W x 0.23" H (20.00mm x 20.00mm x 5.90mm) | - |
|
TC12-11SRWA1.2" 5X7 RED LED DISPLAY |
3,512 |
|
Datasheet |
- | Bulk | Active | 45mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 1.85V | 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm) | - |
|
KWM-181616AV1.57 INCH (40.0MM), RED 1.8MM 1 |
100 |
|
Datasheet |
- | Bulk | Active | 80mcd | Common Anode Row | Red | 16 x 16 | 2V | 1.57" L x 1.57" W x 0.07" H (40.00mm x 40.00mm x 1.80mm) | - |
|
HCMS-2965LED DISPLAY 5X7 4CHAR .2" RED |
1,342 |
|
Datasheet |
HCMS-29xx | Tube | Active | 230µcd | - | Red | 5 x 7 | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Serial |
|
HDLO-1414DISPLAY 5X7 0.15" 4CHAR RED |
4,368 |
|
Datasheet |
HDLx-1414 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Red | 5 x 7 | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | 7-Bit ASCII |
|
HDLG-2416LED DISPLAY 5X7 5MM 4CHAR GREEN |
4,814 |
|
Datasheet |
HDLx-2416 | Tube | Active | 5.6mcd | - | Green | 5 x 7 | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | 7-Bit ASCII |
|
HDLG-3416DISPLAY 5X7 0.27" 4CHAR GREEN |
1,968 |
|
Datasheet |
HDLx-3416 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Green | 5 x 7 | - | 1.29" L x 0.79" W x 0.34" H (32.77mm x 20.07mm x 8.64mm) | 7-Bit ASCII |
|
HDLU-1414DISPLAY 5X7 0.15" 4CHAR LOW PWR |
2,397 |
|
Datasheet |
HDLx-1414 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Red | 5 x 7 | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | 7-Bit ASCII |
|

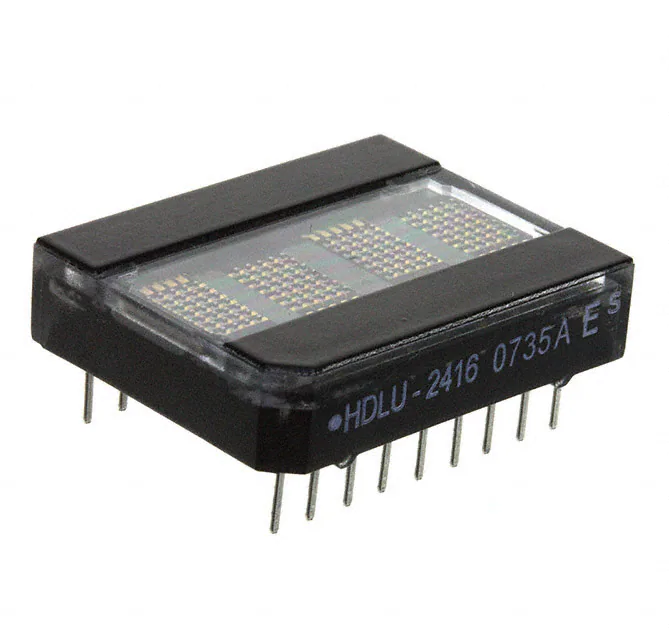

HDLU-2416LED DISPLAY 5X7 4CHAR 5MM RED |
1,082 |
|
Datasheet |
HDLx-2416 | Tube | Active | 1.20mcd ~ 13.30mcd | - | Red | 5 x 7 | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | 7-Bit ASCII |
|
HCMS-2973LED DISPLAY 5X7 8CHAR 5MM GREEN |
1,221 |
|
Datasheet |
HCMS-29xx | Tube | Active | 114µcd | - | Green | 5 x 7 | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.33mm) | Serial |
|

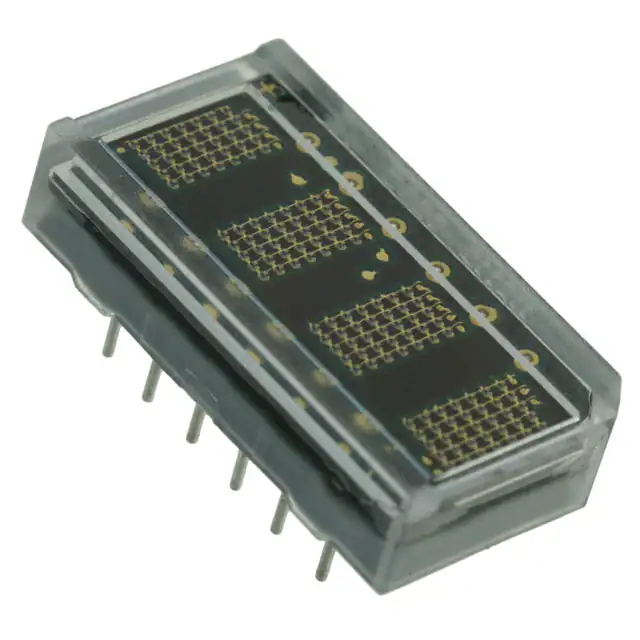

HCMS-3967LED DISPLAY 5X7 4CHAR 5MM GRN |
1,860 |
|
Datasheet |
HCMS-39xx | Tube | Active | 1mcd | - | Green | 5 x 7 | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Serial |
|
HCMS-3917LED DISPLAY 5X7 8CHAR 3.8MM GRN |
4,635 |
|
Datasheet |
HCMS-39xx | Tube | Active | 1mcd | - | Green | 5 x 7 | - | 1.40" L x 0.40" W x 0.20" H (35.56mm x 10.16mm x 5.08mm) | Serial |
