LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDM-6432-P5-BLE4-164X32 RGB LED DOT MTRX, 5MM PITC |
2,130 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 12.60" L x 6.30" W x 1.32" H (320.00mm x 160.00mm x 33.40mm) | ASCII, UART |
|
|
LDM-6432-P3-USB2-164X32 RGB LED DOT MTRX, 3MM PITC |
2,660 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 7.56" L x 3.78" W x 1.32" H (192.00mm x 96.00mm x 33.55mm) | ASCII, UART |
|
|
LDM-6432-P4-BLE4-164X32 RGB LED DOT MTRX, 4MM PITC |
1,912 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 10.08" L x 5.04" W x 1.32" H (256.00mm x 128.00mm x 33.40mm) | ASCII, UART |
|
|
LDM-6432-P3-BLE4-164X32 RGB LED DOT MTRX, 3MM PITC |
4,578 |
|
Datasheet |
- | Bulk | Active | - | - | Red, Green, Blue (RGB) | 64 x 32 | 5V | 7.56" L x 3.78" W x 1.32" H (192.00mm x 96.00mm x 33.55mm) | ASCII, UART |
|
3162LED CHARLIEPLEXED MATRIX - 9X16 |
4,519 |
|
Datasheet |
- | Bulk | Active | - | - | White, Warm | 9 x 16 | - | 1.70" L x 1.10" W x 0.1" H (43.30mm x 28.10mm x 2.40mm) | - |
|
HDLS-1414DISPLAY 5X7 0.15" 4CHAR SUN.VIEW |
4,157 |
|
Datasheet |
HDLx-1414 | Tube | Active | 3.97mcd ~ 36.49mcd | - | Red | 5 x 7 | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | 7-Bit ASCII |
|
10402014838MM 8*8 SQUARE MATRIX LED MATCH |
2,052 |
|
Datasheet |
- | Bulk | Obsolete | 55mcd | Common Anode | Green | 8 x 8 | 5V | 1.48" L x 1.48" W x 0.29" H (37.70mm x 37.70mm x 7.30mm) | I2C |
|
10402014938MM 8*8 SQUARE MATRIX LED MATCH |
4,788 |
|
Datasheet |
- | Bulk | Obsolete | 55mcd | Common Anode | Red | 8 x 8 | 5V | 1.48" L x 1.48" W x 0.29" H (37.70mm x 37.70mm x 7.30mm) | I2C |
|

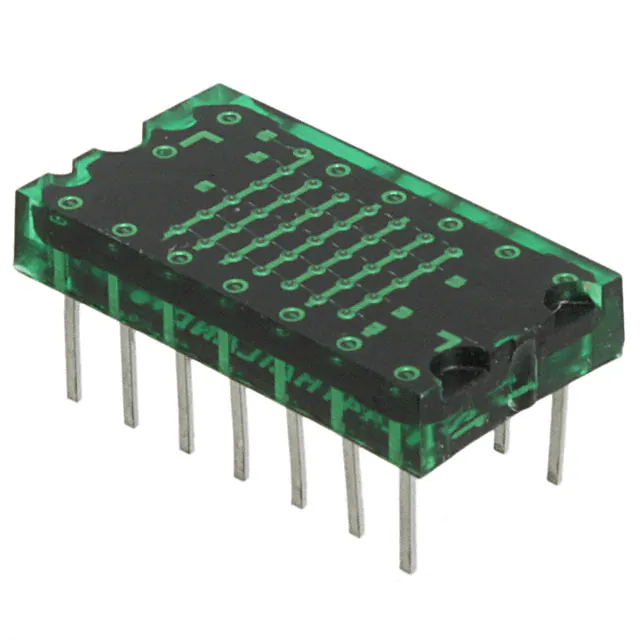

LTP-305GLED MATRIX 5X7 0.3" GREEN |
4,783 |
|
Datasheet |
- | Tube | Obsolete | 1.6mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.1V | 0.39" L x 0.73" W x 0.14" H (9.80mm x 18.50mm x 3.50mm) | - |
|
|
LTP-1057AGDISPLAY DOT MATRX GREEN 1.2"5X7 |
4,553 |
|
Datasheet |
- | Tube | Active | 4mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.1V | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | - |
|
10402015038MM 8*8 SQUARE MATRIX LED MATCH |
3,417 |
|
Datasheet |
- | Bulk | Obsolete | 55mcd | Common Anode | Blue | 8 x 8 | 5V | 1.48" L x 1.48" W x 0.29" H (37.70mm x 37.70mm x 7.30mm) | - |
|
|
EADDM070RA1LED DOT MATRIX RED 5X7 0.5" CRA |
2,426 |
|
Datasheet |
- | Tube | Active | 17.6mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.50" L x 0.70" W x 0.24" H (12.70mm x 17.70mm x 6.10mm) | - |
|
|
LTP-747GDISPLAY DOT MATRX GRN 0.70" 5X7 |
4,880 |
|
Datasheet |
LTP-747 | Tube | Active | 2mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.1V | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | - |
|
LTP-757KYLED MATRIX 5X7 0.7" AMBER-YELLOW |
4,124 |
|
Datasheet |
- | Tube | Active | 3.4mcd | Common Anode Row, Common Cathode Column | Amber-Yellow | 5 x 7 | 2.05V | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | - |
|
|
LTP-1557ACLED DISPLAY MATRIX RED 1.2 5X7 |
4,979 |
|
Datasheet |
- | Tube | Active | 12mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 1.8V | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | - |
|
10499002420MM 8X8 MATRIX LED RED |
3,525 |
|
Datasheet |
- | Bulk | Obsolete | 13mcd | Common Anode Row, Common Cathode Column | Red | 8 x 8 | 1.8V | 0.80" L x 0.80" W x 0.23" H (20.20mm x 20.20mm x 5.90mm) | - |
|
|
M701SURWA/S530-A3LED DISPLAY |
1,686 |
|
Datasheet |
- | Bulk | Active | 17.6mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.70" L x 0.50" W x 0.24" H (17.70mm x 12.70mm x 6.10mm) | - |
|
|
HDSP-703EDISPLAY DOT 5X7 HER CRC 0.68" |
4,858 |
|
Datasheet |
HDSP-70xE | Bulk | Active | 1.29mcd ~ 6.53mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2.05V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-711EDISPLAY DOT 5X7 HER CRA 0.68" |
2,233 |
|
Datasheet |
HDSP-71xE | Bulk | Active | 1.29mcd ~ 6.53mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2.05V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
|
|
HDSP-713EDISPLAY DOT 5X7 HER CRC 0.68" |
3,592 |
|
Datasheet |
HDSP-71xE | Bulk | Active | 1.29mcd ~ 6.53mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2.05V | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | - |
