Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRAMS06UP60B-2IC PWR MOD PLUG-N-DRIVE 600V 6A |
9,917 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 6 A | - | Through Hole |
|
STGIPL20K60MOD IPM 3PH INVERTER 38SDIP |
9,981 |
|
Datasheet |
SLLIMM™ | 38-PowerDIP Module (1.146", 29.10mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 20 A | - | Through Hole |
|
STIPQ3M60T-HLPOWER TRANSISTORS |
3,684 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (0.573", 14.50mm) | Tube | Active | MOSFET | 3 Phase Inverter | 600 V | 1500Vrms | - | 80 mA | - | Through Hole |
|
|
STGIB8CH60S-LSLLIMM 2ND SERIES IPM, 3-PHASE I |
2,154 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 12 A | - | Through Hole |
|
|
STGIB8CH60S-LZDISCRETE |
2,828 |
|
Datasheet |
SLLIMM - 2nd | 26-PowerDIP Module (1.146", 29.10mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 1600Vrms | - | 12 A | - | Through Hole |
|
FSB50650BSIPM 500V 2.5A |
5,677 |
|
Datasheet |
Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Obsolete | MOSFET | 3 Phase Inverter | 500 V | 1500Vrms | - | 4 A | - | Surface Mount |
|
|
IM111X6Q1BAUMA1CIPOS NANO PG-IQFN-37 |
9,902 |
|
Datasheet |
CIPOS™ | 39-PowerVQFN | Tape & Reel (TR) | Discontinued | MOSFET | H-Bridge | 600 V | 1500Vrms | Automotive | 12 A | AEC-Q100 | Surface Mount |
|
|
STIB1560DM2T-LZDISCRETE |
6,479 |
|
Datasheet |
SLLIMM - 2nd | 26-PowerDIP Module (1.146", 29.10mm) | Bulk | Active | MOSFET | 3 Phase Inverter | 600 V | 1500Vrms | - | 17 A | - | Through Hole |
|
|
STGIB15CH60S-XZDISCRETE |
8,690 |
|
Datasheet |
SLLIMM - 2nd | 26-PowerDIP Module (1.146", 29.10mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 1600Vrms | - | 20 A | - | Through Hole |
|
FCAS20DN60BBMODULE SPM FOR SRM 600V SPM20-BC |
6,013 |
|
Datasheet |
SPM® | 20-PowerSIP Module, Formed Leads | Tube | Obsolete | IGBT | 2 Phase | 600 V | 1500Vrms | - | 20 A | - | Through Hole |
|
|
AIP3N15A060Q4IPM3 |
9,995 |
|
Datasheet |
- | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 15 A | - | Through Hole |
|
|
AIP3N15A060Q4NIPM3 |
5,936 |
|
Datasheet |
- | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 15 A | - | Through Hole |
|
STGIPL14K60IGBT IPM MODULE 14A 600V 38SDIP |
5,696 |
|
Datasheet |
SLLIMM™ | 38-PowerDIP Module (1.146", 29.10mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 14 A | - | Through Hole |
|
|
FSB50760SFSMODULE SPM 600V 2A SPM5P-023 |
8,672 |
|
Datasheet |
Motion SPM® 5 SuperFET® | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Obsolete | MOSFET | 3 Phase | 600 V | 1500Vrms | - | 3.6 A | - | Surface Mount |
|
PS21961-4MOD IPM 600V 3A SUPERMINI DIP |
8,274 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 1500VDC | - | 3 A | - | Through Hole |
|
|
STGIB10CH60TS-ESLLIMM 2ND SERIES IPM, 3-PHASE I |
5,356 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.327", 33.70mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 15 A | - | Through Hole |
|
|
AIP3P15A060Q4NIPM3 |
7,956 |
|
Datasheet |
- | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
IRAMS10UP60B-2IC PWR MOD PLUG-N-DRIVE 600V 10A |
5,715 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
STGIB15CH60TS-ESLLIMM(TM) - 2ND SERIES IPM, 3-P |
2,705 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.327", 33.70mm) | Tube | Obsolete | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 20 A | - | Through Hole |
|

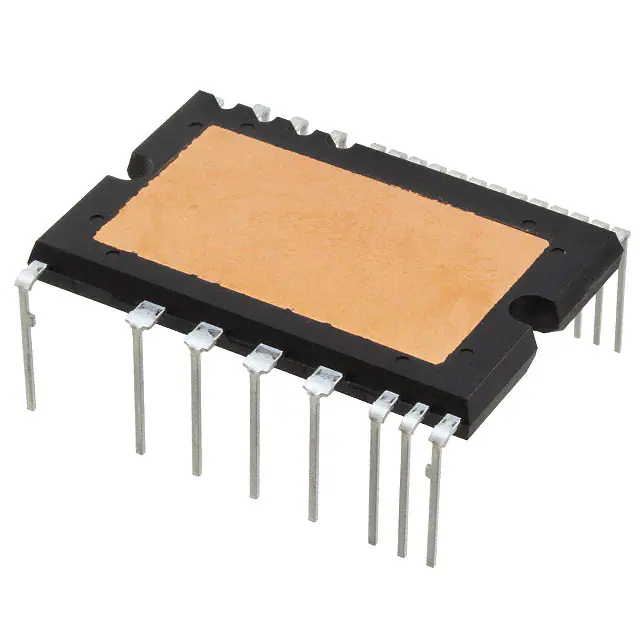

PSS10S92F6-AGMOD IPM 6-PAC 10A 600V DIP |
2,383 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued | IGBT | 3 Phase | 600 V | 1500Vrms | - | 10 A | - | Through Hole |
