Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGIB15CH60S-EPTD HIGH VOLTAGE |
9,798 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 20 A | - | Through Hole |
|
|
FSAM15SH60IC SMART POWER MOD 15A SPM32-AA |
7,840 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
FSBS10SH60IC SMART POWER MOD 10A SPM27-BA |
7,810 |
|
Datasheet |
SPM® | Power Module | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
|
STIB1560DM2-LPTD HIGH VOLTAGE |
5,529 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | MOSFET | 3 Phase Inverter | 600 V | 1500Vrms | - | 15 A | - | Through Hole |
|
|
AIP3P15A060Q4IPM3 |
2,217 |
|
Datasheet |
- | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 15 A | - | Through Hole |
|
|
AIP3P15A060Q4TIPM3 |
8,499 |
|
Datasheet |
- | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 15 A | - | Through Hole |
|
IRAM136-0760A2IC MOD PWR HYBRID 600V 5A MOTOR |
9,843 |
|
Datasheet |
- | 29-PowerSSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 5 A | - | Through Hole |
|
FSAM10SH60IC SMART POWER MOD 10A SPM32-AA |
5,719 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
IRAMS10UP60B-3IC PWR MOD PLUG-N-DRIVE 600V 10A |
5,067 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
|
IRAMS10UP60B-4IC PWR MOD PLUG-N-DRIVE 600V 10A |
6,179 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
STGIB10CH60TS-XSLLIMM 2ND SERIES IPM, 3-PHASE I |
5,694 |
|
Datasheet |
SLLIMM™ | 26-PowerDIP Module (1.146", 29.10mm) | Tube | Discontinued | IGBT | 3 Phase Inverter | 600 V | 1500Vrms | - | 15 A | - | Through Hole |
|

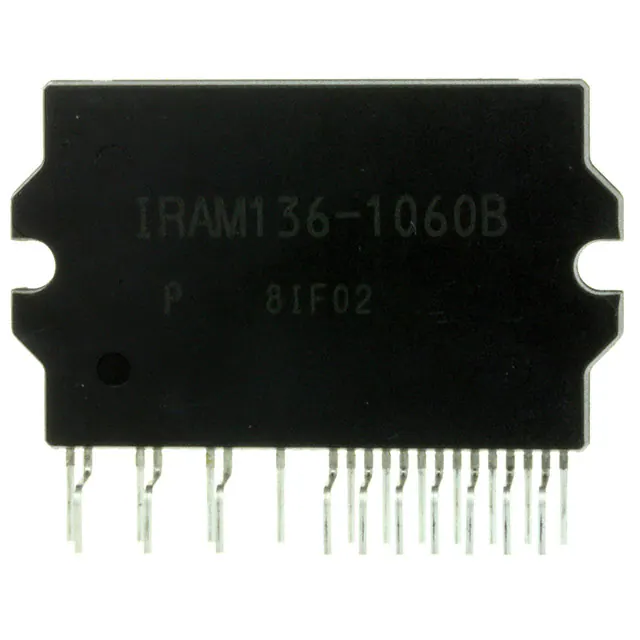

IRAM136-1060BIC HYBRID PWR 10A 600V ADV SIP05 |
7,933 |
|
Datasheet |
iMOTION™ | 29-PowerSSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
STGIPL30C60-HMOD IPM SLLIMM 8PHASE 38SDIP |
4,585 |
|
Datasheet |
SLLIMM™ | 38-PowerDIP Module (1.146", 29.10mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|

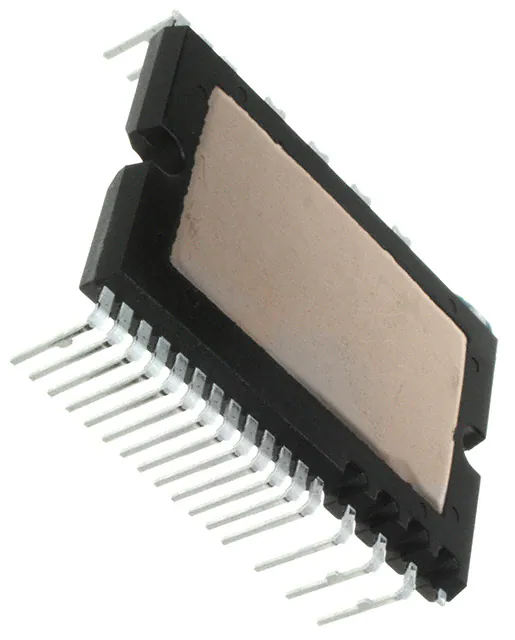

PS21962-4MOD IPM 600V 5A SUPERMINI DIP |
5,125 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.134", 28.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 1500VDC | - | 5 A | - | Through Hole |
|
|
PS21962-4CMOD IPM 600V 5A SUPERMINIDIP |
9,872 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 5 A | - | Through Hole |
|
|
PS21962-4SMOD IPM 600V 5A SUPERMINIDIP |
7,984 |
|
Datasheet |
Intellimod™ | 25-PowerDIP Module (1.311", 33.30mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 1500VDC | - | 5 A | - | Through Hole |
|
PSS15S92F6-AGMOD IPM 6-PAC 15A 600V DIP |
8,304 |
|
Datasheet |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tray | Discontinued | IGBT | 3 Phase | 600 V | 1500Vrms | - | 15 A | - | Through Hole |
|
|
PS21562-PMOD IPM 600V 5A MINI DIP |
7,569 |
|
Datasheet |
Intellimod™ | 35-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 5 A | - | Through Hole |
|
|
PS21562-SPMOD IPM 600V 5A MINI DIP |
2,934 |
|
Datasheet |
Intellimod™ | 37-PowerDIP Module (1.370", 34.80mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 5 A | - | Through Hole |
|
|
FNB33060T6SFNB33060T6S |
5,963 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
